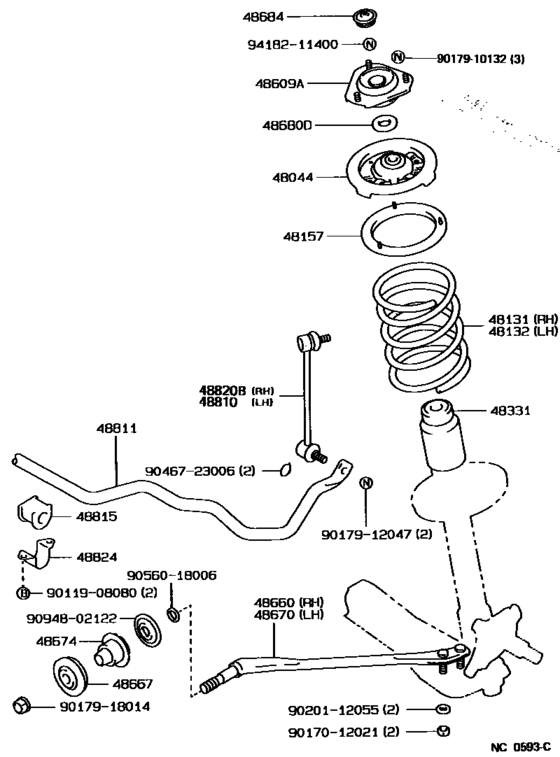

Front Spring & Shock Absorber ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-22050
Seat Sub- Assy, Front Spring, No.1
[08.1988 - 07.1992] MX83 |
48044-22050 |
— | ||
|
48131
|
48131
48131-2A530 Spring, Front Coil, RhFRONT COIL, RH [08.1988 - 08.1990] MX83 |
48131-2A530 |
US $174.72 |
||
|
48131
|
48131
48131-2A750 Spring, Front Coil, Lh[08.1990 - 07.1992] MX83 |
48131-2A750 |
US $145.60 |
||
|
48132
|
48132
48131-2A540 Spring, Front Coil, LhFRONT COIL, LH [08.1988 - 08.1990] MX83 |
48131-2A540 |
US $180.54 |
||
|
48132
|
48132
48131-2A760 Spring, Front Coil, Rh[08.1990 - 07.1992] MX83 |
48131-2A760 |
US $149.97 |
||
|
48157
|
48157
48157-22030
Insulator, Front Coil Spring, Upper
[08.1988 - 08.1989] MX83 |
48157-22030 |
— | ||
| replacement | |||||
|
48157
|
48157
48157-22031 Insulator, Front Coil Spring, Upper[08.1988 - 08.1989] MX83 |
48157-22031 |
US $23.71 |
||
|
48157
|
48157
48157-22031 Insulator, Front Coil Spring, Upper[08.1989 - 07.1992] MX83 |
48157-22031 |
US $23.71 |
||
|
48331
|
48331
48331-14020 Bumper, Front Spring, No.1[08.1988 - 08.1990] MX83 |
48331-14020 |
US $16 |
||
|
48331
|
48331
48331-22050
Bumper, Front Spring, No.1
[08.1990 - 07.1992] MX83 |
48331-22050 |
— | ||
|
48609A
|
48609A
48609-22070 Support Sub-Assy, Front Suspension[08.1988 - 07.1992] MX83 |
48609-22070 |
from US $72.50 |
||
|
48660
|
48660
48660-22080 Bar Assy, Strut, Rh[08.1988 - 07.1992] MX83 |
48660-22080 |
US $62.90 |
||
|
48667
|
48667
48667-22020 Retainer, Strut Bar[08.1990 - 07.1992] MX83 |
48667-22020 |
from US $9.13 |
||
|
48670
|
48670
48670-22080 Bar Assy, Strut, Lh[08.1988 - 07.1992] MX83 |
48670-22080 |
US $63.04 |
||
|
48674
|
48674
48674-22120
Cushion, Strut Bar
[08.1990 - 07.1992] MX83 |
48674-22120 |
— | ||
| replacement | |||||
|
48674
|
48674
48674-22141 Cushion, Strut Bar[08.1990 - 07.1992] MX83 |
48674-22141 |
US $20.97 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[08.1988 - 07.1992] MX83 |
90303-22049 |
from US $3.47 |
||
|
48684
|
48684
48684-14020 Cover, Bearing Dust[08.1988 - 07.1992] MX83 |
48684-14020 |
US $3.68 |
||
|
48810
|
48810
48810-22010
Link Assy, Front Stabilizer, Lh
[08.1988 - 07.1992] MX83 |
48810-22010 |
— | ||
| replacement | |||||
|
48810
|
48810
48810-22011 Link Assy, Front Stabilizer, Lh[08.1988 - 07.1992] MX83 |
48810-22011 |
US $102.12 |
||
|
48811
|
48811
48811-22340 Bar, Stabilizer, Front[08.1988 - 07.1992] MX83 |
48811-22340 |
US $168.90 |
||
|
48815
|
48815
48815-22120 Bush, Front Stabilizer Bar, No.1[08.1988 - 07.1992] MX83 |
48815-22120 |
from US $12.93 |
||
|
48820B
|
48820B
48820-22010
Link Assy, Front Stabilizer, Rh
[08.1988 - 07.1992] MX83 |
48820-22010 |
— | ||
| replacement | |||||
|
48820B
|
48820B
48820-22011 Link Assy, Front Stabilizer, Rh[08.1988 - 07.1992] MX83 |
48820-22011 |
US $102.12 |
||
|
48824
|
48824
48824-22060
Bracket, Stabilizer, Front
[08.1988 - 07.1992] MX83 |
48824-22060 |
— | ||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.44 |
||
|
9017012021
|
9017012021
90170-12021 NUT, HEXAGON |
90170-12021 |
from US $1.11 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9017912047
|
9017912047
90179-12047 Nut(For Front Stabilizer Link) |
90179-12047 |
from US $1.21 |
||
|
9017918014
|
9017918014
90179-18014 Nut(For Strut Bar) |
90179-18014 |
US $5.12 |
||
|
9020112055
|
9020112055
90201-12055 New Genuine Part |
90201-12055 |
US $3.52 |
||
|
9046723006
|
9046723006
90467-23006 New Genuine Part |
90467-23006 |
US $2.33 |
||
|
9056018006
|
9056018006
90560-18006
Spacer(For Strut Bar Cushion)
|
90560-18006 |
— | ||
|
9094802122
|
9094802122
90948-02122 RETAINER CUSHION |
90948-02122 |
from US $4.37 |
||
|
9418211400
|
9418211400
94182-11400 Nut(For Idler Arm Support) |
94182-11400 |
US $4.96 |
||
