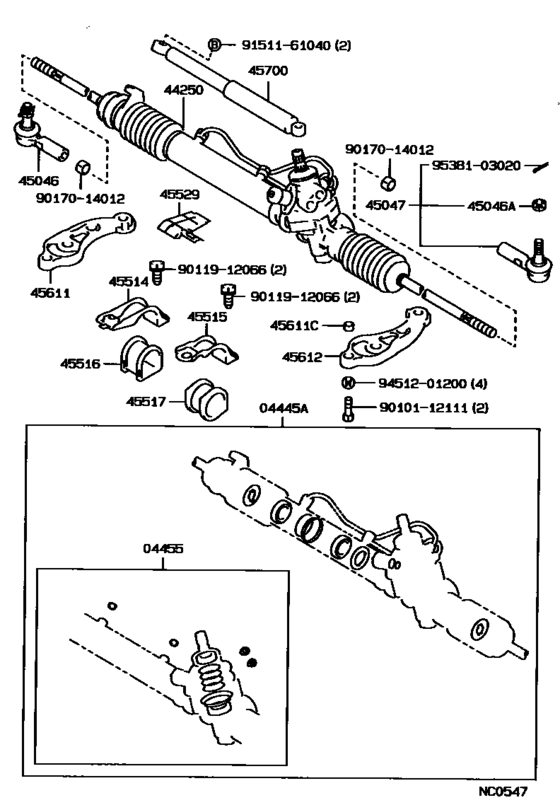

Front Steering Gear & Link ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-22120 Gasket Kit, Power Steering Gear(For Rack & Pinion)POWER STEERING GEAR(FOR RACK & PINION) [08.1988 - 08.1990] MX83 |
04445-22120 |
US $84.45 |
||
|
04445A
|
04445A
04445-22140 Gasket Kit, Power Steering Gear(For Rack & Pinion)POWER STEERING GEAR(FOR RACK & PINION) [08.1990 - 07.1992] MX83 |
04445-22140 |
US $82.99 |
||
|
04455
|
04455
04455-22070 Gasket Kit, Power Steering Control Valve Overhole[08.1988 - 04.1991] MX83 |
04455-22070 |
US $42.08 |
||
| replacement | |||||
|
04455
|
04455
04455-22071 Gasket Kit, Power Steering Control Valve Overhole[08.1988 - 04.1991] MX83 |
04455-22071 |
US $41.64 |
||
|
04455
|
04455
04455-22071 Gasket Kit, Power Steering Control Valve Overhole[04.1991 - 07.1992] MX83 |
04455-22071 |
US $41.64 |
||
|
44250
|
44250
44250-22231 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [08.1988 - 08.1990] MX83 |
44250-22231 |
US $1,688.96 |
||
|
44250
|
44250
44250-22232 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [08.1990 - 07.1992] MX83 |
44250-22232 |
US $1,659.84 |
||
|
45046
|
45046
45046-29205 End Sub-Assy, Tie Rod, Rh[08.1988 - 07.1992] MX83 |
45046-29205 |
US $47.61 |
||
| replacement | |||||
|
45046
|
45046
45046-29555 End Sub-Assy, Tie Rod, Rh[08.1988 - 07.1992] MX83 |
45046-29555 |
US $44.69 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1988 - 07.1992] MX83 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-29205 End Sub-Assy, Tie Rod, Rh[08.1988 - 07.1992] MX83 |
45046-29205 |
US $47.61 |
||
| replacement | |||||
|
45047
|
45047
45046-29555 End Sub-Assy, Tie Rod, Rh[08.1988 - 07.1992] MX83 |
45046-29555 |
US $44.69 |
||
|
45514
|
45514
45514-22100 Bracket, Steering Rack Housing, No.1STEERING RACK HOUSING, NO.1 [08.1988 - 07.1992] MX83 |
45514-22100 |
US $20.24 |
||
|
45515
|
45515
45515-22080 Bracket, Steering Rack Housing, No.2STEERING RACK HOUSING, NO.2 [08.1988 - 07.1992] MX83..USA CARIFORNIA SPEC |
45515-22080 |
US $14.71 |
||
|
45515
|
45515
45515-22100 Bracket, Steering Rack Housing, No.2[08.1988 - 07.1992] MX83 |
45515-22100 |
US $15.04 |
||
|
45516
|
45516
45516-22010 Grommet, Steering Rack Housing, No.1[08.1988 - 08.1990] MX83 |
45516-22010 |
US $13.92 |
||
|
45516
|
45516
45516-22011 Grommet, Steering Rack Housing, No.1[08.1990 - 07.1992] MX83 |
45516-22011 |
US $14.72 |
||
|
45517
|
45517
45517-22030
Grommet, Steering Rack Housing, No.2
[08.1988 - 08.1990] MX83 |
45517-22030 |
— | ||
| replacement | |||||
|
45517
|
45517
45517-22031 Grommet, Steering Rack Housing, No.2[08.1988 - 08.1990] MX83 |
45517-22031 |
US $14.56 |
||
|
45517
|
45517
45517-22031 Grommet, Steering Rack Housing, No.2[08.1990 - 07.1992] MX83 |
45517-22031 |
US $14.56 |
||
|
45529
|
45529
45529-22010 Insulator, Steering Rack Boot HeatSTEERING RACK BOOT HEAT [08.1988 - 07.1992] MX83..USA CARIFORNIA SPEC |
45529-22010 |
US $18.93 |
||
|
45611
|
45611
45611-22110 Arm, Steering Knuckle, Rh[08.1988 - 10.1990] MX83 |
45611-22110 |
US $75.71 |
||
| replacement | |||||
|
45611
|
45611
45611-22111 Arm, Steering Knuckle, Rh[08.1988 - 10.1990] MX83 |
45611-22111 |
US $74.26 |
||
|
45611
|
45611
45611-22111 Arm, Steering Knuckle, Rh[10.1990 - 07.1992] MX83 |
45611-22111 |
US $74.26 |
||
|
45611C
|
45611C
90253-15016 Pin, Straight(For End Plate)[11.1991 - 07.1992] MX83 |
90253-15016 |
from US $1.54 |
||
|
45612
|
45612
45612-22110 Arm, Steering Knuckle, Lh[08.1988 - 10.1990] MX83 |
45612-22110 |
US $75.71 |
||
| replacement | |||||
|
45612
|
45612
45612-22111 Arm, Steering Knuckle, Lh[08.1988 - 10.1990] MX83 |
45612-22111 |
US $74.26 |
||
|
45612
|
45612
45612-22111 Arm, Steering Knuckle, Lh[10.1990 - 07.1992] MX83 |
45612-22111 |
US $74.26 |
||
|
45700
|
45700
45700-22010
Damper Assy, Steering
[08.1988 - 07.1992] MX83 |
45700-22010 |
— | ||
|
9010112111
|
9010112111
90101-12111 Bolt, Hexagon(For Steering Knuckle To Shock Absorber) |
90101-12111 |
US $3.52 |
||
|
9011912066
|
9011912066
90119-12066
New Genuine Part
|
90119-12066 |
— | ||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
