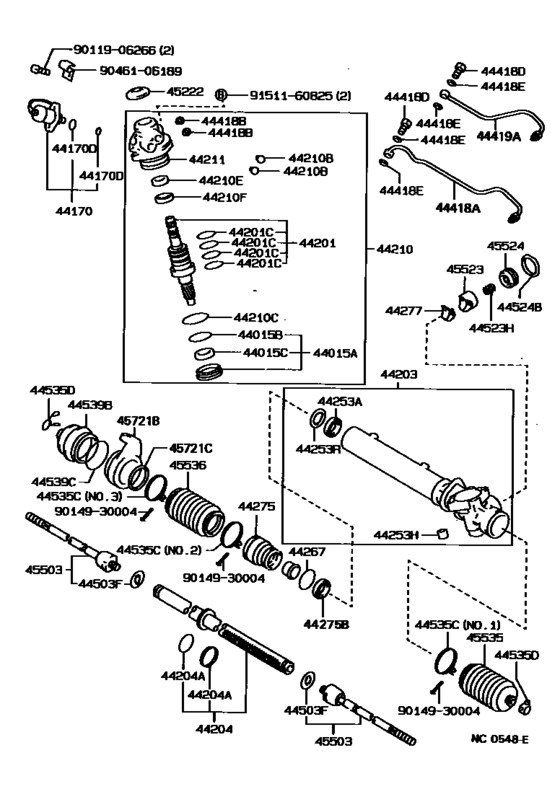

Front Steering Gear & Link ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44015A
|
44015A
44015-22020 Nut Sub-Assy, Bearing Guide[08.1988 - 07.1992] MX83 |
44015-22020 |
US $96.10 |
||
|
44015B
|
44015B
90301-43002 Ring, O(For Bearing Guide Nut)[08.1988 - 07.1992] MX83 |
90301-43002 |
from US $3.84 |
||
|
44015C
|
44015C
90310-25004 Seal, Oil(For Bearing Guide Nut)[04.1992 - 07.1992] MX83 |
90310-25004 |
from US $2.88 |
||
|
44015C
|
44015C
90310-25020 Seal, Oil(For Bearing Guide Nut)[08.1988 - 04.1992] MX83 |
90310-25020 |
US $2.62 |
||
| replacement | |||||
|
44015C
|
44015C
90310-25004 Seal, Oil(For Bearing Guide Nut)[08.1988 - 04.1992] MX83 |
90310-25004 |
from US $2.88 |
||
|
44170
|
44170
44170-22070 Valve Assy, Solenoid(For Power Steering)SOLENOID(FOR POWER STEERING) [08.1988 - 07.1992] MX83 |
44170-22070 |
US $524.16 |
||
|
44170D
|
44170D
90301-06179
Ring, O(For Power Steering Solenoid Valve)
[08.1988 - 07.1992] MX83 INNER |
90301-06179 |
— | ||
|
44170D
|
44170D
96711-19021 Ring, O(For Power Steering Solenoid Valve)[08.1988 - 07.1992] MX83 OUTER |
96711-19021 |
from US $2.30 |
||
|
44201
|
44201
44201-22110 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1988 - 08.1990] MX83 |
44201-22110 |
US $297.02 |
||
|
44201
|
44201
44201-22140 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1990 - 07.1992] MX83 |
44201-22140 |
US $292.66 |
||
|
44201C
|
44201C
90562-33007 Ring(For Power Steering Control Valve)[08.1988 - 07.1992] MX83 |
90562-33007 |
US $1.76 |
||
|
44203
|
44203
44203-22100 Housing Sub-Assy, Power Steering RackPOWER STEERING RACK [08.1988 - 07.1992] MX83 |
44203-22100 |
US $527.07 |
||
|
44204
|
44204
44204-22041 Rack Sub-Assy, Power SteeringPOWER STEERING [08.1988 - 07.1992] MX83 |
44204-22041 |
from US $160.62 |
||
|
44204A
|
44204A
90301-37007 Ring(For Rack Steering Piston)[08.1988 - 07.1992] MX83 INNER |
90301-37007 |
US $3.84 |
||
|
44204A
|
44204A
90562-41001 Ring(For Rack Steering Piston)[08.1988 - 07.1992] MX83 OUTER |
90562-41001 |
from US $2.08 |
||
|
44210
|
44210
44210-22150 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [08.1988 - 08.1990] MX83 |
44210-22150 |
US $564.93 |
||
|
44210
|
44210
44210-22180 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [08.1990 - 07.1992] MX83 |
44210-22180 |
US $560.56 |
||
|
44210B
|
44210B
90410-06005 Seat, Union(Pressure Control Valve Assy)[08.1988 - 07.1992] MX83 |
90410-06005 |
US $2.56 |
||
|
44210C
|
44210C
90301-51001 Ring, O(For Adjuster Plug)[08.1988 - 07.1992] MX83 |
90301-51001 |
from US $2.26 |
||
|
44210E
|
44210E
90311-19002 Seal, Oil(For Adjuster Plug)[08.1988 - 07.1992] MX83 |
90311-19002 |
from US $3.04 |
||
|
44210F
|
44210F
90363-19003 Bearing(For Rear Steering Control Valve Housing)[08.1988 - 07.1992] MX83 |
90363-19003 |
US $18.85 |
||
|
44211
|
44211
44211-22040 Housing, Control ValveCONTROL VALVE [08.1988 - 07.1992] MX83 |
44211-22040 |
US $132.50 |
||
|
44253A
|
44253A
90310-26008 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1988 - 07.1992] MX83 |
90310-26008 |
US $3.93 |
||
| replacement | |||||
|
44253A
|
44253A
90310-26018 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1988 - 07.1992] MX83 |
90310-26018 |
from US $4.32 |
||
|
44253H
|
44253H
90364-13003 Bearing(For Power Steering Control Valve Lower)[08.1988 - 07.1992] MX83 |
90364-13003 |
from US $8.04 |
||
|
44253R
|
44253R
90560-27013 Spacer, No.1(For Power Steering Cylinder Tube)[08.1988 - 07.1992] MX83 |
90560-27013 |
US $3.03 |
||
|
44267
|
44267
44267-22020 Guide, Rack End[08.1988 - 07.1992] MX83 |
44267-22020 |
from US $2.50 |
||
|
44275
|
44275
44275-22030 Stopper, Cylinder End[08.1988 - 07.1992] MX83 |
44275-22030 |
US $28.39 |
||
|
44275B
|
44275B
90310-26008 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1988 - 07.1992] MX83 |
90310-26008 |
US $3.93 |
||
| replacement | |||||
|
44275B
|
44275B
90310-26018 Seal, Oil, No.1(For Power Steering Cylinder Tube)[08.1988 - 07.1992] MX83 |
90310-26018 |
from US $4.32 |
||
|
44277
|
44277
44277-22010 Seat, Rack Guide[08.1988 - 07.1992] MX83 |
44277-22010 |
from US $3.76 |
||
|
44418A
|
44418A
44418-22120 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [08.1988 - 07.1992] MX83 |
44418-22120 |
US $23 |
||
|
44418B
|
44418B
90410-04001 Seat, Union(For Steering Turn Pressure Tube)[08.1988 - 07.1992] MX83 |
90410-04001 |
US $2.72 |
||
|
44418D
|
44418D
90401-10021 Bolt, Union(For Steering Turn Pressure Tube)[08.1988 - 07.1992] MX83 |
90401-10021 |
US $4.02 |
||
|
44418E
|
44418E
90430-10008 Gasket(For Steering Turn Pressure Tube)[08.1988 - 07.1992] MX83 |
90430-10008 |
US $2.72 |
||
|
44419A
|
44419A
44419-22120 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [08.1988 - 07.1992] MX83 |
44419-22120 |
US $15.87 |
||
|
44503F
|
44503F
90214-14007 Washer, Claw(For Power Steering Rack End)[08.1988 - 07.1992] MX83 |
90214-14007 |
from US $1.46 |
||
|
44523H
|
44523H
90501-23024 Spring(For Power Steering Rack Guide)[08.1988 - 08.1991] MX83 |
90501-23024 |
US $1.31 |
||
|
44523H
|
44523H
90501-26074 Spring(For Power Steering Rack Guide)[08.1991 - 07.1992] MX83 |
90501-26074 |
US $1.40 |
||
|
44524B
|
44524B
90179-36002 Nut(For Power Steering Pinion Cap)[08.1988 - 07.1992] MX83 |
90179-36002 |
US $4.89 |
||
|
44535C
|
44535C
90460-49002 Clamp(For Power Steering Rack Boot)[08.1988 - 07.1992] MX83 NO.1 |
90460-49002 |
US $4.80 |
||
|
44535C
|
44535C
90460-52001 Clamp(For Power Steering Rack Boot)[08.1988 - 07.1992] MX83 NO.2 |
90460-52001 |
US $6.40 |
||
|
44535C
|
44535C
90460-73002 Clamp, Hose[08.1988 - 07.1992] MX83 NO.3 |
90460-73002 |
US $6.64 |
||
|
44535D
|
44535D
90467-18003 Clip Or Clamp(For Ventilation Hose)[08.1988 - 07.1992] MX83 LH |
90467-18003 |
from US $1.92 |
||
|
44535D
|
44535D
90467-19012
Clip
[08.1988 - 07.1992] MX83 RH |
90467-19012 |
— | ||
| replacement | |||||
|
44535D
|
44535D
90467-19019 Clip[08.1988 - 07.1992] MX83 RH |
90467-19019 |
from US $4.25 |
||
|
44539B
|
44539B
45539-22010 Seal, Rack End Dust(For Power Steering)[08.1988 - 07.1992] MX83 |
45539-22010 |
US $13.92 |
||
|
44539C
|
44539C
90522-57001
Ring, Set(For Power Steering Rack End Dust Seal)
[08.1988 - 07.1992] MX83 |
90522-57001 |
— | ||
|
45222
|
45222
45222-32010 Cover, Dust(For Power Steering Gear)[08.1988 - 07.1992] MX83 |
45222-32010 |
from US $5.15 |
||
|
45503
|
45503
45503-29195 End Sub-Assy, Steering Rack[08.1988 - 08.1990] MX83 LH |
45503-29195 |
US $88.82 |
||
| replacement | |||||
|
45503
|
45503
45503-29315 End Sub-Assy, Steering Rack[08.1988 - 08.1990] MX83 LH |
45503-29315 |
US $88.82 |
||
|
45503
|
45503
45503-29205 End Sub-Assy, Steering Rack[08.1988 - 08.1990] MX83 RH |
45503-29205 |
US $96.10 |
||
| replacement | |||||
|
45503
|
45503
45503-29325 End Sub-Assy, Steering Rack[08.1988 - 08.1990] MX83 RH |
45503-29325 |
US $96.10 |
||
|
45503
|
45503
45503-29315 End Sub-Assy, Steering Rack[08.1990 - 07.1992] MX83 LH |
45503-29315 |
US $88.82 |
||
|
45503
|
45503
45503-29325 End Sub-Assy, Steering Rack[08.1990 - 07.1992] MX83 RH |
45503-29325 |
US $96.10 |
||
|
45523
|
45523
45523-22030 Guide, Rack(For Steering Gear)[08.1988 - 07.1992] MX83 |
45523-22030 |
US $15.14 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[08.1988 - 07.1992] MX83 |
45524-16010 |
US $8.91 |
||
|
45535
|
45535
45535-22080 Boot, Steering Rack, No.1[08.1988 - 07.1992] MX83 |
45535-22080 |
from US $14.51 |
||
|
45536
|
45536
45535-22090
Boot, Steering Rack, No.2
[08.1988 - 07.1992] MX83 |
45535-22090 |
— | ||
|
45721B
|
45721B
45721-22030 Bracket, Steering Damper, No.3[08.1988 - 07.1992] MX83 |
45721-22030 |
US $24.61 |
||
|
45721C
|
45721C
90179-40003
Nut(For Steering Damper Bracket)
[08.1988 - 07.1992] MX83 |
90179-40003 |
— | ||
|
9011906266
|
9011906266
90119-06266 New Genuine Part |
90119-06266 |
US $1.60 |
||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9046106189
|
9046106189
90461-06189 New Genuine Part |
90461-06189 |
US $2.33 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $2.24 |
||
