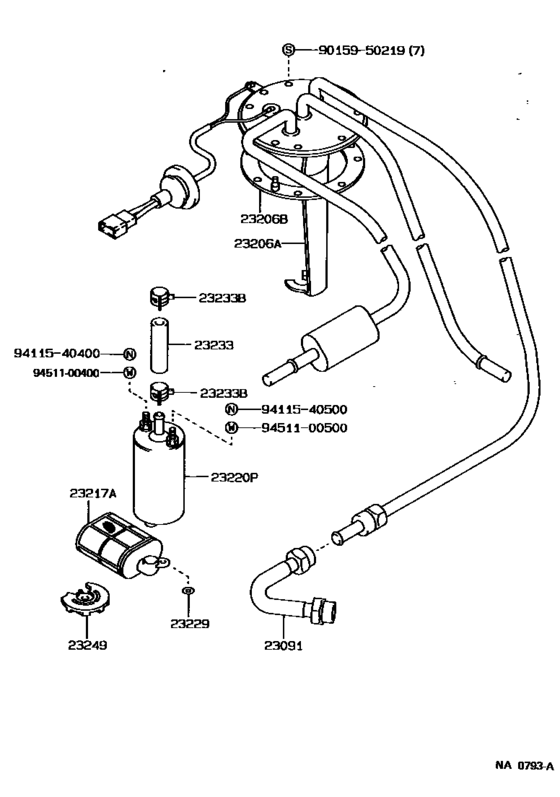

Fuel Injection System ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-42050 Tube Sub-Assy, Fuel PumpFUEL PUMP [08.1988 - 07.1992] 7MGE..MX83 |
23091-42050 |
US $88.82 |
||
|
23206A
|
23206A
23206-42100 Bracket, Fuel Pump[08.1988 - 07.1992] 7MGE..MX83 |
23206-42100 |
US $132.50 |
||
|
23206B
|
23206B
77169-14010 Gasket, Fuel Pump Bracket[08.1988 - 07.1992] 7MGE..MX83 |
77169-14010 |
from US $3.68 |
||
| replacement | |||||
|
23206B
|
23206B
77169140101
Gasket, Fuel Pump Bracket
[08.1988 - 07.1992] 7MGE..MX83 |
77169140101 |
— | ||
|
23217A
|
23217A
23217-16030 Filter, Fuel Pump[08.1988 - 08.1990] 7MGE..MX83 NIPPONDENSO |
23217-16030 |
US $9.44 |
||
|
23217A
|
23217A
23217-16043 Filter, Fuel Pump[08.1988 - 08.1990] 7MGE..MX83 AISAN |
23217-16043 |
US $8 |
||
|
23220P
|
23220P
23220-70170
Pump Assy, Fuel
[08.1988 - 07.1992] 7MGE..MX83 |
23220-70170 |
— | ||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1988 - 07.1992] 7MGE..MX83 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1988 - 07.1992] 7MGE..MX83 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[08.1988 - 07.1992] 7MGE..MX83 |
23239-16010 |
from US $1.81 |
||
|
23233B
|
23233B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 10.1989] 7MGE..MX83 |
90467-13001 |
— | ||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[08.1988 - 10.1989] 7MGE..MX83 |
96135-51300 |
from US $1.92 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.1989 - 07.1992] 7MGE..MX83 |
90467-13054 |
from US $0.92 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[10.1989 - 07.1992] 7MGE..MX83 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74150 Rubber, Cushion(For Fuel Pump)[08.1988 - 07.1992] 7MGE..MX83 |
23249-74150 |
from US $17.63 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.64 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
