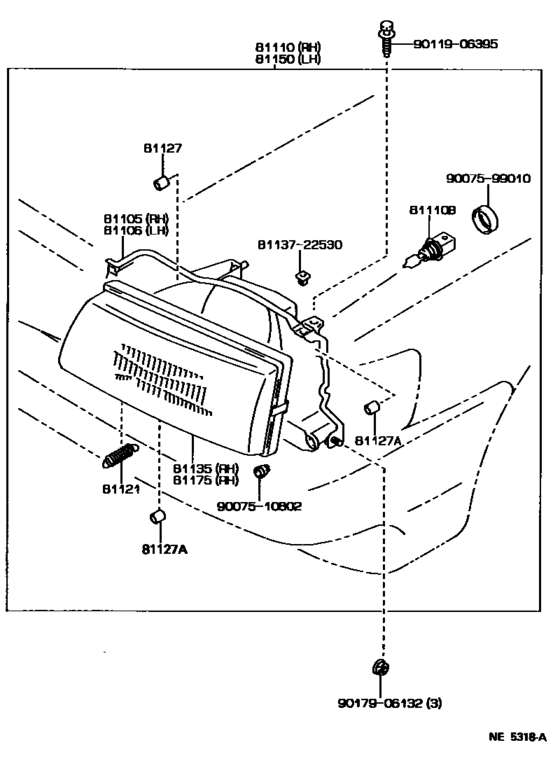

Headlamp ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-22630 Housing Sub-Assy, Headlamp, RhHEADLAMP, RH [08.1988 - 07.1992] MX83 |
81105-22630 |
US $57.95 |
||
|
81106
|
81106
81106-22630 Housing Sub-Assy, Headlamp, LhHEADLAMP, LH [08.1988 - 07.1992] MX83 |
81106-22630 |
US $57.95 |
||
|
81110
|
81110
81110-22630
Headlamp Assy, Rh
[08.1988 - 07.1992] MX83 |
81110-22630 |
— | ||
|
81110B
|
81110B
90981-13032 Bulb(For Headlamp, No.1)NO.1) [08.1988 - 07.1992] MX83 12V 65/45W,*HAL,*WH |
90981-13032 |
from US $36.84 |
||
|
81121
|
81121
90075-25520 Spring, Headlamp TensionHEADLAMP TENSION [08.1988 - 07.1992] MX83 |
90075-25520 |
US $2.48 |
||
|
81127
|
81127
81128-22630 Bearing, Headlamp, No.1[08.1988 - 07.1992] MX83 |
81128-22630 |
US $4 |
||
|
81127A
|
81127A
81128-32200 Bearing, Headlamp, No.1HEADLAMP [08.1988 - 07.1992] MX83 |
81128-32200 |
US $4.37 |
||
|
81135
|
81135
81130-22630
Unit Assy, Headlamp, Rh
[08.1988 - 07.1992] MX83 |
81130-22630 |
— | ||
|
81150
|
81150
81150-22630
Headlamp Assy, Lh
[08.1988 - 07.1992] MX83 |
81150-22630 |
— | ||
|
81175
|
81175
81170-22630 Unit Assy, Headlamp, LhHEADLAMP, LH [08.1988 - 07.1992] MX83 |
81170-22630 |
US $340.70 |
||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
US $2.08 |
||
|
9007510802
|
9007510802
90075-10802
Side Turn Signal Lamp Retainer
|
90075-10802 |
— | ||
|
9007599010
|
9007599010
90075-99010 Cap, Headlamp LockingHEADLAMP LOCKING |
90075-99010 |
US $0.87 |
||
|
9011906395
|
9011906395
90119-06395 New Genuine Part |
90119-06395 |
US $0.87 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
