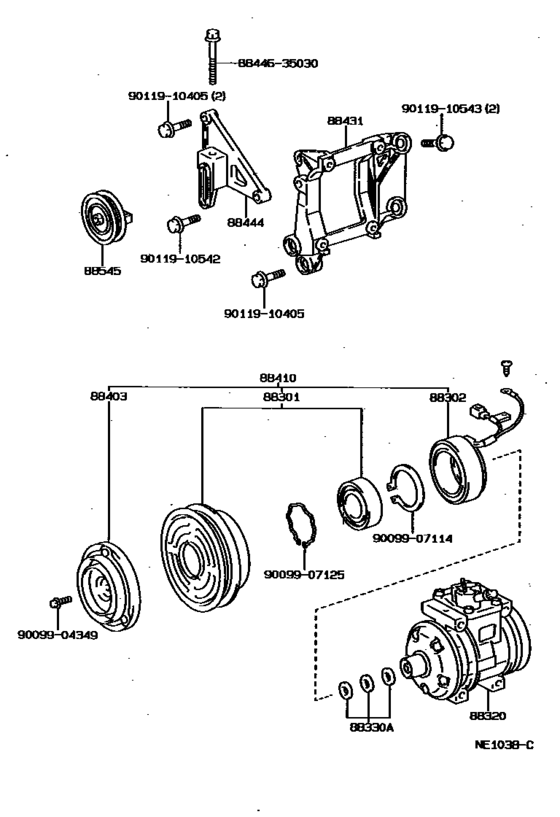

Heating & Air Conditioning - Compressor ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12150
Rotor Sub-Assy, Magnet Clutch
[08.1988 - 07.1992] MX83 |
88412-12150 |
— | ||
|
88302
|
88302
88411-35030
Stator Sub-Assy, Magnet Clutch
[08.1988 - 07.1992] MX83 |
88411-35030 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-2B080
Stator Sub-Assy, Magnet Clutch
[08.1988 - 07.1992] MX83 |
88411-2B080 |
— | ||
|
88320
|
88320
88320-22580
Compressor Assy, Cooler
[08.1988 - 07.1992] MX83 |
88320-22580 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1988 - 07.1992] MX83 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[08.1988 - 07.1992] MX83 |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-30440 Clutch Assy, Magnet[08.1988 - 07.1992] MX83 |
88410-30440 |
US $556.19 |
||
| replacement | |||||
|
88410
|
88410
88410-34040 Clutch Assy, Magnet[08.1988 - 07.1992] MX83 |
88410-34040 |
US $539.88 |
||
|
88431
|
88431
88431-22240
Bracket, Compressor Mounting, No.1
[08.1988 - 07.1992] MX83 |
88431-22240 |
— | ||
|
88444
|
88444
88444-24010
Bracket, Idle Pulley
[08.1988 - 07.1992] MX83 |
88444-24010 |
— | ||
|
88545
|
88545
88440-22090 Pulley Assy, Idle[08.1988 - 07.1992] MX83 |
88440-22090 |
US $85.90 |
||
| replacement | |||||
|
88545
|
88545
88440-26100 Pulley Assy, Idle[08.1988 - 07.1992] MX83 |
88440-26100 |
from US $94.72 |
||
|
8844635030
|
8844635030
88446-35030
Bolt, Idle Pulley
|
88446-35030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
US $4 |
||
|
9011910405
|
9011910405
90119-10405 BOLT |
90119-10405 |
US $4.51 |
||
|
9011910542
|
9011910542
90119-10542
New Genuine Part
|
90119-10542 |
— | ||
|
9011910543
|
9011910543
90119-10543 New Genuine Part |
90119-10543 |
US $3.20 |
||
