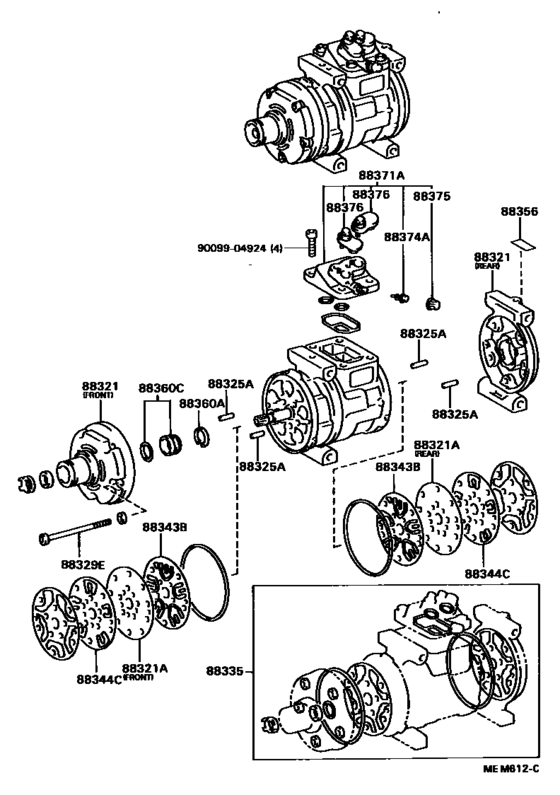

Heating & Air Conditioning - Compressor ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-30290
Head, Cooler Compressor Cylinder
[08.1988 - 07.1992] MX83 FRONT |
88321-30290 |
— | ||
|
88321
|
88321
88322-30310
Head, Cooler Compressor Cylinder
[08.1988 - 07.1992] MX83 REAR |
88322-30310 |
— | ||
|
88321A
|
88321A
88341-30030
Plate Sub-Assy, Valve
[08.1988 - 07.1992] MX83 FRONT |
88341-30030 |
— | ||
|
88321A
|
88321A
88342-30260
Plate Sub-Assy, Valve
[08.1988 - 07.1992] MX83 REAR |
88342-30260 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[08.1988 - 07.1992] MX83 |
90099-08058 |
— | ||
|
88329E
|
88329E
88329-30010
Bolt, Through
[08.1988 - 07.1992] MX83 |
88329-30010 |
— | ||
|
88335
|
88335
88335-30020
Gasket Kit, Overhaul
[08.1988 - 07.1992] MX83 |
88335-30020 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-30360
Gasket Kit, Overhaul
[08.1988 - 07.1992] MX83 |
88335-30360 |
— | ||
|
88343B
|
88343B
88343-30260
Reed, Suction Valve
[08.1990 - 07.1992] MX83 |
88343-30260 |
— | ||
|
88344C
|
88344C
88344-30010
Reed, Discharge Valve
[08.1988 - 07.1992] MX83 |
88344-30010 |
— | ||
|
88356
|
88356
88356-12010
Plate, Caution
[08.1988 - 07.1992] MX83 |
88356-12010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1988 - 07.1992] MX83 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[08.1988 - 07.1992] MX83 |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[08.1988 - 07.1992] MX83 |
88360-2B020 |
from US $68.84 |
||
|
88371A
|
88371A
88371-22360
Valve, Cooler Compressor Suction Service
[08.1988 - 07.1992] MX83 |
88371-22360 |
— | ||
|
88374A
|
88374A
88374-12020
Valve, Service, No.1
[08.1988 - 07.1992] MX83 |
88374-12020 |
— | ||
| replacement | |||||
|
88374A
|
88374A
88374-20020 Valve, Service, No.1[08.1988 - 07.1992] MX83 |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[08.1988 - 07.1992] MX83 |
88375-30270 |
— | ||
|
88376
|
88376
88376-22010
Cap, Blind
[08.1988 - 07.1992] MX83 SUCTION |
88376-22010 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[08.1988 - 07.1992] MX83 DISCHARGE |
88376-22020 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
