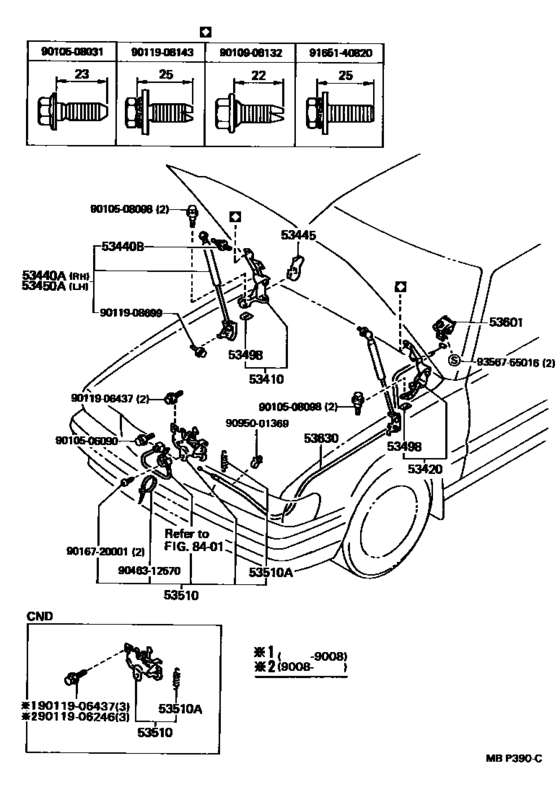

Hood Lock & Hinge ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-22080 Hinge Assy, Hood, Rh[08.1988 -] MX83 |
53410-22080 |
US $32.47 |
||
|
53420
|
53420
53420-22080 Hinge Assy, Hood, Lh[08.1988 -] MX83 |
53420-22080 |
US $32.47 |
||
|
53440A
|
53440A
53440-29046 Support Assy, Hood, Rh[08.1988 -] MX83 |
53440-29046 |
US $125.80 |
||
|
53440B
|
53440B
68961-22020
Bolt, Hood Support, No.1
[08.1988 -] MX83 |
68961-22020 |
— | ||
|
53445
|
53445
53445-22010 Cover, Hood Hinge, RhHOOD HINGE, RH [08.1988 - 07.1992] MX83 |
53445-22010 |
US $4.22 |
||
|
53450A
|
53450A
53450-29046 Support Assy, Hood, Lh[08.1988 -] MX83 |
53450-29046 |
US $125.80 |
||
|
53498
|
53498
53498-20010 Pad, Hood Hinge, No.2[08.1988 - 08.1990] MX83 |
53498-20010 |
US $2.48 |
||
| replacement | |||||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[08.1988 - 08.1990] MX83 |
53498-12011 |
US $1.92 |
||
|
53510
|
53510
53510-22310
Lock Assy, Hood
[08.1988 - 07.1992] MX83..USA |
53510-22310 |
— | ||
|
53510A
|
53510A
90506-09029
Spring, Tension(For Hood Lock)
[08.1988 - 07.1992] MX83 WD=0.9,CW=26.5,WD=0.9 |
90506-09029 |
— | ||
|
53510A
|
53510A
90506-18061 Spring, Tension(For Hood Lock)[08.1988 - 07.1992] MX83 WD=1.8,CW=18,CW=18,WD=1.8 |
90506-18061 |
US $2.88 |
||
|
53601
|
53601
53601-22010-06 Lever Sub-Assy, Hood Lock Control[08.1988 - 07.1992] MX83..USA SABLE,TRIM4# |
53601-22010-06 |
US $34.94 |
||
| replacement | |||||
|
53601
|
53601
53601-22010-01 Lever Assy, Hood Lock Release[08.1988 - 07.1992] MX83..USA SABLE,TRIM4# |
53601-22010-01 |
US $34.65 |
||
|
53601
|
53601
53601-22010-13 Lever Sub-Assy, Hood Lock Control[08.1988 - 07.1992] MX83..USA MEDIUM GRAY,TRIM1# |
53601-22010-13 |
US $34.94 |
||
| replacement | |||||
|
53601
|
53601
53601-22010-01 Lever Assy, Hood Lock Release[08.1988 - 07.1992] MX83..USA MEDIUM GRAY,TRIM1# |
53601-22010-01 |
US $34.65 |
||
|
53601
|
53601
53601-22010-14 Lever Sub-Assy, Hood Lock Control[08.1988 - 07.1992] MX83..USA DARK BLUE,TRIM8# |
53601-22010-14 |
US $34.94 |
||
| replacement | |||||
|
53601
|
53601
53601-22010-01 Lever Assy, Hood Lock Release[08.1988 - 07.1992] MX83..USA DARK BLUE,TRIM8# |
53601-22010-01 |
US $34.65 |
||
|
53601
|
53601
53601-22010-22 Lever Sub-Assy, Hood Lock Control[08.1988 - 07.1992] MX83..USA NEW MAROON,TRIM3# |
53601-22010-22 |
US $34.94 |
||
| replacement | |||||
|
53601
|
53601
53601-22010-01 Lever Assy, Hood Lock Release[08.1988 - 07.1992] MX83..USA NEW MAROON,TRIM3# |
53601-22010-01 |
US $34.65 |
||
|
53630
|
53630
53630-22170
Cable Assy, Hood Lock Control
[08.1988 - 07.1992] MX83 |
53630-22170 |
— | ||
|
9010506090
|
9010506090
90105-06090
New Genuine Part
|
90105-06090 |
— | ||
| replacement | |||||
|
9010506090
|
9010506090
91621-G0612 New Genuine Part |
91621-G0612 |
US $1.92 |
||
|
9010508031
|
9010508031
90105-08031 Bolt |
90105-08031 |
US $1.76 |
||
|
9010508098
|
9010508098
90105-08098 New Genuine Part |
90105-08098 |
US $1.89 |
||
| replacement | |||||
|
9010508098
|
9010508098
91511-B0818 BOLT FLANGE |
91511-B0818 |
US $2.24 |
||
|
9010908132
|
9010908132
90109-08132 New Genuine Part |
90109-08132 |
US $2.18 |
||
| replacement | |||||
|
9010908132
|
9010908132
90105-08031 Bolt |
90105-08031 |
US $1.76 |
||
|
9011906246
|
9011906246
90119-06246
New Genuine Part
|
90119-06246 |
— | ||
| replacement | |||||
|
9011906246
|
9011906246
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9011906437
|
9011906437
90119-06437
New Genuine Part
|
90119-06437 |
— | ||
| replacement | |||||
|
9011906437
|
9011906437
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9011908143
|
9011908143
90119-08143 New Genuine Part |
90119-08143 |
US $2.88 |
||
|
9011908699
|
9011908699
90119-08699 New Genuine Part |
90119-08699 |
US $1.60 |
||
|
9016720001
|
9016720001
90167-20001 New Genuine Part |
90167-20001 |
US $0.87 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9095001369
|
9095001369
90950-01369 New Genuine Part |
90950-01369 |
US $7.13 |
||
| replacement | |||||
|
9095001369
|
9095001369
90950-01979 New Genuine Part |
90950-01979 |
US $6.64 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
