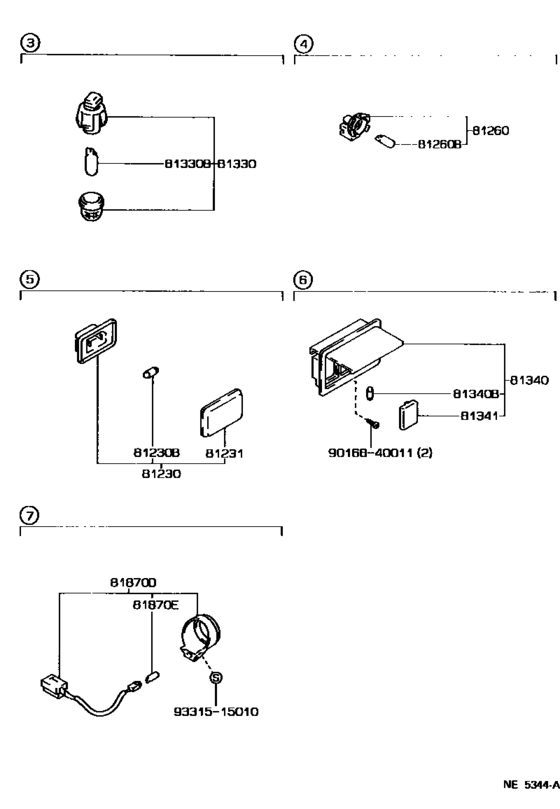

Interior Lamp ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-30130
Lamp Assy, Courtesy
[08.1988 - 07.1992] MX83 |
81230-30130 |
— | ||
|
81230B
|
81230B
90981-14001 Bulb(For Courtesy Lamp)[08.1988 - 07.1992] MX83 12V 3W |
90981-14001 |
US $2.24 |
||
|
81231
|
81231
81231-30130 Lens, Courtesy LampCOURTESY LAMP [08.1988 - 07.1992] MX83 |
81231-30130 |
US $7.50 |
||
|
81260
|
81260
81260-32071 Lamp Assy, Glove Box[08.1988 - 07.1992] MX83 |
81260-32071 |
US $16.42 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
81330
|
81330
81330-30090 Lamp Assy, Luggage Compartment, No.1[08.1988 - 11.1991] MX83 |
81330-30090 |
US $16.87 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1988 - 11.1991] MX83 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81340
|
81340
81340-22040-02 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA MAROON,TRIM3#,LH |
81340-22040-02 |
US $84.45 |
||
| replacement | |||||
|
81340
|
81340
81340-22040-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA MAROON,TRIM3#,LH |
81340-22040-03 |
US $84.45 |
||
|
81340
|
81340
81340-22040-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,LH |
81340-22040-03 |
US $84.45 |
||
|
81340
|
81340
81340-22040-04 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA BLUE,TRIM8#,LH |
81340-22040-04 |
US $84.45 |
||
| replacement | |||||
|
81340
|
81340
81340-22040-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA BLUE,TRIM8#,LH |
81340-22040-03 |
US $84.45 |
||
|
81340
|
81340
81340-22040-06 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA SABLE,TRIM4#,LH |
81340-22040-06 |
US $84.45 |
||
| replacement | |||||
|
81340
|
81340
81340-22040-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA SABLE,TRIM4#,LH |
81340-22040-03 |
US $84.45 |
||
|
81340
|
81340
81340-22050-02 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA MAROON,TRIM3#,RH |
81340-22050-02 |
US $84.45 |
||
| replacement | |||||
|
81340
|
81340
81340-22050-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA MAROON,TRIM3#,RH |
81340-22050-03 |
US $84.45 |
||
|
81340
|
81340
81340-22050-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,RH |
81340-22050-03 |
US $84.45 |
||
|
81340
|
81340
81340-22050-04 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA BLUE,TRIM8#,RH |
81340-22050-04 |
US $84.45 |
||
| replacement | |||||
|
81340
|
81340
81340-22050-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA BLUE,TRIM8#,RH |
81340-22050-03 |
US $84.45 |
||
|
81340
|
81340
81340-22050-06 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA SABLE,TRIM4#,RH |
81340-22050-06 |
US $84.45 |
||
| replacement | |||||
|
81340
|
81340
81340-22050-03 Lamp Assy, Vanity[08.1988 - 07.1992] MX83..USA SABLE,TRIM4#,RH |
81340-22050-03 |
US $84.45 |
||
|
81340B
|
81340B
90981-14002 Bulb, Room Lamp, No.2[08.1988 - 07.1992] MX83 12V 5W |
90981-14002 |
US $1.57 |
||
|
81341
|
81341
81341-14010 Lens, Vanity LampVANITY LAMP [08.1988 - 07.1992] MX83 |
81341-14010 |
US $5.39 |
||
|
81870D
|
81870D
81870-22040 Lamp Assy, Key CylinderKEY CYLINDER [08.1988 - 07.1992] MX83 |
81870-22040 |
US $63.04 |
||
|
81870E
|
81870E
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.22 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.12 |
||
