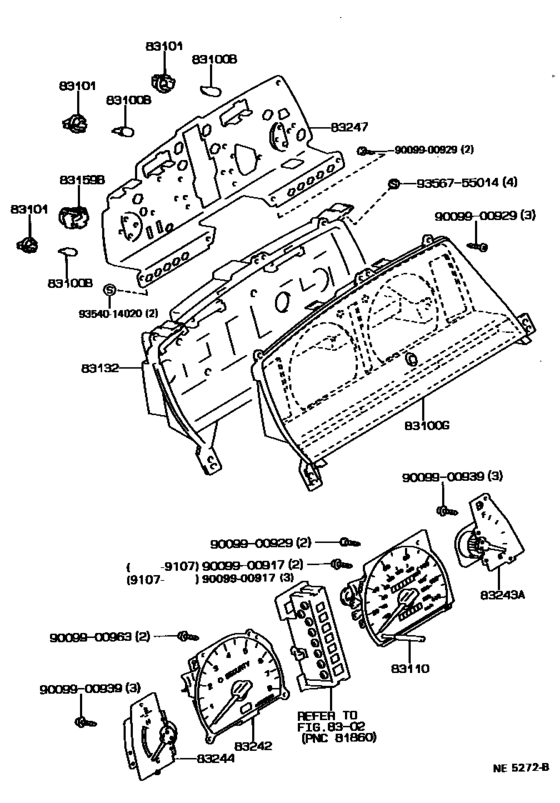

Meter ([08.1988 - 07.1992] ANALOG (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[08.1988 - 07.1992] MX83 12V 3.4W W(GREEN CAP),SOCKET:83101-14030 |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
83109-30060
Bulb, Combination Meter, No.1
[08.1988 - 08.1990] MX83 12V 2.0W,W/GREEN CAP,SOCKET:83101-14040 |
83109-30060 |
— | ||
|
83100B
|
83100B
83119-24030 Bulb, Combination Meter, No.1[09.1989 - 08.1990] MX83 12V 1.2W W(SOCKET),TURN |
83119-24030 |
US $11.07 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 08.1990] MX83..USA 12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040; MX83..CND 12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040 |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 3.4W,SOCKET:83101-14030 |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 3.4W,SOCKET:83101-14030 |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83133-22730
Glass, Combination Meter
[08.1988 - 07.1992] MX83 |
83133-22730 |
— | ||
|
83100G
|
83100G
83133-22850
Glass, Combination Meter
[08.1988 - 03.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83133-22850 |
— | ||
|
83100G
|
83100G
83133-2A090
Glass, Combination Meter
[03.1990 - 08.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83133-2A090 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1990 - 07.1992] MX83 BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1988 - 07.1992] MX83 BULB:12V 1.2W |
83101-14040 |
US $2.93 |
||
|
83110
|
83110
83110-2A620 Speedometer Assy[08.1988 - 08.1990] MX83..USA |
83110-2A620 |
US $390.21 |
||
| replacement | |||||
|
83110
|
83110
83110-2A830 Speedometer Assy[08.1988 - 08.1990] MX83..USA |
83110-2A830 |
US $381.47 |
||
|
83110
|
83110
83110-2A621 Speedometer Assy[08.1990 - 02.1991] MX83..USA |
83110-2A621 |
US $394.58 |
||
| replacement | |||||
|
83110
|
83110
83110-2A622 Speedometer Assy[08.1990 - 02.1991] MX83..USA |
83110-2A622 |
US $394.58 |
||
|
83110
|
83110
83110-2A622 Speedometer Assy[02.1991 - 07.1991] MX83..USA |
83110-2A622 |
US $394.58 |
||
|
83110
|
83110
83110-2A623 Speedometer Assy[07.1991 - 07.1992] MX83..USA |
83110-2A623 |
US $390.21 |
||
|
83132
|
83132
83132-2A130
Case, Combination Meter
[08.1988 - 08.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83132-2A130 |
— | ||
|
83132
|
83132
83132-2A190
Case, Combination Meter
[08.1988 - 08.1990] MX83..USA |
83132-2A190 |
— | ||
|
83132
|
83132
83132-2A430
Case, Combination Meter
[08.1990 - 07.1992] MX83..USA |
83132-2A430 |
— | ||
|
83159B
|
83159B
83159-22170 Switch, Meter, No.1[08.1988 - 07.1992] MX83..USA |
83159-22170 |
US $54.69 |
||
|
83242
|
83242
83242-22710 Tachometer Assy, EngineENGINE [08.1988 - 08.1990] MX83..USA |
83242-22710 |
US $532.90 |
||
|
83242
|
83242
83242-22830 Tachometer Assy, EngineENGINE [08.1990 - 07.1992] MX83..USA |
83242-22830 |
US $506.69 |
||
|
83243A
|
83243A
83243-22390
Gauge Sub-Assy, Fuel Receiver
[08.1988 - 08.1990] MX83 |
83243-22390 |
— | ||
|
83243A
|
83243A
83243-22450 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1990 - 07.1992] MX83 |
83243-22450 |
US $58.39 |
||
|
83244
|
83244
83244-22450 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1988 - 08.1990] MX83 |
83244-22450 |
US $70.91 |
||
|
83244
|
83244
83244-22470 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1990 - 07.1992] MX83 |
83244-22470 |
US $78.62 |
||
|
83247
|
83247
83247-2A710
Plate, Meter Circuit
[08.1988 - 08.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83247-2A710 |
— | ||
|
83247
|
83247
83247-2A750
Plate, Meter Circuit
[08.1988 - 07.1991] MX83..USA |
83247-2A750 |
— | ||
|
83247
|
83247
83247-2C170
Plate, Meter Circuit
[07.1991 - 07.1992] MX83..USA |
83247-2C170 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9009900963
|
9009900963
90099-00963
New Genuine Part
|
90099-00963 |
— | ||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
