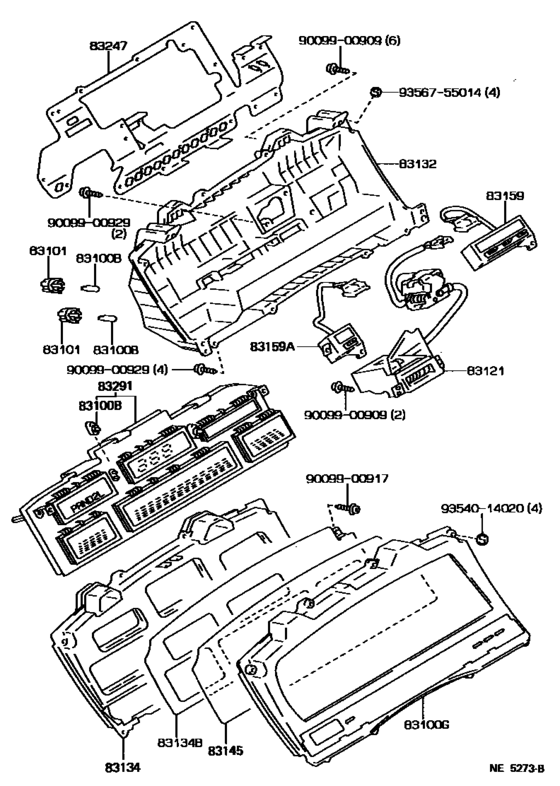

Meter ([08.1988 - 08.1990] DIGITAL (8808-9008)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[08.1988 - 07.1992] MX83 12V 3.4W W(GREEN CAP),SOCKET:83101-14030 |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
83109-30060
Bulb, Combination Meter, No.1
[08.1988 - 08.1990] MX83 12V 2.0W,W/GREEN CAP,SOCKET:83101-14040 |
83109-30060 |
— | ||
|
83100B
|
83100B
83119-24030 Bulb, Combination Meter, No.1[09.1989 - 08.1990] MX83 12V 1.2W W(SOCKET),TURN |
83119-24030 |
US $11.07 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 08.1990] MX83..USA 12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040; MX83..CND 12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040 |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 3.4W,SOCKET:83101-14030 |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 3.4W,SOCKET:83101-14030 |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83133-22730
Glass, Combination Meter
[08.1988 - 07.1992] MX83 |
83133-22730 |
— | ||
|
83100G
|
83100G
83133-22850
Glass, Combination Meter
[08.1988 - 03.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83133-22850 |
— | ||
|
83100G
|
83100G
83133-2A090
Glass, Combination Meter
[03.1990 - 08.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83133-2A090 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1990 - 07.1992] MX83 BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1988 - 07.1992] MX83 BULB:12V 1.2W |
83101-14040 |
US $3.02 |
||
|
83121
|
83121
83121-22210
Counter, Total
[08.1988 - 08.1990] MX83..USA |
83121-22210 |
— | ||
|
83132
|
83132
83132-2A130
Case, Combination Meter
[08.1988 - 08.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83132-2A130 |
— | ||
|
83132
|
83132
83132-2A190
Case, Combination Meter
[08.1988 - 08.1990] MX83..USA |
83132-2A190 |
— | ||
|
83132
|
83132
83132-2A430
Case, Combination Meter
[08.1990 - 07.1992] MX83..USA |
83132-2A430 |
— | ||
|
83134
|
83134
83133-22830
Cover, Combination Meter, No.1
[08.1988 - 08.1990] MX83 |
83133-22830 |
— | ||
|
83134B
|
83134B
83133-22770
Cover, Combination Meter, No.2
[08.1988 - 08.1990] MX83 |
83133-22770 |
— | ||
|
83145
|
83145
83145-22350
Lens, Meter, No.1
[08.1988 - 08.1990] MX83 |
83145-22350 |
— | ||
|
83159
|
83159
83159-22210 Switch, Meter, No.1METER, NO.1 [08.1988 - 08.1990] MX83 |
83159-22210 |
US $52.12 |
||
|
83159A
|
83159A
83159-22270 Switch, Meter, No.2METER, NO.2 [08.1988 - 08.1990] MX83..USA |
83159-22270 |
US $52.12 |
||
|
83247
|
83247
83247-2A710
Plate, Meter Circuit
[08.1988 - 08.1990] MX83..USA W(DIGITAL SPEEDOMETER) |
83247-2A710 |
— | ||
|
83247
|
83247
83247-2A750
Plate, Meter Circuit
[08.1988 - 07.1991] MX83..USA |
83247-2A750 |
— | ||
|
83247
|
83247
83247-2C170
Plate, Meter Circuit
[07.1991 - 07.1992] MX83..USA |
83247-2C170 |
— | ||
|
83291
|
83291
83291-22300
Computer, Combination Meter
[08.1988 - 08.1990] MX83..USA |
83291-22300 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
