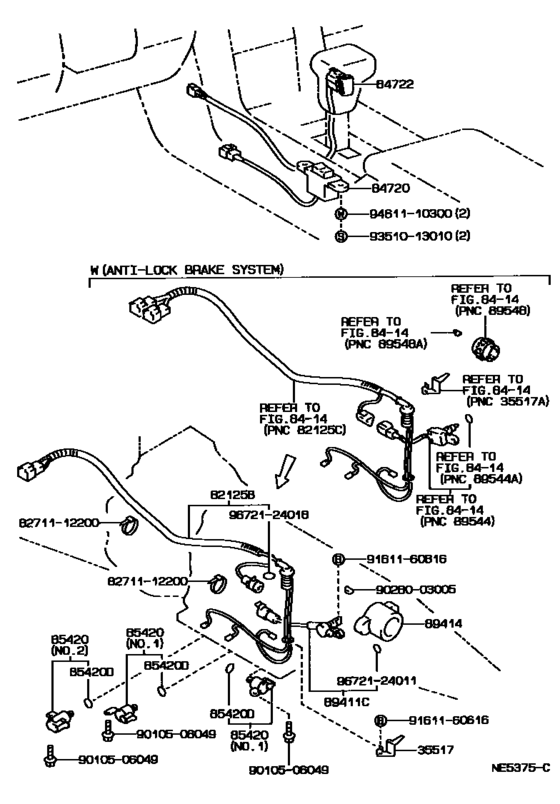

Overdrive & Electronic Controlled Transmission ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-30010 Plate, Transmission Wire Lock[08.1988 - 07.1992] MX83 |
35517-30010 |
US $4.37 |
||
|
82125B
|
82125B
82125-14050 Wire, Transmission[05.1992 - 07.1992] MX83 W(*66) |
82125-14050 |
US $36.84 |
||
|
82125B
|
82125B
82125-24060
Wire, Transmission
[08.1988 - 07.1992] MX83 |
82125-24060 |
— | ||
|
84720
|
84720
84720-22110 Switch Assy, Pattern SelectPATTERN SELECT [08.1988 - 08.1990] MX83 |
84720-22110 |
US $50.09 |
||
|
84720
|
84720
84720-22160 Switch Assy, Pattern SelectPATTERN SELECT [08.1990 - 07.1992] MX83 |
84720-22160 |
US $49.50 |
||
|
84722
|
84722
84722-22090-02 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
84722-22090-02 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-22090-03 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
84722-22090-03 |
US $41.93 |
||
|
84722
|
84722
84722-22090-03 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
84722-22090-03 |
US $41.93 |
||
|
84722
|
84722
84722-22090-04 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
84722-22090-04 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-22090-03 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
84722-22090-03 |
US $41.93 |
||
|
84722
|
84722
84722-22090-06 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 08.1989] MX83 SABLE,TRIM4# |
84722-22090-06 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-22090-03 Switch, Transmission ControlTRANSMISSION CONTROL [08.1988 - 08.1989] MX83 SABLE,TRIM4# |
84722-22090-03 |
US $41.93 |
||
|
84722
|
84722
84722-22110-02 Switch, Transmission Control[08.1989 - 08.1990] MX83 W(POWER SEAT),NEW MAROON,TRIM3# |
84722-22110-02 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-22110-03 Switch, Transmission Control[08.1989 - 08.1990] MX83 W(POWER SEAT),NEW MAROON,TRIM3# |
84722-22110-03 |
US $41.93 |
||
|
84722
|
84722
84722-22110-03 Switch, Transmission Control[08.1989 - 08.1990] MX83..USA W(POWER SEAT),MIDIUM GRAY,TRIM1# |
84722-22110-03 |
US $41.93 |
||
|
84722
|
84722
84722-22110-04 Switch, Transmission Control[08.1989 - 08.1990] MX83 W(POWER SEAT),DARK BLUE,TRIM8# |
84722-22110-04 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-22110-03 Switch, Transmission Control[08.1989 - 08.1990] MX83 W(POWER SEAT),DARK BLUE,TRIM8# |
84722-22110-03 |
US $41.93 |
||
|
84722
|
84722
84722-22110-06 Switch, Transmission Control[08.1989 - 08.1990] MX83..USA W(POWER SEAT),SABLE,TRIM4# |
84722-22110-06 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-22110-03 Switch, Transmission Control[08.1989 - 08.1990] MX83..USA W(POWER SEAT),SABLE,TRIM4# |
84722-22110-03 |
US $41.93 |
||
|
85420
|
85420
85420-22080 Solenoid Assy, Transmission[08.1988 - 07.1992] MX83 NO.1 |
85420-22080 |
US $195.84 |
||
|
85420
|
85420
85420-30110
Solenoid Assy, Transmission
[08.1988 - 08.1990] MX83 AISHIN,NO.2(LOCK UP) |
85420-30110 |
— | ||
|
85420
|
85420
85420-30120
Solenoid Assy, Transmission
[08.1988 - 07.1992] MX83 *ND,NO.2(LOCK UP) |
85420-30120 |
— | ||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.1988 - 07.1992] MX83 |
90301-06004 |
from US $1.92 |
||
|
89411C
|
89411C
89411-22060
Sensor, Speed
[08.1988 - 12.1988] MX83 |
89411-22060 |
— | ||
| replacement | |||||
|
89411C
|
89411C
89411-22061
Sensor, Speed
[08.1988 - 12.1988] MX83 |
89411-22061 |
— | ||
|
89411C
|
89411C
89411-22061
Sensor, Speed
[12.1988 - 07.1992] MX83 |
89411-22061 |
— | ||
|
89414
|
89414
89414-30020
Rotor, Sensor
[08.1988 - 12.1988] MX83 |
89414-30020 |
— | ||
| replacement | |||||
|
89414
|
89414
89414-30021
Rotor, Sensor
[08.1988 - 12.1988] MX83 |
89414-30021 |
— | ||
|
89414
|
89414
89414-30021
Rotor, Sensor
[12.1988 - 07.1992] MX83 |
89414-30021 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.12 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9672124011
|
9672124011
96721-24011 Ring, O(For Oil Pipe) |
96721-24011 |
US $4.16 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $6.40 |
||
