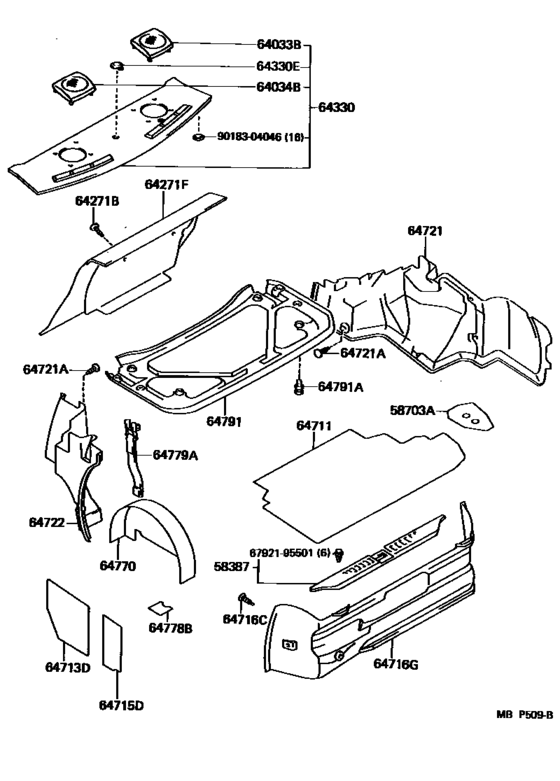

Package Tray Panel & Luggage Compartment Mat ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58387
|
58387
58387-22010-03
Plate, Rear Floor Finish
[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
58387-22010-03 |
— | ||
|
58703A
|
58703A
58703-22060 Cover Sub-Assy, Luggage Compartment Side, Rh[08.1988 - 07.1992] MX83 |
58703-22060 |
US $13.10 |
||
|
64033B
|
64033B
64033-22070-02
Grille Sub-Assy, Rear Speaker, Rh
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
64033-22070-02 |
— | ||
|
64033B
|
64033B
64033-22070-03 Grille Sub-Assy, Rear Speaker, Rh[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
64033-22070-03 |
US $30.87 |
||
|
64033B
|
64033B
64033-22070-04 Grille Sub-Assy, Rear Speaker, Rh[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
64033-22070-04 |
US $30.87 |
||
|
64033B
|
64033B
64033-22070-06 Grille Sub-Assy, Rear Speaker, Rh[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
64033-22070-06 |
US $30.87 |
||
|
64034B
|
64034B
64033-22070-02
Grille Sub-Assy, Rear Speaker, Rh
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
64033-22070-02 |
— | ||
|
64034B
|
64034B
64033-22070-03 Grille Sub-Assy, Rear Speaker, Rh[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
64033-22070-03 |
US $30.87 |
||
|
64034B
|
64034B
64033-22070-04 Grille Sub-Assy, Rear Speaker, Rh[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
64033-22070-04 |
US $30.87 |
||
|
64034B
|
64034B
64033-22070-06 Grille Sub-Assy, Rear Speaker, Rh[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
64033-22070-06 |
US $30.87 |
||
|
64271B
|
64271B
90467-06070-13 Clip(For Room Partition Board)[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
90467-06070-13 |
US $1.89 |
||
|
64271F
|
64271F
64271-22100-03 Trim, Room Partition[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64271-22100-03 |
US $70.91 |
||
|
64330
|
64330
64330-22690-02 Panel Assy, Package Tray Trim[08.1988 - 08.1990] MX83 NEW MAROON,TRIM3# |
64330-22690-02 |
US $200.93 |
||
| replacement | |||||
|
64330
|
64330
64330-22690-B0 Panel Assy, Package Tray Trim[08.1988 - 08.1990] MX83 NEW MAROON,TRIM3# |
64330-22690-B0 |
US $196.56 |
||
|
64330
|
64330
64330-22690-03 Panel Assy, Package Tray Trim[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
64330-22690-03 |
US $200.93 |
||
| replacement | |||||
|
64330
|
64330
64330-22690-B0 Panel Assy, Package Tray Trim[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
64330-22690-B0 |
US $196.56 |
||
|
64330
|
64330
64330-22690-04 Panel Assy, Package Tray Trim[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
64330-22690-04 |
US $196.56 |
||
| replacement | |||||
|
64330
|
64330
64330-22690-B0 Panel Assy, Package Tray Trim[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
64330-22690-B0 |
US $196.56 |
||
|
64330
|
64330
64330-22690-06 Panel Assy, Package Tray Trim[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
64330-22690-06 |
US $200.93 |
||
| replacement | |||||
|
64330
|
64330
64330-22690-B0 Panel Assy, Package Tray Trim[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
64330-22690-B0 |
US $196.56 |
||
|
64330
|
64330
64330-22710-02 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1990 - 07.1992] MX83 NEW MAROON,TRIM3# |
64330-22710-02 |
US $199.47 |
||
| replacement | |||||
|
64330
|
64330
64330-22710-K0 Panel Assy, Package Tray Trim[08.1990 - 07.1992] MX83 NEW MAROON,TRIM3# |
64330-22710-K0 |
US $198.02 |
||
|
64330
|
64330
64330-22710-03 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1990 - 07.1992] MX83 MEDIUM GRAY,TRIM1# |
64330-22710-03 |
US $199.47 |
||
| replacement | |||||
|
64330
|
64330
64330-22710-B0 Panel Assy, Package Tray Trim[08.1990 - 07.1992] MX83 MEDIUM GRAY,TRIM1# |
64330-22710-B0 |
US $198.02 |
||
|
64330
|
64330
64330-22710-06 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [08.1990 - 07.1992] MX83 SABLE,TRIM4# |
64330-22710-06 |
US $199.47 |
||
| replacement | |||||
|
64330
|
64330
64330-22710-E0 Panel Assy, Package Tray Trim[08.1990 - 07.1992] MX83 SABLE,TRIM4# |
64330-22710-E0 |
US $198.02 |
||
|
64330
|
64330
64330-22710-14 Panel Assy, Package Tray Trim[08.1990 - 07.1992] MX83..USA DARK BLUE,TRIM8# |
64330-22710-14 |
US $199.47 |
||
| replacement | |||||
|
64330
|
64330
64330-22710-J0 Panel Assy, Package Tray Trim[08.1990 - 07.1992] MX83..USA DARK BLUE,TRIM8# |
64330-22710-J0 |
US $198.02 |
||
|
64330E
|
64330E
90950-01436-23 Plug(For Package Tray Trim Panel)[08.1990 - 07.1992] MX83 MEDIUM GRAY,TRIM1# |
90950-01436-23 |
US $3.06 |
||
| replacement | |||||
|
64330E
|
64330E
90950-01436-C1 Plug, Hole(For Rear Floor Finish Plate) BLACK[08.1990 - 07.1992] MX83 MEDIUM GRAY,TRIM1# |
90950-01436-C1 |
from US $3.03 |
||
|
64330E
|
64330E
90950-01436-26
Plug(For Package Tray Trim Panel)
[08.1990 - 07.1992] MX83 SABLE,TRIM4# |
90950-01436-26 |
— | ||
| replacement | |||||
|
64330E
|
64330E
90950-01436-C1 Plug, Hole(For Rear Floor Finish Plate) BLACK[08.1990 - 07.1992] MX83 SABLE,TRIM4# |
90950-01436-C1 |
from US $3.03 |
||
|
64330E
|
64330E
90950-01436-34 Plug(For Package Tray Trim Panel)[08.1990 - 07.1992] MX83..USA DARK BLUE,TRIM8# |
90950-01436-34 |
US $3.06 |
||
| replacement | |||||
|
64330E
|
64330E
90950-01436-C1 Plug, Hole(For Rear Floor Finish Plate) BLACK[08.1990 - 07.1992] MX83..USA DARK BLUE,TRIM8# |
90950-01436-C1 |
from US $3.03 |
||
|
64330E
|
64330E
90950-01436-42 Plug(For Package Tray Trim Panel)[08.1990 - 07.1992] MX83 NEW MAROON,TRIM3# |
90950-01436-42 |
US $3.06 |
||
|
64711
|
64711
64711-22160-03
Mat, Luggage Compartment Floor
[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64711-22160-03 |
— | ||
|
64713D
|
64713D
64713-22050-03 Cover, Luggage Compartment Trim, Front Lh[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64713-22050-03 |
US $18.78 |
||
|
64715D
|
64715D
64715-22100-03 Cover, Luggage Compartment Trim, Side, Lh[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64715-22100-03 |
US $18.78 |
||
|
64716C
|
64716C
90467-05020-13 Clip(For Luggage Compartment Trim Rear Cover)[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
90467-05020-13 |
US $1.16 |
||
| replacement | |||||
|
64716C
|
64716C
90467-05020-22 Clip, Instrument Panel (Black)[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
90467-05020-22 |
US $0.96 |
||
|
64716G
|
64716G
64716-22210-03 Cover, Luggage Compartment Trim, Rear[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64716-22210-03 |
US $237.33 |
||
|
64721
|
64721
64721-22280-03 Cover, Luggage Compartment Trim, Inner RhLUGGAGE COMPARTMENT TRIM, INNER RH [08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64721-22280-03 |
US $272.27 |
||
|
64721
|
64721
64721-22330-03 Cover, Luggage Compartment Trim, Inner RhLUGGAGE COMPARTMENT TRIM, INNER RH [08.1988 - 07.1992] MX83..USA W(*66),GRAY,TRIM1#,3#,4#,8# |
64721-22330-03 |
US $264.99 |
||
|
64721A
|
64721A
90467-07042-B0 Clip(For Luggage Compartment Trim Inner Cover)[08.1988 - 07.1992] MX83..USA LIGHT GRAY,TRIM1#,3#,4#,8# |
90467-07042-B0 |
US $1.46 |
||
|
64722
|
64722
64722-22280-03 Cover, Luggage Compartment Trim, Inner LhLUGGAGE COMPARTMENT TRIM, INNER LH [08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64722-22280-03 |
US $187.82 |
||
|
64770
|
64770
64770-22070-03
Cover Assy, Spare Wheel
[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64770-22070-03 |
— | ||
|
64778B
|
64778B
64778-22010 Protector, Spare Wheel[08.1988 -] MX83 |
64778-22010 |
US $7.72 |
||
|
64779A
|
64779A
64779-22010 Stopper, Spare Wheel Cover[08.1988 - 08.1990] MX83 |
64779-22010 |
US $7.86 |
||
|
64791
|
64791
64791-22020-03 Cover, Back Door Trim[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
64791-22020-03 |
US $334.88 |
||
|
64791A
|
64791A
90467-07059-03 Clip(For Luggage Compartment Trim Rear Cover)[08.1988 - 07.1992] MX83..USA GRAY,TRIM1#,3#,4#,8# |
90467-07059-03 |
US $1.60 |
||
|
6792195501
|
6792195501
67921-95501 Retainer, Front Door Scuff Plate |
67921-95501 |
from US $1.33 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.92 |
||
