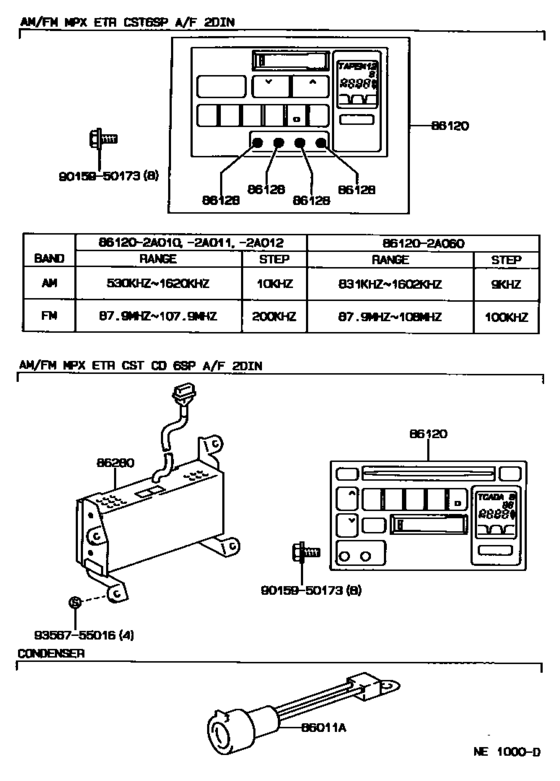

Radio Receiver & Amplifier & Condenser ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86011A
|
86011A
90980-04071
Condenser, Radio Setting
[08.1988 - 08.1990] MX83 |
90980-04071 |
— | ||
|
86011A
|
86011A
90980-04099
Condenser, Radio Setting
[03.1991 - 07.1992] MX83 |
90980-04099 |
— | ||
|
86120
|
86120
86120-2A010 Receiver Assy, Radio[08.1988 - 08.1989] MX83 AM/FM MPX ETR CST 6SP A/F 2DIN USA |
86120-2A010 |
US $4,018.56 |
||
| replacement | |||||
|
86120
|
86120
86120-2A011 Receiver Assy, Radio[08.1988 - 08.1989] MX83 AM/FM MPX ETR CST 6SP A/F 2DIN USA |
86120-2A011 |
US $4,018.56 |
||
|
86120
|
86120
86120-2A011 Receiver Assy, Radio[08.1989 - 08.1990] MX83 AM/FM MPX ETR CST 6SP A/F 2DIN |
86120-2A011 |
US $4,018.56 |
||
|
86120
|
86120
86120-2A012 Receiver Assy, RadioRADIO [08.1990 - 07.1992] MX83 AM/FM MPX ETR CST 6SP A/F 2DIN USA |
86120-2A012 |
US $4,033.12 |
||
|
86120
|
86120
86120-2A020 Receiver Assy, Radio[08.1988 - 08.1989] MX83 AM/FM MPX ETR CST CD 6SP A/F 2DIN |
86120-2A020 |
US $5,387.20 |
||
| replacement | |||||
|
86120
|
86120
86120-2A021 Receiver Assy, Radio[08.1988 - 08.1989] MX83 AM/FM MPX ETR CST CD 6SP A/F 2DIN |
86120-2A021 |
US $5,387.20 |
||
|
86120
|
86120
86120-2A021 Receiver Assy, Radio[08.1989 - 08.1990] MX83 AM/FM MPX ETR CST 6SP A/F 2DIN |
86120-2A021 |
US $5,387.20 |
||
|
86120
|
86120
86120-2A022 Receiver Assy, RadioRADIO [08.1990 - 07.1992] MX83 AM/FM MPX ETR CST CD 6SP A/F 2DIN |
86120-2A022 |
US $4,513.60 |
||
|
86120
|
86120
86120-2A060 Receiver Assy, RadioRADIO [08.1988 - 08.1989] MX83..USA AM/FM MPX ETR CST 6SP A/F 2DIN |
86120-2A060 |
US $3,989.44 |
||
|
86128
|
86128
86128-17190
Knob, Radio Receiver Tone
[08.1988 - 08.1989] MX83 (RADIO P/NO.86120-2A020,86120-2A022) |
86128-17190 |
— | ||
|
86128
|
86128
86128-17210 Knob, Radio ReceiverRADIO RECEIVER [08.1988 - 08.1990] MX83 |
86128-17210 |
US $4.22 |
||
|
86280
|
86280
86280-22130 Amplifier Assy, Stereo Component[08.1988 - 01.1990] MX83 |
86280-22130 |
US $1,014.83 |
||
| replacement | |||||
|
86280
|
86280
86280-22131 Amplifier Assy, Stereo Component[08.1988 - 01.1990] MX83 |
86280-22131 |
US $1,007.55 |
||
|
86280
|
86280
86280-22131 Amplifier Assy, Stereo Component[01.1990 - 07.1992] MX83 |
86280-22131 |
US $1,007.55 |
||
|
861202A010
|
861202A010
86120-2A010 Receiver Assy, Radio |
86120-2A010 |
US $4,018.56 |
||
| replacement | |||||
|
861202A010
|
861202A010
86120-2A011 Receiver Assy, Radio |
86120-2A011 |
US $4,018.56 |
||
|
861202A060
|
861202A060
86120-2A060 Receiver Assy, RadioRADIO |
86120-2A060 |
US $3,989.44 |
||
|
9015950173
|
9015950173
90159-50173 Screw |
90159-50173 |
US $0.52 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
