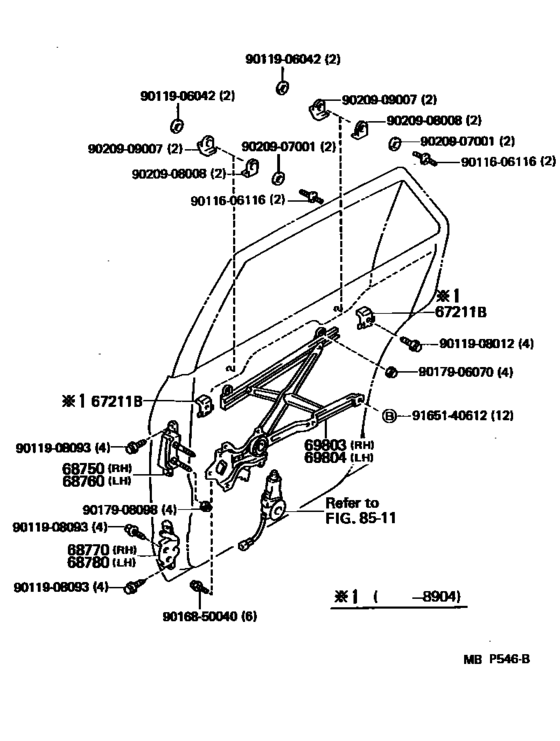

Rear Door Window Regulator & Hinge ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67211B
|
67211B
67211-22020
Stop, Front Door Window, Upper
[08.1988 - 04.1989] MX83 |
67211-22020 |
— | ||
|
68750
|
68750
68750-22040 Hinge Assy, Rear Door, Upper Rh[08.1988 - 07.1992] MX83 |
68750-22040 |
US $48.63 |
||
|
68760
|
68760
68760-22030 Hinge Assy, Rear Door, Upper Lh[08.1988 - 07.1992] MX83 |
68760-22030 |
US $48.63 |
||
|
68770
|
68770
68770-32010
Hinge Assy, Rear Door, Lower Rh
[08.1988 - 07.1992] MX83 |
68770-32010 |
— | ||
|
68780
|
68780
68780-32010
Hinge Assy, Rear Door, Lower Lh
[08.1988 - 07.1992] MX83 |
68780-32010 |
— | ||
|
69803
|
69803
69803-22110 Regulator Sub-Assy, Rear Door Window, Rh[08.1988 - 07.1992] MX83 |
69803-22110 |
US $99.01 |
||
|
69804
|
69804
69804-22110 Regulator Sub-Assy, Rear Door Window, Lh[08.1988 - 07.1992] MX83 |
69804-22110 |
US $99.01 |
||
|
9011606116
|
9011606116
90116-06116
New Genuine Part
|
90116-06116 |
— | ||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9011908012
|
9011908012
90119-08012 New Genuine Part |
90119-08012 |
US $1.46 |
||
| replacement | |||||
|
9011908012
|
9011908012
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908098
|
9017908098
90179-08098 New Genuine Part |
90179-08098 |
US $1.44 |
||
|
9020907001
|
9020907001
90209-07001 New Genuine Part |
90209-07001 |
US $1.46 |
||
|
9020908008
|
9020908008
90209-08008 New Genuine Part |
90209-08008 |
US $1.60 |
||
|
9020909007
|
9020909007
90209-09007 New Genuine Part |
90209-09007 |
US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
