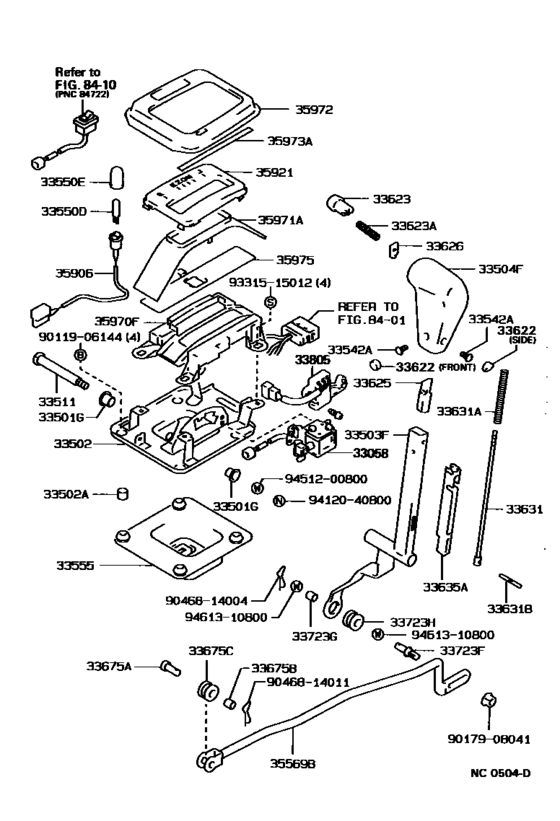

Shift Lever & Retainer ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33058-22020
Bracket Sub-Assy, Shift Lock Solenoid
[08.1988 - 07.1992] MX83 |
33058-22020 |
— | ||
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[08.1988 - 07.1992] MX83 |
90385-11003 |
from US $2.57 |
||
|
33502
|
33502
33502-22290 Plate Sub-Assy, Shift Lever[08.1988 - 07.1992] MX83 |
33502-22290 |
US $42.95 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[08.1988 - 07.1992] MX83 OD=8.8 |
90387-06065 |
US $2.88 |
||
|
33503F
|
33503F
33503-22290 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [08.1988 - 07.1992] MX83 |
33503-22290 |
US $116.48 |
||
|
33504F
|
33504F
33542-22170-02
Knob Sub-Assy, Shift Lever
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
33542-22170-02 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-22170-13
Knob Sub-Assy, Shift Lever
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
33542-22170-13 |
— | ||
|
33504F
|
33504F
33542-22170-03
Knob Sub-Assy, Shift Lever
[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
33542-22170-03 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-22170-13
Knob Sub-Assy, Shift Lever
[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
33542-22170-13 |
— | ||
|
33504F
|
33504F
33542-22170-04 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
33542-22170-04 |
US $70.91 |
||
| replacement | |||||
|
33504F
|
33504F
33542-22170-13
Knob Sub-Assy, Shift Lever
[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
33542-22170-13 |
— | ||
|
33504F
|
33504F
33542-22170-06 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1988 - 08.1989] MX83 SABLE,TRIM4# |
33542-22170-06 |
US $70.91 |
||
| replacement | |||||
|
33504F
|
33504F
33542-22170-13
Knob Sub-Assy, Shift Lever
[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
33542-22170-13 |
— | ||
|
33504F
|
33504F
33542-50010-04 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1989 - 07.1992] MX83 LEATHER,DARK BLUE,TRIM8# |
33542-50010-04 |
US $206.75 |
||
| replacement | |||||
|
33504F
|
33504F
33542-50010-03 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1989 - 07.1992] MX83 LEATHER,DARK BLUE,TRIM8# |
33542-50010-03 |
US $206.75 |
||
|
33504F
|
33504F
33542-50010-12 Knob Sub-Assy, Shift Lever[08.1989 - 07.1992] MX83 LEATHER,NEW MAROON,NEW MAROON,TRIM3# |
33542-50010-12 |
US $206.75 |
||
| replacement | |||||
|
33504F
|
33504F
33542-50010-03 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.1989 - 07.1992] MX83 LEATHER,NEW MAROON,NEW MAROON,TRIM3# |
33542-50010-03 |
US $206.75 |
||
|
33511
|
33511
33511-22170 Shaft, Control (For Floor Shift)[08.1988 - 07.1992] MX83 |
33511-22170 |
US $4.08 |
||
|
33542A
|
33542A
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[08.1988 - 07.1992] MX83 |
90159-40109 |
US $1.28 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 07.1992] MX83 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
33550E
|
33550E
90339-04014 Cap, Position Indicator Lamp[08.1988 - 07.1992] MX83 |
90339-04014 |
US $1.60 |
||
|
33555
|
33555
33555-22080 Boot, Shift Lever[08.1988 - 07.1992] MX83 |
33555-22080 |
US $30.43 |
||
|
33622
|
33622
33622-22080-02 Cover, Shift Lever Knob, No.1SHIFT LEVER KNOB, NO.1 [08.1988 - 07.1992] MX83 SIDE,NEW MAROON,TRIM3# |
33622-22080-02 |
US $3.64 |
||
| replacement | |||||
|
33622
|
33622
33622-22080-13
Cover, Shift Lever Knob, No.1
[08.1988 - 07.1992] MX83 SIDE,NEW MAROON,TRIM3# |
33622-22080-13 |
— | ||
|
33622
|
33622
33622-22080-03 Cover, Shift Lever Knob, No.1SHIFT LEVER KNOB, NO.1 [08.1988 - 08.1990] MX83..USA SIDE,MEDIUM GRAY,TRIM1# |
33622-22080-03 |
US $3.64 |
||
| replacement | |||||
|
33622
|
33622
33622-22080-13
Cover, Shift Lever Knob, No.1
[08.1988 - 08.1990] MX83..USA SIDE,MEDIUM GRAY,TRIM1# |
33622-22080-13 |
— | ||
|
33622
|
33622
33622-22080-04 Cover, Shift Lever Knob, No.1SHIFT LEVER KNOB, NO.1 [08.1988 - 08.1990] MX83 SIDE,DARK BLUE,TRIM8# |
33622-22080-04 |
US $3.64 |
||
| replacement | |||||
|
33622
|
33622
33622-22080-13
Cover, Shift Lever Knob, No.1
[08.1988 - 08.1990] MX83 SIDE,DARK BLUE,TRIM8# |
33622-22080-13 |
— | ||
|
33622
|
33622
33622-22080-06 Cover, Shift Lever Knob, No.1SHIFT LEVER KNOB, NO.1 [08.1988 - 09.1988] MX83 SIDE,SABLE,TRIM4# |
33622-22080-06 |
US $3.64 |
||
| replacement | |||||
|
33622
|
33622
33622-22080-13
Cover, Shift Lever Knob, No.1
[08.1988 - 09.1988] MX83 SIDE,SABLE,TRIM4# |
33622-22080-13 |
— | ||
|
33622
|
33622
33622-50010-04
Cover, Shift Lever Knob, No.1
[08.1989 - 07.1992] MX83 FRONT,DARK BLUE,DARK BLUE,TRIM8# |
33622-50010-04 |
— | ||
| replacement | |||||
|
33622
|
33622
33622-50010-B0
Cover, Shift Lever Knob, No.2
[08.1989 - 07.1992] MX83 FRONT,DARK BLUE,DARK BLUE,TRIM8# |
33622-50010-B0 |
— | ||
|
33622
|
33622
33622-50010-12 Cover, Shift Lever Knob, No.1[08.1989 - 07.1992] MX83 FRONT,MAROON,NEW MAROON,TRIM3# |
33622-50010-12 |
US $5.82 |
||
| replacement | |||||
|
33622
|
33622
33622-50010-B0
Cover, Shift Lever Knob, No.2
[08.1989 - 07.1992] MX83 FRONT,MAROON,NEW MAROON,TRIM3# |
33622-50010-B0 |
— | ||
|
33622
|
33622
33622-50010-13 Cover, Shift Lever Knob, No.1[08.1989 - 07.1992] MX83 FRONT,MEDIUM GRAY,MEDIUM GRAY,TRIM1# |
33622-50010-13 |
US $5.82 |
||
| replacement | |||||
|
33622
|
33622
33622-50010-B0
Cover, Shift Lever Knob, No.2
[08.1989 - 07.1992] MX83 FRONT,MEDIUM GRAY,MEDIUM GRAY,TRIM1# |
33622-50010-B0 |
— | ||
|
33622
|
33622
33622-50010-16 Cover, Shift Lever Knob, No.1[08.1989 - 07.1992] MX83 FRONT,SABLE,SABLE,TRIM4# |
33622-50010-16 |
US $5.82 |
||
| replacement | |||||
|
33622
|
33622
33622-50010-B0
Cover, Shift Lever Knob, No.2
[08.1989 - 07.1992] MX83 FRONT,SABLE,SABLE,TRIM4# |
33622-50010-B0 |
— | ||
|
33623
|
33623
33623-22070-02 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
33623-22070-02 |
US $33.78 |
||
| replacement | |||||
|
33623
|
33623
33623-22070-13 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
33623-22070-13 |
US $33.78 |
||
|
33623
|
33623
33623-22070-03 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
33623-22070-03 |
US $33.78 |
||
| replacement | |||||
|
33623
|
33623
33623-22070-13 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
33623-22070-13 |
US $33.78 |
||
|
33623
|
33623
33623-22070-04 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
33623-22070-04 |
US $33.78 |
||
| replacement | |||||
|
33623
|
33623
33623-22070-13 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
33623-22070-13 |
US $33.78 |
||
|
33623
|
33623
33623-22070-06 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 09.1988] MX83 SABLE,TRIM4# |
33623-22070-06 |
US $33.78 |
||
| replacement | |||||
|
33623
|
33623
33623-22070-13 Button, Shift Lever KnobSHIFT LEVER KNOB [08.1988 - 09.1988] MX83 SABLE,TRIM4# |
33623-22070-13 |
US $33.78 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1988 - 07.1992] MX83 |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-22040 Sleeve, Shift Lever Knob[08.1988 - 07.1992] MX83 |
33625-22040 |
US $9.76 |
||
|
33626
|
33626
33626-22010 Stopper, Shift Lever Button[08.1988 - 07.1992] MX83 |
33626-22010 |
US $2.33 |
||
|
33631
|
33631
33631-22050 Rod, Detent[08.1988 - 07.1992] MX83 |
33631-22050 |
US $8.15 |
||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[08.1988 - 07.1992] MX83 |
90501-07005 |
US $6.87 |
||
|
33631B
|
33631B
90256-04003 Pin, Slotted Spring (For Detent Rod)[08.1988 - 07.1992] MX83 |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-22020 Guide, Wire, No.1 (For Shift Lever)[08.1988 - 07.1992] MX83 |
33635-22020 |
US $8.01 |
||
|
33675A
|
33675A
90240-08120 Pin, W/hole (For Transmission Control Rod)[08.1988 - 07.1992] MX83 |
90240-08120 |
US $1.93 |
||
|
33675B
|
33675B
90389-08005 Bushing(For Gear Selecting Rod)[08.1988 - 07.1992] MX83 |
90389-08005 |
from US $1.79 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[08.1988 - 07.1992] MX83 |
90480-17177 |
from US $3.04 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[08.1988 - 07.1992] MX83 |
33723-22010 |
from US $10.24 |
||
|
33723G
|
33723G
90389-08005 Bushing(For Gear Selecting Rod)[08.1988 - 07.1992] MX83 |
90389-08005 |
from US $1.79 |
||
|
33723H
|
33723H
90480-17001 Grommet (For Floor Shift Control Shaft)[08.1988 - 07.1992] MX83 |
90480-17001 |
from US $3.84 |
||
|
33805
|
33805
33805-22020 Plate Sub-Assy, Shift Lock (For Floor Shift)SHIFT LOCK (FOR FLOOR SHIFT) [08.1988 - 07.1992] MX83 |
33805-22020 |
US $21.40 |
||
|
35569B
|
35569B
35569-22220 Rod, Transmission Control (For Floor Shift)[08.1988 - 07.1992] MX83 |
35569-22220 |
US $14.56 |
||
|
35906
|
35906
35906-14020 Wire Sub-Assy, Indicator Lamp[08.1988 - 07.1992] MX83 |
35906-14020 |
US $10.34 |
||
|
35921
|
35921
35921-22210
Plate, Control Position Indicator
[08.1988 - 03.1992] MX83 |
35921-22210 |
— | ||
| replacements | |||||
|
35921
|
35921
35921-22211
Plate, Control Position Indicator
[08.1988 - 03.1992] MX83 |
35921-22211 |
— | ||
|
35921
|
35921
35970-22092 Housing Assy, Position Indicator[08.1988 - 03.1992] MX83 |
35970-22092 |
US $126.67 |
||
|
35921
|
35921
35974-22082 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [08.1988 - 03.1992] MX83 |
35974-22082 |
US $36.40 |
||
|
35921
|
35921
35921-22211
Plate, Control Position Indicator
[03.1992 - 07.1992] MX83 |
35921-22211 |
— | ||
|
35970F
|
35970F
35970-22090 Housing Assy, Position Indicator[08.1988 - 11.1990] MX83 |
35970-22090 |
US $44.84 |
||
| replacements | |||||
|
35970F
|
35970F
35921-22211
Plate, Control Position Indicator
[08.1988 - 11.1990] MX83 |
35921-22211 |
— | ||
|
35970F
|
35970F
35971-22111 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [08.1988 - 11.1990] MX83 |
35971-22111 |
US $18.35 |
||
|
35970F
|
35970F
35970-22092 Housing Assy, Position Indicator[08.1988 - 11.1990] MX83 |
35970-22092 |
US $126.67 |
||
|
35970F
|
35970F
35970-22091 Housing Assy, Position Indicator[11.1990 - 03.1992] MX83 |
35970-22091 |
US $44.41 |
||
| replacements | |||||
|
35970F
|
35970F
35921-22211
Plate, Control Position Indicator
[11.1990 - 03.1992] MX83 |
35921-22211 |
— | ||
|
35970F
|
35970F
35970-22092 Housing Assy, Position Indicator[11.1990 - 03.1992] MX83 |
35970-22092 |
US $126.67 |
||
|
35970F
|
35970F
35970-22092 Housing Assy, Position Indicator[03.1992 - 07.1992] MX83 |
35970-22092 |
US $126.67 |
||
|
35971A
|
35971A
35971-22110 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [08.1988 - 11.1990] MX83 |
35971-22110 |
US $18.64 |
||
| replacements | |||||
|
35971A
|
35971A
35921-22211
Plate, Control Position Indicator
[08.1988 - 11.1990] MX83 |
35921-22211 |
— | ||
|
35971A
|
35971A
35970-22092 Housing Assy, Position Indicator[08.1988 - 11.1990] MX83 |
35970-22092 |
US $126.67 |
||
|
35971A
|
35971A
35971-22111 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [08.1988 - 11.1990] MX83 |
35971-22111 |
US $18.35 |
||
|
35971A
|
35971A
35974-22082 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [08.1988 - 11.1990] MX83 |
35974-22082 |
US $36.40 |
||
|
35971A
|
35971A
35971-22111 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [11.1990 - 07.1992] MX83 |
35971-22111 |
US $18.35 |
||
|
35972
|
35972
35972-22120
Cover, Position Indicator Housing
[08.1988 - 07.1992] MX83 |
35972-22120 |
— | ||
|
35973A
|
35973A
35973-22020 Attachment, Position Indicator Housing Cover[08.1988 - 07.1992] MX83 |
35973-22020 |
US $3.64 |
||
|
35975
|
35975
35975-22080 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [08.1988 - 03.1991] MX83 |
35975-22080 |
US $39.02 |
||
| replacement | |||||
|
35975
|
35975
35975-22081 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [08.1988 - 03.1991] MX83 |
35975-22081 |
US $38.44 |
||
|
35975
|
35975
35975-22081 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [03.1991 - 07.1992] MX83 |
35975-22081 |
US $38.44 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.68 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $0.96 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
