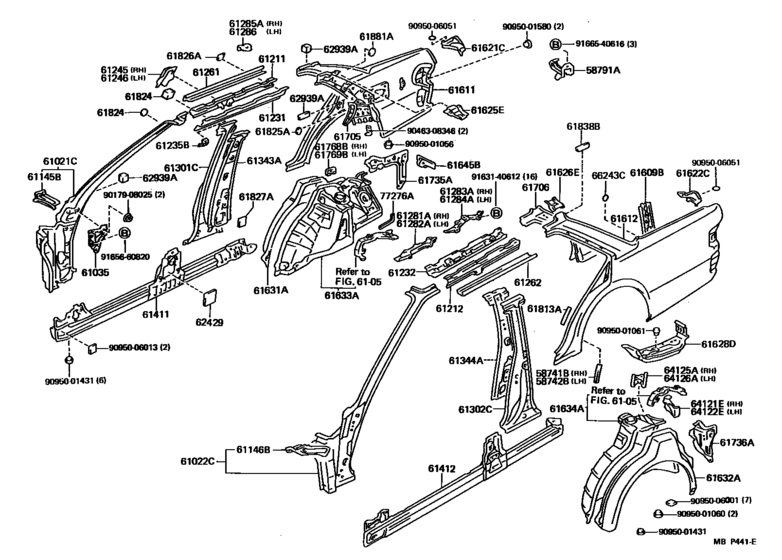

Side Member ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741B
|
58741B
58741-12060 Protector, Quarter Panel, Rh[08.1988 - 07.1992] MX83 |
58741-12060 |
US $11.79 |
||
|
58742B
|
58742B
58741-12060 Protector, Quarter Panel, Rh[08.1988 - 07.1992] MX83 |
58741-12060 |
US $11.79 |
||
|
58791A
|
58791A
58791-22020 Carrier, Jack[08.1988 -] MX83 |
58791-22020 |
US $18.64 |
||
|
61021C
|
61021C
61021-22260 Pillar Sub-Assy, Front Body, Rh[08.1988 - 07.1992] MX83..USA |
61021-22260 |
US $652.29 |
||
|
61021C
|
61021C
61021-22290 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [08.1988 - 07.1992] MX83..USA W(SUN ROOF) |
61021-22290 |
US $652.29 |
||
| replacement | |||||
|
61021C
|
61021C
61021-22260 Pillar Sub-Assy, Front Body, Rh[08.1988 - 07.1992] MX83..USA W(SUN ROOF) |
61021-22260 |
US $652.29 |
||
|
61022C
|
61022C
61022-22250 Pillar Sub-Assy, Front Body, Lh[08.1988 - 07.1992] MX83..USA |
61022-22250 |
US $652.29 |
||
|
61022C
|
61022C
61022-22280 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1988 - 07.1992] MX83..USA W(SUN ROOF) |
61022-22280 |
US $652.29 |
||
| replacement | |||||
|
61022C
|
61022C
61022-22250 Pillar Sub-Assy, Front Body, Lh[08.1988 - 07.1992] MX83..USA W(SUN ROOF) |
61022-22250 |
US $652.29 |
||
|
61035
|
61035
61165-22080 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1988 - 07.1992] MX83 |
61165-22080 |
US $18.78 |
||
|
61145B
|
61145B
61145-22060 Gusset, Front Body Pillar, Lower Rh[08.1988 - 07.1992] MX83 |
61145-22060 |
US $33.49 |
||
| replacement | |||||
|
61145B
|
61145B
61145-43010 Gusset, Front Body Pillar, Lower Rh[08.1988 - 07.1992] MX83 |
61145-43010 |
US $20.97 |
||
|
61146B
|
61146B
61146-22060 Gusset, Front Body Pillar, Lower Lh[08.1988 - 07.1992] MX83 |
61146-22060 |
US $33.49 |
||
|
61211
|
61211
61211-22100 Rail, Roof Side, Outer Rh[08.1988 - 07.1992] MX83 |
61211-22100 |
US $100.46 |
||
|
61212
|
61212
61212-22100 Rail, Roof Side, Outer Lh[08.1988 - 07.1992] MX83 |
61212-22100 |
US $100.46 |
||
|
61231
|
61231
61231-22210 Rail, Roof Side, Inner RhROOF SIDE, INNER RH [08.1988 - 07.1992] MX83..USA |
61231-22210 |
US $80.08 |
||
|
61232
|
61232
61232-22190 Rail, Roof Side, Inner LhROOF SIDE, INNER LH [08.1988 - 07.1992] MX83..USA |
61232-22190 |
US $80.08 |
||
|
61235B
|
61235B
61235-22050 Bracket, Assist GripASSIST GRIP [08.1988 - 07.1992] MX83..USA |
61235-22050 |
US $5.24 |
||
|
61245
|
61245
61245-22010 Reinforcement, Roof Side Rail, Outer Rh[08.1988 - 07.1992] MX83 |
61245-22010 |
US $13.69 |
||
|
61246
|
61246
61246-22010 Reinforcement, Roof Side Rail, Outer Lh[08.1988 - 07.1992] MX83 |
61246-22010 |
US $13.69 |
||
|
61261
|
61261
61207-22010 Channel, Roof Drip, Rh[08.1988 - 07.1992] MX83 |
61207-22010 |
US $36.40 |
||
|
61262
|
61262
61208-22010 Channel, Roof Drip, Lh[08.1988 - 07.1992] MX83 |
61208-22010 |
US $36.40 |
||
|
61281A
|
61281A
61281-22030 Bracket, Sliding Roof Housing Side Mounting, No.1[08.1988 - 07.1992] MX83 |
61281-22030 |
US $21.99 |
||
|
61282A
|
61282A
61282-22010 Bracket, Sliding Roof Housing Side Mounting, No.2[08.1988 - 07.1992] MX83 |
61282-22010 |
US $21.99 |
||
|
61283A
|
61283A
61283-22030 Bracket, Sliding Roof Housing Side Mounting, No.3 Rh[08.1988 - 07.1992] MX83 |
61283-22030 |
US $21.99 |
||
|
61284A
|
61284A
61284-22030 Bracket, Sliding Roof Housing Side Mounting, No.3 Lh[08.1988 - 07.1992] MX83 |
61284-22030 |
US $21.99 |
||
|
61285A
|
61285A
61285-22010 Bracket, Sliding Roof Housing Side Mounting, No.4[08.1988 - 07.1992] MX83 |
61285-22010 |
US $5.24 |
||
|
61286
|
61286
61285-22010 Bracket, Sliding Roof Housing Side Mounting, No.4[08.1988 - 07.1992] MX83 |
61285-22010 |
US $5.24 |
||
|
61301C
|
61301C
61301-22910 Pillar Sub-Assy, Center Body, Outer Rh[08.1988 - 07.1992] MX83 |
61301-22910 |
US $433.89 |
||
|
61302C
|
61302C
61302-22910 Pillar Sub-Assy, Center Body, Outer Lh[08.1988 - 07.1992] MX83 |
61302-22910 |
US $433.89 |
||
|
61343A
|
61343A
61343-22910 Pillar, Center Body, Inner RhCENTER BODY, INNER RH [08.1988 - 07.1992] MX83..USA |
61343-22910 |
US $182 |
||
|
61344A
|
61344A
61344-22910 Pillar, Center Body, Inner LhCENTER BODY, INNER LH [08.1988 - 07.1992] MX83..USA |
61344-22910 |
US $182 |
||
|
61411
|
61411
61401-22060 Panel, Rocker, Outer RhROCKER, OUTER RH [08.1988 - 07.1992] MX83..USA |
61401-22060 |
US $419.33 |
||
|
61412
|
61412
61402-22060 Panel, Rocker, Outer LhROCKER, OUTER LH [08.1988 - 07.1992] MX83..USA |
61402-22060 |
US $419.33 |
||
|
61609B
|
61609B
61609-22020 Brace Sub-Assy, Quarter Panel[08.1988 - 08.1990] MX83 |
61609-22020 |
US $70.91 |
||
| replacement | |||||
|
61609B
|
61609B
61609-22900 Brace Sub-Assy, Quarter Panel[08.1988 - 08.1990] MX83 |
61609-22900 |
US $70.91 |
||
|
61609B
|
61609B
61609-22900 Brace Sub-Assy, Quarter Panel[08.1990 -] MX83 |
61609-22900 |
US $70.91 |
||
|
61611
|
61611
61601-22960 Panel, Quarter, RhQUARTER, RH [08.1988 - 10.1988] MX83 |
61601-22960 |
US $813.90 |
||
| replacement | |||||
|
61611
|
61611
61601-22970 Panel, Quarter, RhQUARTER, RH [08.1988 - 10.1988] MX83 |
61601-22970 |
US $812.45 |
||
|
61611
|
61611
61601-22965 Panel, Quarter, RhQUARTER, RH [10.1988 - 08.1990] MX83 |
61601-22965 |
US $816.82 |
||
| replacement | |||||
|
61611
|
61611
61601-22970 Panel, Quarter, RhQUARTER, RH [10.1988 - 08.1990] MX83 |
61601-22970 |
US $812.45 |
||
|
61611
|
61611
61601-22970 Panel, Quarter, RhQUARTER, RH [08.1990 - 07.1992] MX83 |
61601-22970 |
US $812.45 |
||
|
61612
|
61612
61602-22934 Panel, Quarter, LhQUARTER, LH [08.1988 - 08.1990] MX83 |
61602-22934 |
US $818.27 |
||
| replacement | |||||
|
61612
|
61612
61602-22939 Panel, Quarter, Lh[08.1988 - 08.1990] MX83 |
61602-22939 |
US $812.45 |
||
|
61612
|
61612
61602-22940 Panel, Quarter, LhQUARTER, LH [08.1990 - 07.1992] MX83 |
61602-22940 |
US $812.45 |
||
| replacement | |||||
|
61612
|
61612
61602-22939 Panel, Quarter, Lh[08.1990 - 07.1992] MX83 |
61602-22939 |
US $812.45 |
||
|
61621C
|
61621C
61621-22090 Trough, Luggage Compartment Opening, Rh[08.1988 - 07.1992] MX83 |
61621-22090 |
US $29.99 |
||
|
61622C
|
61622C
61622-22090 Trough, Luggage Compartment Opening, Lh[08.1988 - 07.1992] MX83 |
61622-22090 |
US $29.99 |
||
|
61625E
|
61625E
61625-22010 Extension, Quarter Panel, Inner Rear Rh[08.1988 - 07.1992] MX83 |
61625-22010 |
US $18.78 |
||
|
61626E
|
61626E
61626-22010 Extension, Quarter Panel, Inner Rear Lh[08.1988 - 07.1992] MX83 |
61626-22010 |
US $18.78 |
||
|
61628D
|
61628D
61628-22030
Extension, Quarter Panel, Rear Lower Lh
[08.1988 - 07.1992] MX83 |
61628-22030 |
— | ||
|
61631A
|
61631A
61631-22907 Panel, Quarter Wheel House, Outer Rh[08.1988 - 07.1992] MX83 |
61631-22907 |
US $183.46 |
||
|
61632A
|
61632A
61632-22110 Panel, Quarter Wheel House, Outer Lh[08.1988 - 07.1992] MX83 |
61632-22110 |
US $180.54 |
||
|
61633A
|
61633A
61607-22240 Panel, Quarter Wheel House, Inner Rh[08.1988 - 07.1992] MX83 |
61607-22240 |
US $273.73 |
||
|
61634A
|
61634A
61608-22190 Panel, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [08.1988 - 07.1992] MX83 |
61608-22190 |
US $273.73 |
||
|
61645B
|
61645B
61645-22030 Gusset, Quarter Wheel House, Rear Rh[08.1988 - 07.1992] MX83 |
61645-22030 |
US $6.99 |
||
|
61705
|
61705
61705-22140 Panel Sub-Assy, Roof Side, Inner Rh[08.1988 - 10.1988] MX83 |
61705-22140 |
US $275.18 |
||
|
61705
|
61705
61705-22141 Panel Sub-Assy, Roof Side, Inner Rh[10.1988 -] MX83 |
61705-22141 |
US $211.12 |
||
|
61706
|
61706
61706-22140 Panel Sub-Assy, Roof Side, Inner Lh[08.1988 -] MX83 |
61706-22140 |
US $269.36 |
||
|
61735A
|
61735A
61735-22900 Panel, Roof Side, Inner Rear Rh[08.1988 - 07.1992] MX83 |
61735-22900 |
US $115.02 |
||
|
61736A
|
61736A
61736-22900 Panel, Roof Side, Inner Rear Lh[08.1988 - 07.1992] MX83 |
61736-22900 |
US $80.08 |
||
|
61768B
|
61768B
61768-22030 Reinforce, Belt Anchor To Roof Side, Inner Rear Rh[08.1990 - 07.1992] MX83 |
61768-22030 |
US $10.19 |
||
|
61769B
|
61769B
61769-22020 Reinforce, Belt Anchor To Roof Side, Inner Rear Lh[08.1990 - 07.1992] MX83 |
61769-22020 |
US $30.43 |
||
|
61813A
|
61813A
61813-22040 Plate, Dustproof, No.1 Rh[08.1988 - 08.1990] MX83 |
61813-22040 |
US $5.82 |
||
|
61824
|
61824
61824-22060 Plate, Noise Control, No.1[08.1988 -] MX83 OD=50,T=2.0 |
61824-22060 |
US $3.93 |
||
|
61824
|
61824
61824-22080 Plate, Noise Control, No.1[08.1988 - 08.1990] MX83 50X50,T=50 |
61824-22080 |
US $5.24 |
||
| replacement | |||||
|
61824
|
61824
61824-12110 Plate, Noise Control, No.1[08.1988 - 08.1990] MX83 50X50,T=50 |
61824-12110 |
US $15.58 |
||
|
61824
|
61824
62939-23010 Plate, Noise Control, No.1[08.1990 -] MX83 50 X 50,T=50 |
62939-23010 |
US $4.95 |
||
| replacement | |||||
|
61824
|
61824
61824-12110 Plate, Noise Control, No.1[08.1990 -] MX83 50 X 50,T=50 |
61824-12110 |
US $15.58 |
||
|
61825A
|
61825A
61825-22030 Plate, Noise Control, No.2[08.1988 -] MX83 |
61825-22030 |
US $10.05 |
||
| replacement | |||||
|
61825A
|
61825A
61826-22010 Plate, Noise Control, No.2[08.1988 -] MX83 |
61826-22010 |
US $6.70 |
||
|
61826A
|
61826A
61826-22020 Plate, Noise Control, No.3[08.1988 -] MX83 |
61826-22020 |
US $2.77 |
||
|
61827A
|
61827A
61827-22030 Plate, Noise Control, No.4[08.1988 -] MX83 |
61827-22030 |
US $7.28 |
||
|
61838B
|
61838B
61838-22020 Plate, Noise Control, No.5[08.1988 -] MX83 |
61838-22020 |
US $7.43 |
||
|
61881A
|
61881A
61881-22010 Plate, Dust Proof, No.8[08.1988 -] MX83 |
61881-22010 |
US $2.77 |
||
|
62429
|
62429
62429-22020 Cover, Center Pillar Service Hole[08.1988 -] MX83 |
62429-22020 |
US $29.99 |
||
|
62939A
|
62939A
62939-22050 Silencer, Quarter Vent[08.1988 - 08.1990] MX83 70X175,T=30 |
62939-22050 |
US $3.20 |
||
|
62939A
|
62939A
62939-22070 Silencer, Quarter Vent[08.1988 - 08.1990] MX83 |
62939-22070 |
US $4.66 |
||
| replacement | |||||
|
62939A
|
62939A
61824-12110 Plate, Noise Control, No.1[08.1988 - 08.1990] MX83 |
61824-12110 |
US $15.58 |
||
|
62939A
|
62939A
62939-23010 Plate, Noise Control, No.1[08.1990 -] MX83 70 X 70,T=70 |
62939-23010 |
US $4.95 |
||
| replacement | |||||
|
62939A
|
62939A
61824-12110 Plate, Noise Control, No.1[08.1990 -] MX83 70 X 70,T=70 |
61824-12110 |
US $15.58 |
||
|
64121E
|
64121E
64121-22050 Bracket, Luggage Compartment Door Hinge, Rh[08.1988 - 07.1992] MX83 |
64121-22050 |
US $6.99 |
||
|
64122E
|
64122E
64122-22060 Bracket, Luggage Compartment Door Hinge, Lh[08.1988 - 07.1992] MX83 |
64122-22060 |
US $8.15 |
||
|
64125A
|
64125A
64125-22020 Bracket, Upper Back Panel, Rh[08.1988 - 07.1992] MX83 |
64125-22020 |
US $13.69 |
||
|
64126A
|
64126A
64126-22010 Bracket, Upper Back Panel, Lh[08.1988 - 07.1992] MX83 |
64126-22010 |
US $13.69 |
||
|
66243C
|
66243C
66243-20010 Protector, Rear Body, No.1[09.1990 - 05.1992] MX83 |
66243-20010 |
US $2.20 |
||
|
66243C
|
66243C
90950-06051 Protector, Rear Body, No.1[05.1992 -] MX83 |
90950-06051 |
US $2.08 |
||
|
77276A
|
77276A
77276-23010 Protector, Fuel Hose[08.1988 -] MX83 |
77276-23010 |
US $49.65 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9046308346
|
9046308346
90463-08346 New Genuine Part |
90463-08346 |
US $2.77 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001431
|
9095001431
90950-01431 New Genuine Part |
90950-01431 |
US $5.39 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9095006013
|
9095006013
90950-06013 New Genuine Part |
90950-06013 |
US $1.92 |
||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.08 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
