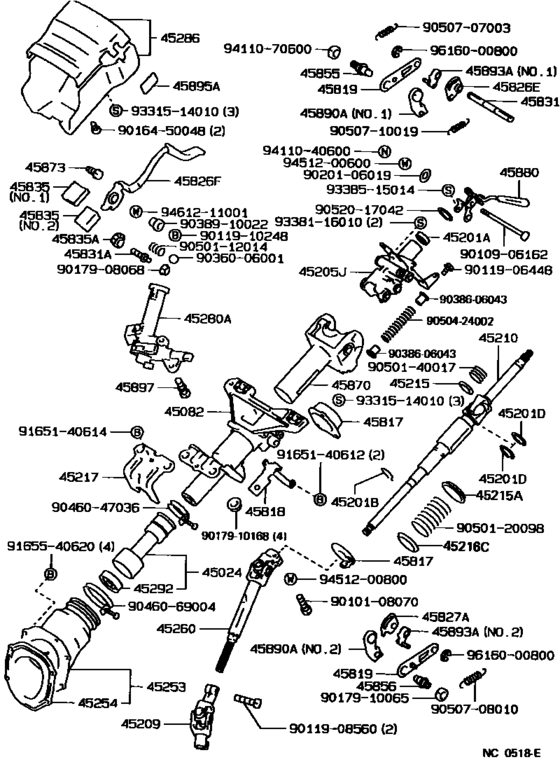

Steering Column & Shaft ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45024
|
45024
45024-22020 Cover Sub-Assy, Steering Column, Lower[08.1988 - 07.1990] MX83 |
45024-22020 |
US $15.58 |
||
| replacement | |||||
|
45024
|
45024
45024-22021 Cover Sub-Assy, Steering Column, Lower[08.1988 - 07.1990] MX83 |
45024-22021 |
US $15.29 |
||
|
45024
|
45024
45024-22021 Cover Sub-Assy, Steering Column, Lower[07.1990 - 07.1992] MX83 |
45024-22021 |
US $15.29 |
||
|
45082
|
45082
45082-22110 Bracket Sub-Assy, Break Away W/capsuleBREAK AWAY W/CAPSULE [08.1988 - 07.1992] MX83 |
45082-22110 |
US $85.90 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.1988 - 07.1992] MX83 |
90363-18005 |
from US $6.61 |
||
|
45201B
|
45201B
90520-16002 Ring, Shaft Snap(For Steering Main Shaft)[08.1988 - 08.1990] MX83 T=2.00,ID=15.3 |
90520-16002 |
US $1.31 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1988 - 07.1992] MX83 T=1.20 |
90520-17042 |
from US $0.86 |
||
|
45201D
|
45201D
90520-16002 Ring, Shaft Snap(For Steering Main Shaft)[08.1990 - 07.1992] MX83 |
90520-16002 |
US $1.31 |
||
|
45205J
|
45205J
45205-22250
Tube Sub-Assy, Steering Column, Upper
[08.1988 - 09.1988] MX83 |
45205-22250 |
— | ||
| replacement | |||||
|
45205J
|
45205J
45205-22251 Tube Sub-Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.1988 - 09.1988] MX83 |
45205-22251 |
US $63.04 |
||
|
45205J
|
45205J
45205-22251 Tube Sub-Assy, Steering Column, UpperSTEERING COLUMN, UPPER [09.1988 - 07.1992] MX83 |
45205-22251 |
US $63.04 |
||
|
45209
|
45209
45209-32020
Yoke Sub-Assy, Steering Sliding
[08.1988 - 07.1992] MX83 |
45209-32020 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-16010 Yoke Sub-Assy, Steering Sliding[08.1988 - 07.1992] MX83 |
45209-16010 |
US $137.64 |
||
|
45210
|
45210
45210-22150 Shaft Assy, Steering Main[08.1988 - 07.1992] MX83 |
45210-22150 |
US $190.74 |
||
| replacement | |||||
|
45210
|
45210
45210-30191 Shaft Assy, Steering Main[08.1988 - 07.1992] MX83 |
45210-30191 |
US $190.74 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[08.1988 - 07.1992] MX83 |
45215-12010 |
from US $1.66 |
||
|
45215A
|
45215A
45215-22020
Collar, Main Shaft Bearing Thrust
[08.1988 - 07.1992] MX83 |
45215-22020 |
— | ||
|
45216C
|
45216C
45216-22010
Shaft, Steering Sliding
[08.1988 - 07.1992] MX83 |
45216-22010 |
— | ||
|
45217
|
45217
45217-22010 Stopper, Steering Main ShaftSTEERING MAIN SHAFT [08.1988 - 07.1992] MX83 |
45217-22010 |
US $17.76 |
||
|
45253
|
45253
45025-22100 Cover, Steering Column HoleSTEERING COLUMN HOLE [08.1988 - 07.1992] MX83 |
45025-22100 |
US $55.62 |
||
|
45254
|
45254
45254-22080 Shield, Steering Column HoleSTEERING COLUMN HOLE [08.1988 - 07.1992] MX83 |
45254-22080 |
US $25.48 |
||
|
45260
|
45260
45260-22140
Shaft Assy, Steering Intermediate, No.2
[08.1988 - 07.1992] MX83 |
45260-22140 |
— | ||
|
45280A
|
45280A
45280-22470 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.1988 - 07.1992] MX83 |
45280-22470 |
US $206.75 |
||
|
45286
|
45286
45286-22936-02
Cover, Steering Column
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
45286-22936-02 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-22936-03
Cover, Steering Column
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
45286-22936-03 |
— | ||
|
45286
|
45286
45286-22936-03
Cover, Steering Column
[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,MIDIUM GREY,TRIM1# |
45286-22936-03 |
— | ||
|
45286
|
45286
45286-22936-04
Cover, Steering Column
[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
45286-22936-04 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-22936-03
Cover, Steering Column
[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
45286-22936-03 |
— | ||
|
45286
|
45286
45286-22936-06 Cover, Steering ColumnSTEERING COLUMN [08.1988 - 08.1989] MX83 SABLE,TRIM4# |
45286-22936-06 |
US $66.10 |
||
| replacement | |||||
|
45286
|
45286
45286-22936-03
Cover, Steering Column
[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
45286-22936-03 |
— | ||
|
45292
|
45292
45292-22130
Seal, Main Shaft Lower Dust
[08.1988 - 07.1992] MX83 |
45292-22130 |
— | ||
|
45817
|
45817
45817-22020 Stopper, Steering Shaft Thrust[08.1988 - 07.1992] MX83 UPR |
45817-22020 |
US $9.03 |
||
|
45817
|
45817
45817-22030
Stopper, Steering Shaft Thrust
[08.1988 - 07.1992] MX83 LWR |
45817-22030 |
— | ||
|
45818
|
45818
45818-22060 Bracket, Connector[08.1988 - 07.1992] MX83 |
45818-22060 |
US $14.71 |
||
|
45819
|
45819
45819-22040 Retainer, Tilt Lever[08.1988 - 07.1992] MX83 |
45819-22040 |
US $5.39 |
||
|
45826E
|
45826E
45826-22050 Lever, Steering Tilt[08.1988 - 07.1992] MX83 |
45826-22050 |
US $3.84 |
||
|
45826F
|
45826F
45826-22070 Lever, Steering TelescopicSTEERING TELESCOPIC [08.1988 - 07.1992] MX83..USA |
45826-22070 |
US $51.11 |
||
|
45827A
|
45827A
45827-22030 Lever, Steering Tilt Sub[08.1988 - 07.1992] MX83 |
45827-22030 |
US $3.84 |
||
|
45831
|
45831
45831-22020 Bolt, Tilt Lever Lock, No.1[08.1988 - 07.1992] MX83 |
45831-22020 |
US $4.89 |
||
|
45831A
|
45831A
45831-22010 Bolt, Telescope Lever Lock[08.1988 - 07.1992] MX83 |
45831-22010 |
US $5.39 |
||
|
45835
|
45835
45835-22030 Wedge, Lock[08.1988 - 07.1992] MX83 NO.1 |
45835-22030 |
US $7.72 |
||
|
45835
|
45835
45835-22040 Wedge, Lock[08.1988 - 07.1992] MX83 NO.2 |
45835-22040 |
US $14.41 |
||
|
45835A
|
45835A
45835-22020 Attachment, Tilt Lever Serration[08.1988 - 07.1992] MX83..USA |
45835-22020 |
US $14.41 |
||
|
45855
|
45855
45855-22010 Bolt, Tilt Steering, No.1[08.1988 - 08.1990] MX83 OD=9.989-9.998 |
45855-22010 |
US $8.15 |
||
|
45855
|
45855
45855-22020 Bolt, Tilt Steering, No.1[08.1988 - 08.1990] MX83 OD=9.998-10.007 |
45855-22020 |
US $8.15 |
||
|
45855
|
45855
45856-22010 Bolt, Tilt Steering, No.1[08.1990 - 07.1992] MX83 OD=9.989-9.998 |
45856-22010 |
US $5.42 |
||
|
45856
|
45856
45856-22010 Bolt, Tilt Steering, No.1[08.1988 - 07.1992] MX83 OD=9.989-9.998 |
45856-22010 |
US $5.42 |
||
|
45870
|
45870
45870-22270 Tube Assy, Steering Column[08.1988 - 08.1990] MX83 |
45870-22270 |
US $125.22 |
||
| replacement | |||||
|
45870
|
45870
45870-22340 Tube Assy, Steering Column[08.1988 - 08.1990] MX83 |
45870-22340 |
US $122.30 |
||
|
45870
|
45870
45870-22310 Tube Assy, Steering Column[08.1990 - 07.1992] MX83 |
45870-22310 |
US $123.76 |
||
| replacement | |||||
|
45870
|
45870
45870-22340 Tube Assy, Steering Column[08.1990 - 07.1992] MX83 |
45870-22340 |
US $122.30 |
||
|
45873
|
45873
45873-22040 Stopper, Steering Column Tube[08.1988 - 12.1989] MX83 |
45873-22040 |
US $3.20 |
||
| replacement | |||||
|
45873
|
45873
45873-50020 Stopper, Steering Column Tube[08.1988 - 12.1989] MX83 |
45873-50020 |
US $3.06 |
||
|
45873
|
45873
45873-50020 Stopper, Steering Column Tube[12.1989 - 07.1992] MX83 |
45873-50020 |
US $3.06 |
||
|
45880
|
45880
45880-22010 Lever Assy, Steering Tilt[08.1988 - 07.1992] MX83 |
45880-22010 |
US $38.29 |
||
|
45890A
|
45890A
45890-20110 Pawl Assy, Tilt Steering[09.1989 - 07.1992] MX83 NO.1 |
45890-20110 |
US $8.74 |
||
|
45890A
|
45890A
45890-22080
Pawl Assy, Tilt Steering
[08.1988 - 09.1989] MX83 NO.1 |
45890-22080 |
— | ||
| replacement | |||||
|
45890A
|
45890A
45890-20110 Pawl Assy, Tilt Steering[08.1988 - 09.1989] MX83 NO.1 |
45890-20110 |
US $8.74 |
||
|
45890A
|
45890A
45890-22090 Pawl Assy, Tilt Steering[08.1988 - 07.1992] MX83 NO.2 |
45890-22090 |
US $11.53 |
||
|
45893A
|
45893A
45893-22030 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK 1 |
45893-22030 |
US $7.13 |
||
|
45893A
|
45893A
45893-22040 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK 2 |
45893-22040 |
US $7.13 |
||
|
45893A
|
45893A
45893-22050 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK 3 |
45893-22050 |
US $7.13 |
||
|
45893A
|
45893A
45893-22060 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK 4 |
45893-22060 |
US $7.13 |
||
|
45893A
|
45893A
45893-22070 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK 5 |
45893-22070 |
US $7.13 |
||
|
45893A
|
45893A
45893-22080 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK A |
45893-22080 |
US $7.13 |
||
|
45893A
|
45893A
45893-22090 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK B |
45893-22090 |
US $7.13 |
||
|
45893A
|
45893A
45893-22100 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK C |
45893-22100 |
US $7.13 |
||
|
45893A
|
45893A
45893-22110 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK D |
45893-22110 |
US $7.13 |
||
|
45893A
|
45893A
45893-22120 Stopper, Tilt Steering Pawl[08.1988 - 07.1992] MX83 MARK E |
45893-22120 |
US $7.13 |
||
|
45895A
|
45895A
45895-22100 Plate, Tilt Steering CautionTILT STEERING CAUTION [08.1988 - 07.1992] MX83 |
45895-22100 |
US $3.35 |
||
|
45897
|
45897
45897-22080 Bolt, Steering Lock Set[08.1988 - 07.1992] MX83 |
45897-22080 |
US $10.63 |
||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9010906162
|
9010906162
90109-06162 Bolt(For Steering Tilt Lever) |
90109-06162 |
US $1.75 |
||
|
9011906448
|
9011906448
90119-06448 Screw(For Steering Column Tube) |
90119-06448 |
US $1.16 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9011910248
|
9011910248
90119-10248 New Genuine Part |
90119-10248 |
US $7.28 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9017910168
|
9017910168
90179-10168 New Genuine Part |
90179-10168 |
US $1.75 |
||
|
9020106019
|
9020106019
90201-06019 Washer, Plate(For Steering Tilt Lever) |
90201-06019 |
US $2.18 |
||
|
9036006001
|
9036006001
90360-06001 Ball (For Hoist Cylinder) |
90360-06001 |
US $1.60 |
||
|
9038606043
|
9038606043
90386-06043 Bush(For Steering Column Tube) |
90386-06043 |
US $0.96 |
||
|
9038910022
|
9038910022
90389-10022 Collar(For Steering Telescopic Lever) |
90389-10022 |
US $3.49 |
||
|
9046047036
|
9046047036
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet) |
90460-47036 |
US $3.52 |
||
|
9046069004
|
9046069004
90460-69004 New Genuine Part |
90460-69004 |
US $3.06 |
||
|
9050112014
|
9050112014
90501-12014 Spring, Compression(For Steering Telescopic Lever) |
90501-12014 |
US $4.22 |
||
|
9050120098
|
9050120098
90501-20098
Spring, Compression(For Steering Main Shaft)
|
90501-20098 |
— | ||
|
9050140017
|
9050140017
90501-40017 Spring, Compression(For Steering Main Shaft) |
90501-40017 |
from US $4.02 |
||
|
9050424002
|
9050424002
90504-24002 Spring(For Steering Column Tube) |
90504-24002 |
US $4.37 |
||
|
9050707003
|
9050707003
90507-07003 Spring, Tension W/damper(For Adjuster Memory Cover) |
90507-07003 |
US $1.22 |
||
|
9050708010
|
9050708010
90507-08010 Spring, Tension(For Steering Tilt Lever) |
90507-08010 |
US $1.16 |
||
|
9050710019
|
9050710019
90507-10019 Spring, Tension(For Tilt Steering Pawl Stopper) |
90507-10019 |
US $1.89 |
||
|
9052017042
|
9052017042
90520-17042 Ring, Shaft Snap(For Steering Main Shaft) |
90520-17042 |
from US $0.86 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $0.87 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.76 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411070600
|
9411070600
94110-70600 New Genuine Part |
94110-70600 |
US $1.75 |
||
| replacement | |||||
|
9411070600
|
9411070600
94130-00602 New Genuine Part |
94130-00602 |
US $0.87 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
