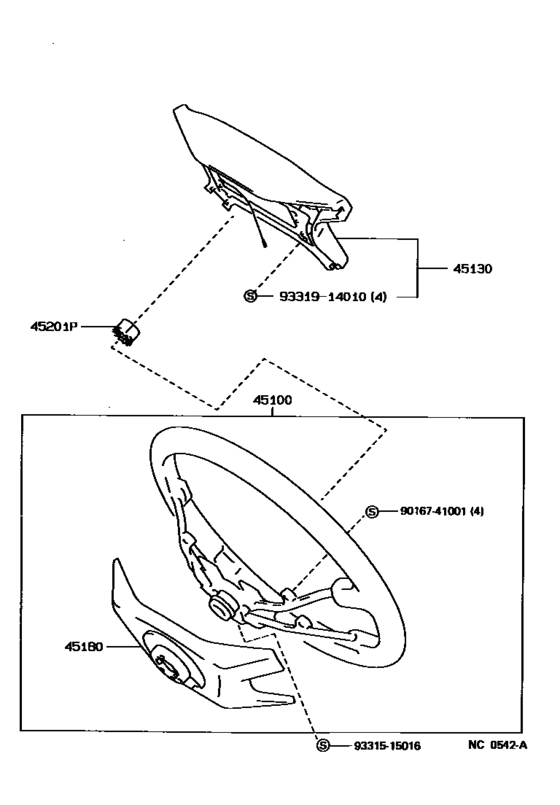

Steering Wheel ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-22370-02 Wheel Assy, Steering[08.1988 - 08.1989] MX83 NEW MAROON,TRIM3# |
45100-22370-02 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[08.1988 - 08.1989] MX83 NEW MAROON,TRIM3# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22370-03 Wheel Assy, Steering[08.1988 - 03.1990] MX83..USA MEDIUM GRAY,TRIM1# |
45100-22370-03 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[08.1988 - 03.1990] MX83..USA MEDIUM GRAY,TRIM1# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22370-04 Wheel Assy, Steering[08.1988 - 08.1989] MX83 DARK BLUE,TRIM8# |
45100-22370-04 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[08.1988 - 08.1989] MX83 DARK BLUE,TRIM8# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22370-06 Wheel Assy, Steering[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
45100-22370-06 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22371-02 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA NEW MAROON,TRIM3# |
45100-22371-02 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA NEW MAROON,TRIM3# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22371-03 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
45100-22371-03 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22371-04 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA DARK BLUE,TRIM8# |
45100-22371-04 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA DARK BLUE,TRIM8# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22371-06 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA SABLE,TRIM4# |
45100-22371-06 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-22372-B0 Wheel Assy, Steering[03.1990 - 08.1990] MX83..USA SABLE,TRIM4# |
45100-22372-B0 |
US $343.62 |
||
|
45100
|
45100
45100-22380-02 Wheel Assy, Steering[08.1988 - 08.1989] MX83 W(LEATHER SEAT),NEW MAROON,TRIM3# |
45100-22380-02 |
US $856.13 |
||
| replacement | |||||
|
45100
|
45100
45100-22382-S4
Wheel Assy, Steering
[08.1988 - 08.1989] MX83 W(LEATHER SEAT),NEW MAROON,TRIM3# |
45100-22382-S4 |
— | ||
|
45100
|
45100
45100-22380-03
Wheel Assy, Steering
[08.1988 - 08.1990] MX83..USA W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
45100-22380-03 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-22382-S4
Wheel Assy, Steering
[08.1988 - 08.1990] MX83..USA W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
45100-22382-S4 |
— | ||
|
45100
|
45100
45100-22380-04 Wheel Assy, Steering[08.1988 - 08.1989] MX83 W(LEATHER SEAT),DARK BLUE,TRIM8# |
45100-22380-04 |
US $856.13 |
||
| replacement | |||||
|
45100
|
45100
45100-22382-S4
Wheel Assy, Steering
[08.1988 - 08.1989] MX83 W(LEATHER SEAT),DARK BLUE,TRIM8# |
45100-22382-S4 |
— | ||
|
45100
|
45100
45100-22380-06 Wheel Assy, Steering[08.1988 - 08.1989] MX83 W(LEATHER SEAT),SABLE,TRIM4# |
45100-22380-06 |
US $856.13 |
||
| replacement | |||||
|
45100
|
45100
45100-22382-S4
Wheel Assy, Steering
[08.1988 - 08.1989] MX83 W(LEATHER SEAT),SABLE,TRIM4# |
45100-22382-S4 |
— | ||
|
45130
|
45130
45130-22340-02 Button Assy, Horn[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
45130-22340-02 |
US $199.47 |
||
| replacement | |||||
|
45130
|
45130
45130-22340-03 Button Assy, Horn[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
45130-22340-03 |
US $199.47 |
||
|
45130
|
45130
45130-22340-03 Button Assy, Horn[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
45130-22340-03 |
US $199.47 |
||
|
45130
|
45130
45130-22340-04 Button Assy, Horn[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
45130-22340-04 |
US $199.47 |
||
| replacement | |||||
|
45130
|
45130
45130-22340-03 Button Assy, Horn[08.1988 - 08.1990] MX83 DARK BLUE,TRIM8# |
45130-22340-03 |
US $199.47 |
||
|
45130
|
45130
45130-22340-06 Button Assy, Horn[08.1988 - 08.1989] MX83 BROWN,TRIM4# |
45130-22340-06 |
US $198.02 |
||
| replacement | |||||
|
45130
|
45130
45130-22340-03 Button Assy, Horn[08.1988 - 08.1989] MX83 BROWN,TRIM4# |
45130-22340-03 |
US $199.47 |
||
|
45180
|
45180
45180-22030-02
Cover Sub-Assy, Steering Wheel
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
45180-22030-02 |
— | ||
| replacement | |||||
|
45180
|
45180
45180-22030-03
Cover Sub-Assy, Steering Wheel
[08.1988 - 07.1992] MX83 NEW MAROON,TRIM3# |
45180-22030-03 |
— | ||
|
45180
|
45180
45180-22030-03
Cover Sub-Assy, Steering Wheel
[08.1988 - 08.1990] MX83..USA MEDIUM GRAY,TRIM1# |
45180-22030-03 |
— | ||
|
45180
|
45180
45180-22030-04 Cover Sub-Assy, Steering Wheel[08.1988 - 11.1988] MX83..USA DARK BLUE,TRIM8# |
45180-22030-04 |
US $30.87 |
||
| replacement | |||||
|
45180
|
45180
45180-22030-03
Cover Sub-Assy, Steering Wheel
[08.1988 - 11.1988] MX83..USA DARK BLUE,TRIM8# |
45180-22030-03 |
— | ||
|
45180
|
45180
45180-22030-06 Cover Sub-Assy, Steering Wheel[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
45180-22030-06 |
US $30.87 |
||
| replacement | |||||
|
45180
|
45180
45180-22030-03
Cover Sub-Assy, Steering Wheel
[08.1988 - 08.1989] MX83 SABLE,TRIM4# |
45180-22030-03 |
— | ||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[04.1990 - 07.1992] MX83 |
90179-12071 |
from US $1.58 |
||
|
45201P
|
45201P
90179-12086 Nut, Steering Wheel Set[08.1988 - 04.1990] MX83 |
90179-12086 |
US $4.80 |
||
|
9016741001
|
9016741001
90167-41001 New Genuine Part |
90167-41001 |
US $2.80 |
||
|
9331515016
|
9331515016
93315-15016 SCREW WWASHER |
93315-15016 |
US $2.08 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
