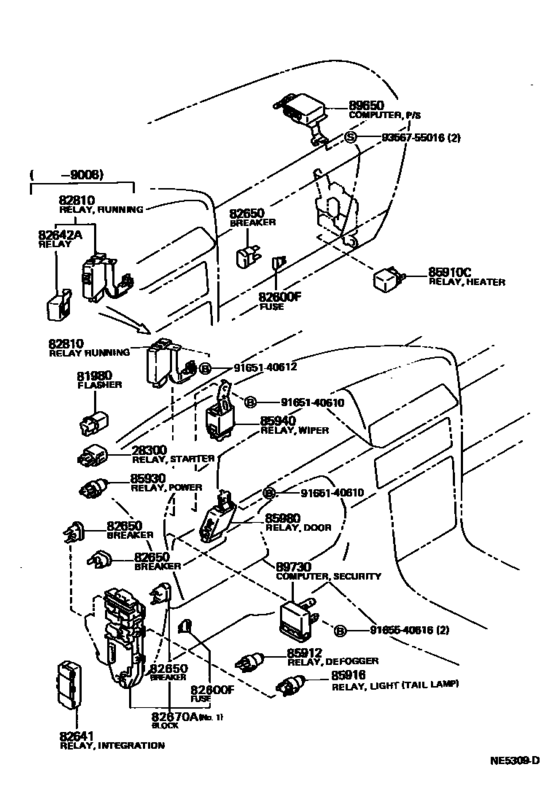

Switch & Relay & Computer ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-16010
Relay Assy, Starter
[08.1988 - 07.1992] 7MGE..MX83..USA |
28300-16010 |
— | ||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1988 - 07.1992] MX83 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1988 - 07.1992] MX83 |
81980-32010 |
from US $54.42 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 08.1990] MX83 10A,COWL SIDE |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 07.1992] MX83 15A,E/G ROOM J/B |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 07.1992] MX83 20A,COWL SIDE |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1990 - 07.1992] MX83 7.5A,COWL SIDE |
90982-09005 |
from US $1.03 |
||
|
82641
|
82641
82641-22040 Relay, Integration No.1INTEGRATION NO.1 [08.1988 - 08.1990] MX83..USA |
82641-22040 |
US $234.42 |
||
|
82641
|
82641
82641-22050 Relay, Integration No.1[08.1990 - 07.1992] MX83..USA |
82641-22050 |
US $206.75 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[08.1988 - 08.1990] MX83 30A |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-20020 Breaker Assy, Wiring Circuit, No.1[08.1988 - 07.1992] MX83 40A |
82650-20020 |
US $17.04 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[08.1988 - 07.1992] MX83 20A |
82650-35010 |
US $18 |
||
|
82670A
|
82670A
82670-22040 Block Assy, Junction, No.1[08.1988 - 08.1989] MX83 ENGINE ROOM |
82670-22040 |
US $244.61 |
||
|
82670A
|
82670A
82670-22070 Block Assy, Junction, No.1[08.1988 - 08.1990] MX83 NO.1 |
82670-22070 |
US $262.08 |
||
|
82670A
|
82670A
82670-22090 Block Assy, Junction, No.1[08.1990 - 07.1992] MX83 NO.1 |
82670-22090 |
US $173.26 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[08.1988 - 07.1992] MX83 |
90987-04002 |
from US $25.27 |
||
|
85912
|
85912
90987-02002
Relay, Ignition, No.1
[08.1988 - 07.1992] MX83 MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 MARUKO |
90987-02004 |
from US $28.51 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 NIPPONDENSO |
90987-02004 |
from US $28.51 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1988 - 07.1992] MX83 MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 MARUKO,TAIL LAMP |
90987-02004 |
from US $28.51 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 *ND,TAIL LAMP |
90987-02004 |
from US $28.51 |
||
|
85916
|
85916
90987-02006 Relay[08.1988 - 07.1992] MX83 HEADLAMP |
90987-02006 |
from US $27.28 |
||
|
85930
|
85930
90987-02002
Relay, Ignition, No.1
[08.1988 - 07.1992] MX83 MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85930
|
85930
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 MARUKO |
90987-02004 |
from US $28.51 |
||
|
85930
|
85930
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 NIPPONDENSO |
90987-02004 |
from US $28.51 |
||
|
85940
|
85940
85940-22130 Relay Assy, Windshield WiperWINDSHIELD WIPER [08.1988 - 07.1992] MX83 |
85940-22130 |
US $199.47 |
||
|
85980
|
85980
85980-22180 Relay Assy, Door ControlDOOR CONTROL [08.1988 - 08.1990] MX83 |
85980-22180 |
US $365.46 |
||
|
85980
|
85980
85980-22200 Relay Assy, Door ControlDOOR CONTROL [08.1990 - 07.1992] MX83 TOYOTA |
85980-22200 |
US $362.54 |
||
|
89650
|
89650
89650-22060 Computer Assy, Power Steering[08.1988 - 12.1988] MX83 |
89650-22060 |
US $299.94 |
||
| replacement | |||||
|
89650
|
89650
89650-22130 Computer Assy, Power Steering[08.1988 - 12.1988] MX83 |
89650-22130 |
US $298.48 |
||
|
89650
|
89650
89650-22090 Computer Assy, Power Steering[12.1988 - 08.1990] MX83 |
89650-22090 |
US $301.39 |
||
| replacement | |||||
|
89650
|
89650
89650-22130 Computer Assy, Power Steering[12.1988 - 08.1990] MX83 |
89650-22130 |
US $298.48 |
||
|
89650
|
89650
89650-22130 Computer Assy, Power Steering[08.1990 - 07.1992] MX83 |
89650-22130 |
US $298.48 |
||
|
89730
|
89730
89730-22060 Computer Assy, Security WarningSECURITY WARNING [08.1988 - 07.1992] MX83..USA |
89730-22060 |
US $457.18 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
