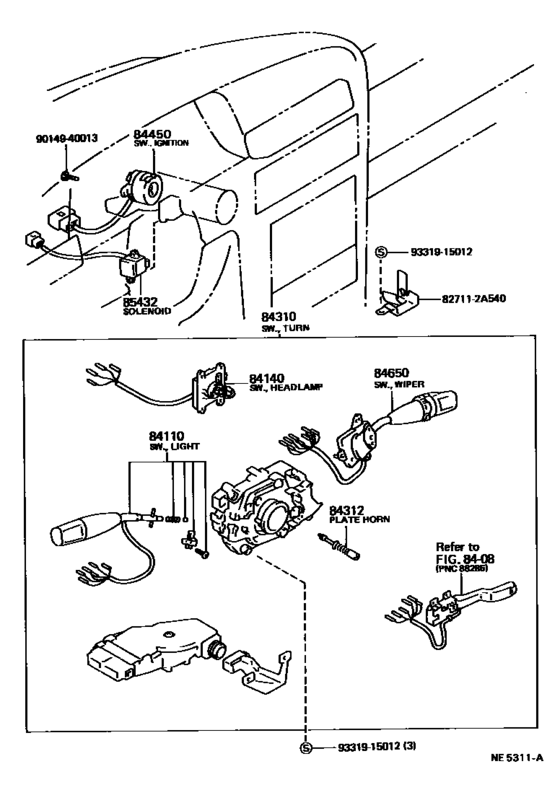

Switch & Relay & Computer ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80016
Switch Assy, Light Control, No.1
[08.1988 - 05.1992] MX83 |
84112-80016 |
— | ||
|
84110
|
84110
84112-80137 Switch Assy, Light Control, No.1[05.1992 - 07.1992] MX83 |
84112-80137 |
US $70.91 |
||
|
84140
|
84140
84140-22080 Switch Assy, Headlamp Dimmer[08.1988 - 07.1992] MX83 |
84140-22080 |
US $77.17 |
||
| replacement | |||||
|
84140
|
84140
84140-20240 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.1988 - 07.1992] MX83 |
84140-20240 |
US $77.17 |
||
|
84310
|
84310
84310-22780 Switch Assy, Turn Signal[08.1988 - 08.1990] MX83 |
84310-22780 |
US $339.25 |
||
| replacement | |||||
|
84310
|
84310
84310-2A240 Switch Assy, Turn Signal[08.1988 - 08.1990] MX83 |
84310-2A240 |
US $313.04 |
||
|
84310
|
84310
84310-2A240 Switch Assy, Turn Signal[08.1990 - 07.1992] MX83 |
84310-2A240 |
US $313.04 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[08.1988 - 07.1992] MX83 |
84312-12040 |
from US $6.51 |
||
|
84450
|
84450
84450-22190 Switch Assy, Ignition Or Starter[08.1988 - 08.1990] MX83 |
84450-22190 |
US $64.79 |
||
|
84450
|
84450
84450-22220 Switch Assy, Ignition Or Starter[08.1990 - 07.1992] MX83 |
84450-22220 |
US $75.71 |
||
|
84650
|
84650
84652-22490 Switch Assy, Windshield Wiper[08.1988 - 07.1992] MX83 |
84652-22490 |
US $136.86 |
||
|
85432
|
85432
85432-22010 Solenoid, Key Inter Lock[08.1988 - 07.1992] MX83 |
85432-22010 |
US $64.21 |
||
|
827112A540
|
827112A540
82711-2A540 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2A540 |
US $15.43 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
