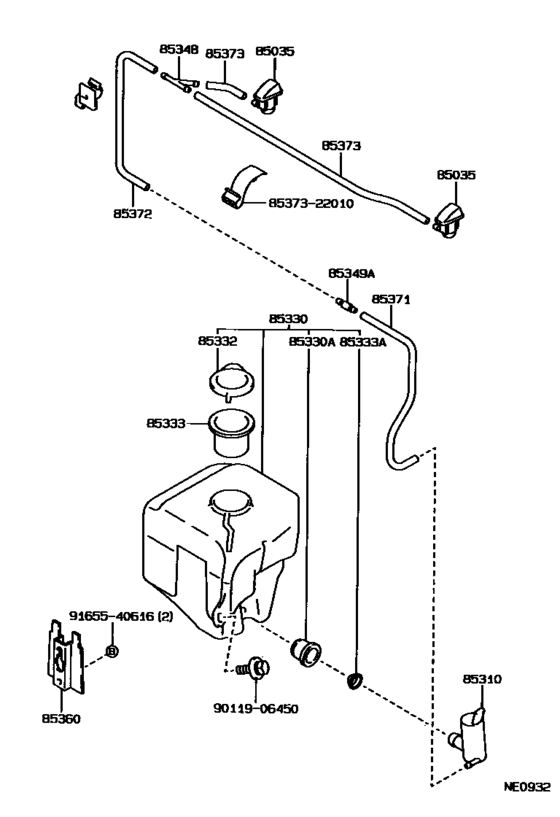

Windshield Washer ([08.1988 - 07.1992] (8808-9207)USA) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85035-22290-01
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 BLACK,177 ,202 ,3H3 ,4K2 ,8E3 |
85035-22290-01 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-22291-01
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 BLACK,177 ,202 ,3H3 ,4K2 ,8E3 |
85035-22291-01 |
— | ||
|
85035
|
85035
85035-22290-02
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 RED MICA,3H4 |
85035-22290-02 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-22291-02
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 RED MICA,3H4 |
85035-22291-02 |
— | ||
|
85035
|
85035
85035-22290-03
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 SUPER SILVER 3 M.,176 |
85035-22290-03 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-22291-03
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 SUPER SILVER 3 M.,176 |
85035-22291-03 |
— | ||
|
85035
|
85035
85035-22290-04
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 LIGHT BLUE M. M.,8G2 |
85035-22290-04 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-22291-04
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 LIGHT BLUE M. M.,8G2 |
85035-22291-04 |
— | ||
|
85035
|
85035
85035-22290-08
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 WHITE PEARL MICA,049 |
85035-22290-08 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-20110-A1
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 WHITE PEARL MICA,049 |
85381-20110-A1 |
— | ||
|
85035
|
85035
85035-22290-13
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 GRAY M. M.,170 |
85035-22290-13 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-22291-13
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 GRAY M. M.,170 |
85035-22291-13 |
— | ||
|
85035
|
85035
85035-22290-18
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 SUPER WHITE 4,050 |
85035-22290-18 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-22291-18
Nozzle Sub-Assy, Washer
[08.1988 - 10.1988] MX83 SUPER WHITE 4,050 |
85035-22291-18 |
— | ||
|
85035
|
85035
85035-22291-01
Nozzle Sub-Assy, Washer
[10.1988 - 08.1989] MX83 BLACK,177 ,202 ,3H3 ,4K2 ,8E3 |
85035-22291-01 |
— | ||
|
85035
|
85035
85035-22291-02
Nozzle Sub-Assy, Washer
[10.1988 - 08.1990] MX83 RED MICA,3H4 |
85035-22291-02 |
— | ||
|
85035
|
85035
85035-22291-03
Nozzle Sub-Assy, Washer
[10.1988 - 07.1992] MX83 SUPER SILVER 3 M.,176 |
85035-22291-03 |
— | ||
|
85035
|
85035
85035-22291-04
Nozzle Sub-Assy, Washer
[10.1988 - 07.1992] MX83 LIGHT BLUE M. M.,8G2 |
85035-22291-04 |
— | ||
|
85035
|
85035
85035-22291-05
Nozzle Sub-Assy, Washer
[08.1990 - 07.1992] MX83 BEIGE M,4J1 |
85035-22291-05 |
— | ||
|
85035
|
85035
85035-22291-08
Nozzle Sub-Assy, Washer
[10.1988 - 07.1992] MX83 WHITE PEARL MICA,049 |
85035-22291-08 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-20110-A1
Nozzle Sub-Assy, Washer
[10.1988 - 07.1992] MX83 WHITE PEARL MICA,049 |
85381-20110-A1 |
— | ||
|
85035
|
85035
85035-22291-12
Nozzle Sub-Assy, Washer
[08.1990 - 07.1992] MX83 RED M.M,3J9 |
85035-22291-12 |
— | ||
|
85035
|
85035
85035-22291-13
Nozzle Sub-Assy, Washer
[10.1988 - 08.1990] MX83 GRAY M. M.,170 |
85035-22291-13 |
— | ||
|
85035
|
85035
85035-22291-18
Nozzle Sub-Assy, Washer
[10.1988 - 07.1992] MX83 SUPER WHITE 4,050 |
85035-22291-18 |
— | ||
|
85310
|
85310
85310-14080
Motor And Pump Assy, Windshield Washer
[08.1988 - 07.1992] MX83 |
85310-14080 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-50020 Motor And Pump Assy, Windshield Washer[08.1988 - 07.1992] MX83 |
85330-50020 |
US $69.54 |
||
|
85330
|
85330
85331-22470
Jar Assy, Windshield Washer
[08.1988 - 07.1992] MX83..USA |
85331-22470 |
— | ||
|
85330A
|
85330A
90099-32103
Bush, Windshield Washer Jar
[08.1988 - 07.1992] MX83 |
90099-32103 |
— | ||
|
85332
|
85332
85332-22470
Cap, Windshield Washer Jar
[08.1988 - 07.1992] MX83..USA |
85332-22470 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-34050 Cap Assy, Windshield Washer[08.1988 - 07.1992] MX83..USA |
85316-34050 |
from US $1.75 |
||
|
85333
|
85333
85333-20010
Filter, Windshield Washer Jar
[08.1988 - 07.1992] MX83..USA |
85333-20010 |
— | ||
|
85333A
|
85333A
85333-20020
Filter, Windshield Washer Jar
[08.1988 - 07.1992] MX83 |
85333-20020 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[08.1988 - 07.1992] MX83 |
85348-12250 |
from US $0.55 |
||
|
85349A
|
85349A
85334-22470 Joint, Windshield Washer Hose, No.1[08.1988 - 07.1992] MX83..USA |
85334-22470 |
US $0.84 |
||
|
85360
|
85360
85361-22440 Bracket Assy, Windshield Washer[08.1988 - 07.1992] MX83..USA |
85361-22440 |
US $10.56 |
||
|
85371
|
85371
90099-33334
Hose, Windshield Washer (From Joint To Joint)
[08.1988 - 07.1992] MX83..USA L=1160; MX83..CND L=1160,NO.2,NO.1 |
90099-33334 |
— | ||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.1990 - 07.1992] MX83 L=1450 |
90099-33080 |
from US $6.16 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[08.1988 - 07.1990] MX83 L=1000 |
90099-33299 |
US $4.37 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.1990 - 07.1992] MX83 L=1450,RH |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33087
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1988 - 07.1992] MX83 *H,L=40,LH |
90099-33087 |
— | ||
| replacement | |||||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1988 - 07.1992] MX83 *H,L=40,LH |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33094
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1988 - 07.1990] MX83 *H,L=580,RH |
90099-33094 |
— | ||
| replacement | |||||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1988 - 07.1990] MX83 *H,L=580,RH |
90099-33080 |
from US $6.16 |
||
|
8537322010
|
8537322010
85373-22010 Hose, Windshield Washer (from Joint To Nozzle) |
85373-22010 |
US $2.33 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
