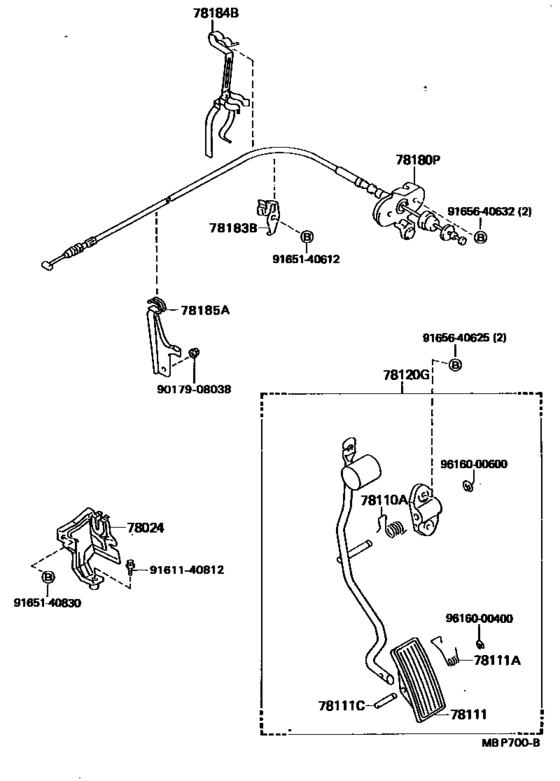

Accelerator Link ([08.1988 - ] (8808- )MX83) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- MX83
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-22140 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [08.1988 - 02.1993] MX83 |
78024-22140 |
US $54.31 |
||
|
78110A
|
78110A
90508-18060 Spring (For Accelerator Pedal Rod)[08.1988 - 08.1996] GX81,MX83,RX8#..4FC |
90508-18060 |
US $1.44 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1988 - 01.1990] GX81,LX80,MX8#,RX8# |
78111-12100 |
from US $18.54 |
||
|
78111
|
78111
78111-22010
Pedal, Accelerator
[01.1990 - 08.1996] GX81,LX80,MX8#,RX8# |
78111-22010 |
— | ||
|
78111A
|
78111A
90508-23108
Spring (For Accelerator Pedal)
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
90508-23108 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-22270 Rod Assy, Accelerator Pedal[08.1988 - 02.1993] GX81,MX83,RX80..RHD..4FC |
78120-22270 |
US $56.78 |
||
|
78180P
|
78180P
78180-2A040 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1988 - 02.1993] MX83 |
78180-2A040 |
US $55.04 |
||
|
78183B
|
78183B
78183-22060 Clamp, Accelerator Control Cable[08.1988 - 04.1991] GX81,MX83,RX80..RHD |
78183-22060 |
US $10.05 |
||
| replacement | |||||
|
78183B
|
78183B
78183-22061 Clamp, Accelerator Control Cable[08.1988 - 04.1991] GX81,MX83,RX80..RHD |
78183-22061 |
US $9.90 |
||
|
78184B
|
78184B
78184-22230 Bracket, Accelerator Control Cable[08.1988 - 10.1988] GX81,MX83..RHD |
78184-22230 |
US $10.05 |
||
| replacement | |||||
|
78184B
|
78184B
78184-22231 Bracket, Accelerator Control Cable[08.1988 - 10.1988] GX81,MX83..RHD |
78184-22231 |
US $9.90 |
||
|
78185A
|
78185A
78183-14020 Clamp, Accelerator Control Cable[08.1988 - 02.1993] MX83 |
78183-14020 |
US $17.18 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.82 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9165640625
|
9165640625
91656-40625 New Genuine Part |
91656-40625 |
US $1.89 |
||
| replacement | |||||
|
9165640625
|
9165640625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9165640632
|
9165640632
91656-40632 New Genuine Part |
91656-40632 |
US $1.89 |
||
| replacement | |||||
|
9165640632
|
9165640632
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
