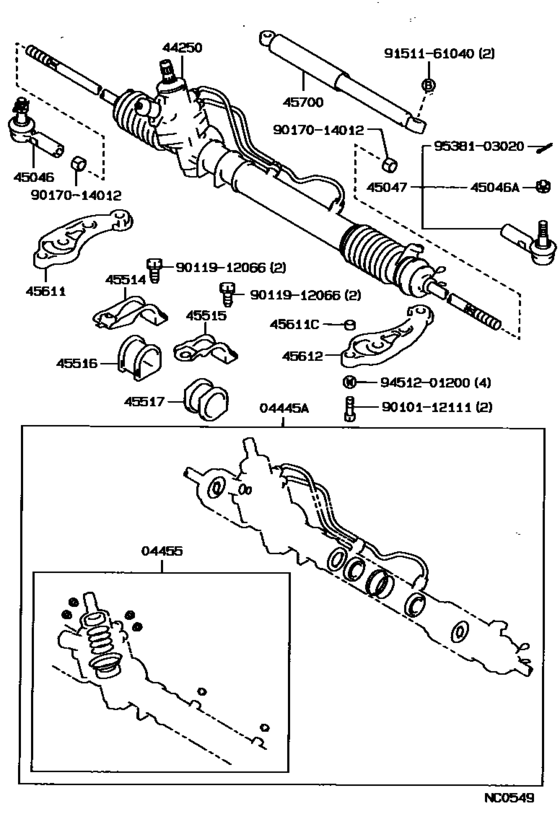

Front Steering Gear & Link ([08.1988 - 08.1990] (8808-9008)MX8#) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- MX83
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-22120 Gasket Kit, Power Steering Gear(For Rack & Pinion)POWER STEERING GEAR(FOR RACK & PINION) [08.1988 - 08.1990] MX8# |
04445-22120 |
US $84.45 |
||
|
04455
|
04455
04455-22070 Gasket Kit, Power Steering Control Valve Overhole[08.1988 - 04.1991] GX81,LX80,MX8#,RX8# |
04455-22070 |
US $42.08 |
||
| replacement | |||||
|
04455
|
04455
04455-22071 Gasket Kit, Power Steering Control Valve Overhole[08.1988 - 04.1991] GX81,LX80,MX8#,RX8# |
04455-22071 |
US $41.64 |
||
|
44250
|
44250
44250-22242 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [08.1988 - 08.1990] MX83 |
44250-22242 |
US $1,444.35 |
||
| replacements | |||||
|
44250
|
44250
44250-22243 Gear Assy, Power Steering(for Rack & Pinion)[08.1988 - 08.1990] MX83 |
44250-22243 |
US $1,444.35 |
||
|
44250
|
44250
45516-43030 Grommet, Steering Rack Housing, No.1[08.1988 - 08.1990] MX83 |
45516-43030 |
US $15.04 |
||
|
45046
|
45046
45046-29205 End Sub-Assy, Tie Rod, Rh[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45046-29205 |
US $47.61 |
||
| replacement | |||||
|
45046
|
45046
45046-29555 End Sub-Assy, Tie Rod, Rh[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45046-29555 |
US $44.69 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1988 - 01.1993] GX81,LX80,MX8#,RX8# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-29205 End Sub-Assy, Tie Rod, Rh[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45046-29205 |
US $47.61 |
||
| replacement | |||||
|
45047
|
45047
45046-29555 End Sub-Assy, Tie Rod, Rh[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45046-29555 |
US $44.69 |
||
|
45514
|
45514
45514-22090 Bracket, Steering Rack Housing, No.1[08.1988 - 08.1990] MX83 |
45514-22090 |
US $19.07 |
||
|
45515
|
45515
45515-22090 Bracket, Steering Rack Housing, No.2[08.1988 - 02.1993] GX81,MX83..RHD |
45515-22090 |
US $9.92 |
||
|
45516
|
45516
45516-22010 Grommet, Steering Rack Housing, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45516-22010 |
US $13.92 |
||
|
45517
|
45517
45517-22030
Grommet, Steering Rack Housing, No.2
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45517-22030 |
— | ||
| replacement | |||||
|
45517
|
45517
45517-22031 Grommet, Steering Rack Housing, No.2[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45517-22031 |
from US $14.56 |
||
|
45611
|
45611
45611-22110 Arm, Steering Knuckle, Rh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45611-22110 |
US $75.71 |
||
| replacement | |||||
|
45611
|
45611
45611-22111 Arm, Steering Knuckle, Rh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45611-22111 |
US $74.26 |
||
|
45611C
|
45611C
90253-15016 Pin, Straight(For End Plate)[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
90253-15016 |
from US $1.44 |
||
|
45612
|
45612
45612-22110 Arm, Steering Knuckle, Lh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45612-22110 |
US $75.71 |
||
| replacement | |||||
|
45612
|
45612
45612-22111 Arm, Steering Knuckle, Lh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45612-22111 |
US $74.26 |
||
|
45700
|
45700
45700-22010
Damper Assy, Steering
[08.1988 - 08.1990] MX8# |
45700-22010 |
— | ||
|
9010112111
|
9010112111
90101-12111 Bolt, Hexagon(For Steering Knuckle To Shock Absorber) |
90101-12111 |
US $3.52 |
||
|
9011912066
|
9011912066
90119-12066
New Genuine Part
|
90119-12066 |
— | ||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.84 |
||
