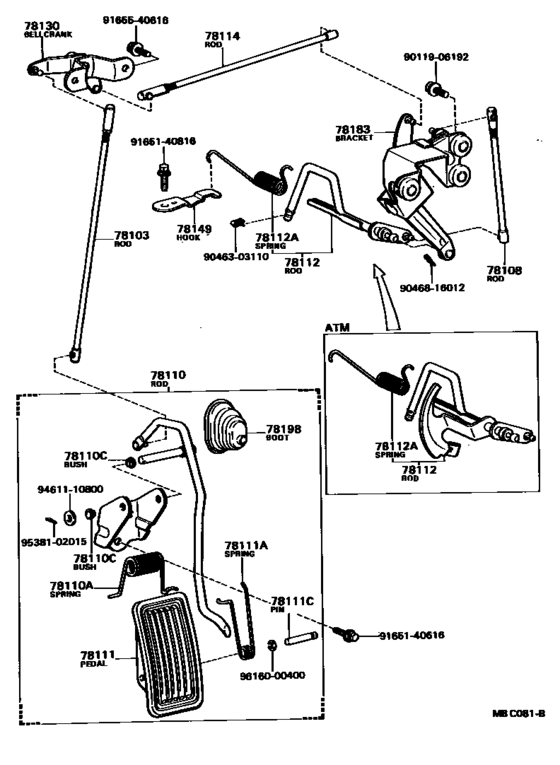

Accelerator Link ([09.1980 - ] (8009- )RX60..LHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1980 - 1982
- Sales region
- General
- Frame
- RX60
- grade
- GL
- body
- SED
- ENGINE
- 21R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78103
|
78103
78103-22090 Rod Sub-Assy, Accelerator Connecting, No.1ACCELERATOR CONNECTING, NO.1 [09.1980 - 07.1984] LX60,RX60..LHD |
78103-22090 |
US $10.19 |
||
|
78108
|
78108
78105-22190
Rod Sub-Assy, Accelerator Connecting, No.4
[09.1980 - 07.1984] RX60..LHD |
78105-22190 |
— | ||
|
78110
|
78110
78120-22120 Rod Assy, Accelerator PedalACCELERATOR PEDAL [09.1980 - 07.1984] RX60..LHD |
78120-22120 |
US $59.70 |
||
| replacement | |||||
|
78110
|
78110
78120-22110
Rod Assy, Accelerator Pedal
[09.1980 - 07.1984] RX60..LHD |
78120-22110 |
— | ||
|
78110A
|
78110A
90508-23018 Spring (For Accelerator Pedal Rod)[09.1980 - 07.1984] LX60,RX60..LHD |
90508-23018 |
US $7.72 |
||
|
78110C
|
78110C
90386-08003
Bush, Accelerator Bellcrank
[09.1980 - 07.1984] GX6#,LX60,RX60..LHD |
90386-08003 |
— | ||
|
78111
|
78111
78111-12100 Pedal, Accelerator[09.1980 - 08.1982] LX60,RX60..LHD |
78111-12100 |
from US $14.70 |
||
|
78111A
|
78111A
90508-23003
Spring (For Accelerator Pedal)
[09.1980 - 08.1982] LX60,RX60..LHD |
90508-23003 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1980 - 08.1982] LX60,RX60..LHD |
90249-05001 |
US $3.32 |
||
|
78112
|
78112
78106-22130
Rod Sub-Assy, Accelerator Connecting, No.4
[09.1980 - 07.1984] RX60..LHD..ATM |
78106-22130 |
— | ||
|
78112A
|
78112A
90508-16041 Spring (For Accelrator Connecting Rod)[09.1980 - 07.1984] RX60..LHD |
90508-16041 |
US $4.66 |
||
|
78114
|
78114
78108-22011 Rod Sub-Assy, Accelerator Connecting, No.5ACCELERATOR CONNECTING, NO.5 [09.1980 - 07.1984] RX60..LHD |
78108-22011 |
US $9.46 |
||
|
78130
|
78130
78160-22040 Bellcrank Assy, AcceleratorACCELERATOR [09.1980 - 07.1984] RX60..LHD |
78160-22040 |
US $17.91 |
||
|
78149
|
78149
78149-20060
Hook, Accelerator Torque Rod Spring
[09.1980 - 07.1984] RX60..LHD |
78149-20060 |
— | ||
|
78183
|
78183
78170-22100 Bracket, Accelerator Link RodACCELERATOR LINK ROD [09.1980 - 07.1984] RX60..LHD |
78170-22100 |
US $51.11 |
||
|
78198
|
78198
78199-22020
Grommet (For Accelerator Pedal Rod)
[09.1980 - 07.1984] LX60,RX60..LHD |
78199-22020 |
— | ||
|
9011906192
|
9011906192
90119-06192 BOLT |
90119-06192 |
US $1.44 |
||
|
9046303110
|
9046303110
90463-03110
Clamp (For Accelerator Torque Rod)
|
90463-03110 |
— | ||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.94 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
