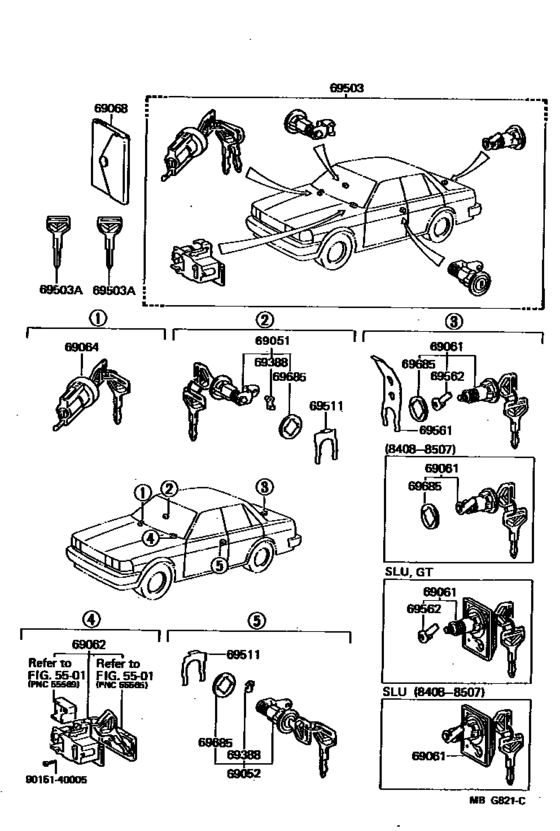

Lock Cylinder Set ([08.1984 - ] (8408- )) Diagram Toyota CRESTA
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- SLU
- body
- SED
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-22140 Cylinder & Key Set, Door Lock, Rh[08.1984 - 08.1986] GX71,MX71..GT,SLU |
69051-22140 |
US $106.29 |
||
| replacement | |||||
|
69051
|
69051
69051-22141 Cylinder & Key Set, Door Lock, Rh[08.1984 - 08.1986] GX71,MX71..GT,SLU |
69051-22141 |
US $107.74 |
||
|
69052
|
69052
69052-22120 Cylinder & Key Set, Door Lock, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
69052-22120 |
US $53.87 |
||
|
69061
|
69061
69055-22130 Cylinder & Key Set, Luggage Lock[08.1984 - 07.1985] GX71,MX71..SLU |
69055-22130 |
US $131.04 |
||
|
69061
|
69061
69055-22131 Cylinder & Key Set, Luggage Lock[07.1985 - 08.1986] GX71,MX71..GT,SLU |
69055-22131 |
US $133.95 |
||
|
69062
|
69062
69056-22020-02 Cylinder & Key Set, Glove Compartment Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU MAROON,MAROON,TRIM3# |
69056-22020-02 |
US $67.56 |
||
| replacements | |||||
|
69062
|
69062
55565-22010-13 Handle, Glove Compartment Door Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU MAROON,MAROON,TRIM3# |
55565-22010-13 |
US $3.93 |
||
|
69062
|
69062
55569-22020-13 Cover, Glove Compartment Door Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU MAROON,MAROON,TRIM3# |
55569-22020-13 |
US $5.10 |
||
|
69062
|
69062
69056-22130 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU MAROON,MAROON,TRIM3# |
69056-22130 |
US $91.73 |
||
|
69062
|
69062
69056-22020-03 Cylinder & Key Set, Glove Compartment Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70 GRAY,COOL GRAY,TRIM1# |
69056-22020-03 |
US $67.56 |
||
| replacements | |||||
|
69062
|
69062
55565-22010-13 Handle, Glove Compartment Door Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70 GRAY,COOL GRAY,TRIM1# |
55565-22010-13 |
US $3.93 |
||
|
69062
|
69062
55569-22020-13 Cover, Glove Compartment Door Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70 GRAY,COOL GRAY,TRIM1# |
55569-22020-13 |
US $5.10 |
||
|
69062
|
69062
69056-22130 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.1984 - 08.1986] GX71,LX70,MX71,SX70 GRAY,COOL GRAY,TRIM1# |
69056-22130 |
US $91.73 |
||
|
69062
|
69062
69056-22020-05 Cylinder & Key Set, Glove Compartment Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU BEIGE,BEIGE,TRIM4# |
69056-22020-05 |
US $67.56 |
||
| replacements | |||||
|
69062
|
69062
55565-22010-13 Handle, Glove Compartment Door Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU BEIGE,BEIGE,TRIM4# |
55565-22010-13 |
US $3.93 |
||
|
69062
|
69062
55569-22020-13 Cover, Glove Compartment Door Lock[08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU BEIGE,BEIGE,TRIM4# |
55569-22020-13 |
US $5.10 |
||
|
69062
|
69062
69056-22130 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.1984 - 08.1986] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU BEIGE,BEIGE,TRIM4# |
69056-22130 |
US $91.73 |
||
|
69064
|
69064
69057-22060
Cylinder & Key Set, Ignition Switch Lock
[08.1984 - 08.1986] GX71,MX71..GT,SLU |
69057-22060 |
— | ||
|
69068
|
69068
69555-20010 Cover Sub-Assy, Key[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
69555-20010 |
from US $12.48 |
||
|
69388
|
69388
69759-20080 Snap, Door Lock Control Link[08.1984 - 08.1988] GX71,LX70,MX71,SX70 RH |
69759-20080 |
US $4.48 |
||
|
69388
|
69388
69759-20090 Snap(For Rear Door Lock)[08.1984 - 08.1988] GX71,LX70,MX71,SX70 LH |
69759-20090 |
US $4.48 |
||
|
69503
|
69503
69005-22270 Cylinder Set, Lock[08.1984 - 07.1985] GX71,MX71..SLU |
69005-22270 |
US $359.63 |
||
|
69503
|
69503
69005-22271 Cylinder Set, Lock[07.1985 - 08.1986] GX71,MX71..GT,SLU |
69005-22271 |
US $361.09 |
||
|
69503A
|
69503A
90999-00099 Key, Blank[08.1984 - 08.1988] GX71,LX70,MX71,SX70 マスターキー,MASTER |
90999-00099 |
from US $7.11 |
||
|
69503A
|
69503A
90999-00100
Key, Blank
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 サブキー,SUB |
90999-00100 |
— | ||
|
69511
|
69511
69511-32010 Retainer, Front Door Lock Cylinder[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
69511-32010 |
US $2.56 |
||
|
69561
|
69561
69561-22050 Retainer, Luggage Compartment Or Back Door Lock Cylinder[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
69561-22050 |
US $5.82 |
||
|
69562
|
69562
69562-22010 Lever, Luggage Compartment Door Lock[07.1985 - 08.1988] GX71,MX71..GT,SLU |
69562-22010 |
US $3.64 |
||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[08.1984 - 08.1988] GX71,LX70,MX71,SX70 FR DOOR |
69513-32010 |
from US $1.37 |
||
|
9015140005
|
9015140005
90151-40005 New Genuine Part |
90151-40005 |
US $0.44 |
||
