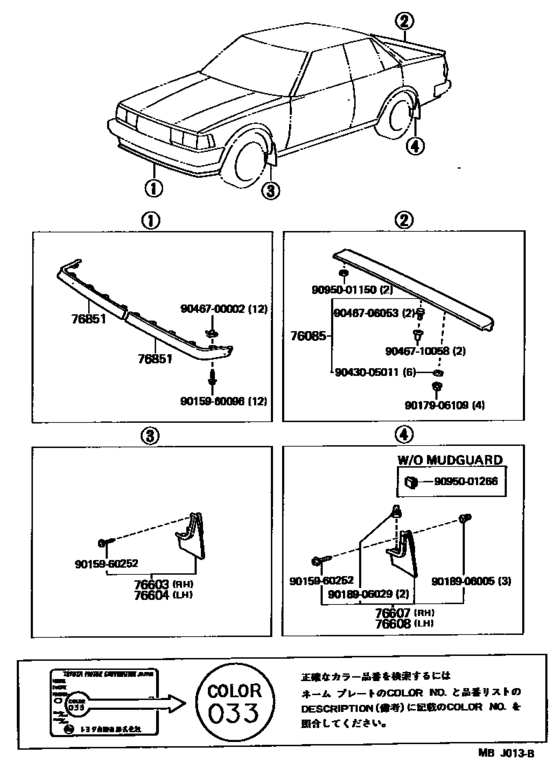

Mudguard & Spoiler ([08.1984 - ] (8408- )) Diagram Toyota CRESTA
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- SLU
- body
- SED
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76085-22020
Spoiler Sub-Assy, Rear
[08.1984 - 08.1985] GX71,MX71..SLU |
76085-22020 |
— | ||
|
76603
|
76603
76603-29055-03 Mudguard Sub-Assy, Front Fender, Rh[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76603-29055-03 |
US $88.82 |
||
| replacement | |||||
|
76603
|
76603
76603-29055-10 Mudguard Sub-Assy, Front Fender, Rh[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76603-29055-10 |
US $87.36 |
||
|
76603
|
76603
76603-29055-08
Mudguard Sub-Assy, Front Fender, Rh
[08.1984 - 08.1988] GX71,MX71..GT,SLU SUPER WHITE,SUPER WHITE,040 |
76603-29055-08 |
— | ||
|
76603
|
76603
76603-29055-11 Mudguard Sub-Assy, Front Fender, Rh[08.1984 - 10.1985] GX71,MX71..SLU BLACK,BLACK,3E2 ,4E6 ,8C1 |
76603-29055-11 |
US $87.36 |
||
|
76603
|
76603
76603-29055-13 Mudguard Sub-Assy, Front Fender, Rh[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
76603-29055-13 |
US $116.48 |
||
|
76603
|
76603
76603-29055-15 Mudguard Sub-Assy, Front Fender, Rh[08.1984 - 08.1988] GX71,MX71..GT,SLU FINE BEIGE-M,FINE BEIGE METALLIC,2V0 |
76603-29055-15 |
US $87.36 |
||
|
76604
|
76604
76604-29055-03 Mudguard Sub-Assy, Front Fender, Lh[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76604-29055-03 |
US $88.82 |
||
| replacement | |||||
|
76604
|
76604
76604-29055-10 Mudguard Sub-Assy, Front Fender, Lh[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76604-29055-10 |
US $87.36 |
||
|
76604
|
76604
76604-29055-08
Mudguard Sub-Assy, Front Fender, Lh
[08.1984 - 08.1988] GX71,MX71..GT,SLU SUPER WHITE,SUPER WHITE,040 |
76604-29055-08 |
— | ||
|
76604
|
76604
76604-29055-11 Mudguard Sub-Assy, Front Fender, Lh[08.1984 - 10.1985] GX71,MX71..SLU BLACK,BLACK,3E2 ,4E6 ,8C1 |
76604-29055-11 |
US $87.36 |
||
|
76604
|
76604
76604-29055-13 Mudguard Sub-Assy, Front Fender, Lh[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
76604-29055-13 |
US $116.48 |
||
|
76604
|
76604
76604-29055-15 Mudguard Sub-Assy, Front Fender, Lh[08.1984 - 08.1988] GX71,MX71..GT,SLU FINE BEIGE-M,FINE BEIGE METALLIC,2V0 |
76604-29055-15 |
US $87.36 |
||
|
76607
|
76607
76607-29055-03
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76607-29055-03 |
— | ||
| replacement | |||||
|
76607
|
76607
76607-29055-33
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76607-29055-33 |
— | ||
|
76607
|
76607
76607-29055-08
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 08.1988] GX71,MX71..GT,SLU SUPER WHITE,SUPER WHITE,040 |
76607-29055-08 |
— | ||
|
76607
|
76607
76607-29055-11
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 10.1985] GX71,MX71..SLU BLACK,BLACK,3E2 ,4E6 ,8C1 |
76607-29055-11 |
— | ||
|
76607
|
76607
76607-29055-13
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
76607-29055-13 |
— | ||
| replacement | |||||
|
76607
|
76607
76607-29055-33
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
76607-29055-33 |
— | ||
|
76607
|
76607
76607-29055-15
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1984 - 08.1988] GX71,MX71..GT,SLU FINE BEIGE-M,FINE BEIGE METALLIC,2V0 |
76607-29055-15 |
— | ||
|
76608
|
76608
76608-29055-03
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76608-29055-03 |
— | ||
| replacement | |||||
|
76608
|
76608
76608-29055-33
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1984 - 08.1986] GX71,MX71..GT,SLU SUPER SILVER-M,SUPER SILVER M,150 |
76608-29055-33 |
— | ||
|
76608
|
76608
76608-29055-08
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1984 - 08.1988] GX71,MX71..GT,SLU SUPER WHITE,SUPER WHITE,040 |
76608-29055-08 |
— | ||
|
76608
|
76608
76608-29055-11
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1984 - 10.1985] GX71,MX71..SLU BLACK,BLACK,3E2 ,4E6 ,8C1 |
76608-29055-11 |
— | ||
|
76608
|
76608
76608-29055-13 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
76608-29055-13 |
US $42.22 |
||
| replacement | |||||
|
76608
|
76608
76608-29055-33
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
76608-29055-33 |
— | ||
|
76608
|
76608
76608-29055-15
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1984 - 08.1988] GX71,MX71..GT,SLU FINE BEIGE-M,FINE BEIGE METALLIC,2V0 |
76608-29055-15 |
— | ||
|
76851
|
76851
76851-22010 Cover, Front Spoiler[08.1984 - 08.1985] GX71,MX71..SLU RH |
76851-22010 |
US $232.96 |
||
|
76851
|
76851
76852-22010
Cover, Front Spoiler
[08.1984 - 08.1985] GX71,MX71..SLU LH |
76852-22010 |
— | ||
|
9015960096
|
9015960096
90159-60096 New Genuine Part |
90159-60096 |
US $0.79 |
||
|
9015960252
|
9015960252
90159-60252 New Genuine Part |
90159-60252 |
US $1.60 |
||
|
9017906109
|
9017906109
90179-06109
New Genuine Part
|
90179-06109 |
— | ||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.08 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
US $1.60 |
||
|
9043005011
|
9043005011
90430-05011 New Genuine Part |
90430-05011 |
US $2.08 |
||
|
9046700002
|
9046700002
90467-00002 CLIP |
90467-00002 |
US $3.84 |
||
|
9046706053
|
9046706053
90467-06053 New Genuine Part |
90467-06053 |
US $1.60 |
||
|
9046710058
|
9046710058
90467-10058 New Genuine Part |
90467-10058 |
US $1.60 |
||
|
9095001150
|
9095001150
90950-01150
Cover, Front Floor Hole
|
90950-01150 |
— | ||
| replacement | |||||
|
9095001150
|
9095001150
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001266
|
9095001266
90950-01266 New Genuine Part |
90950-01266 |
US $3.20 |
||
