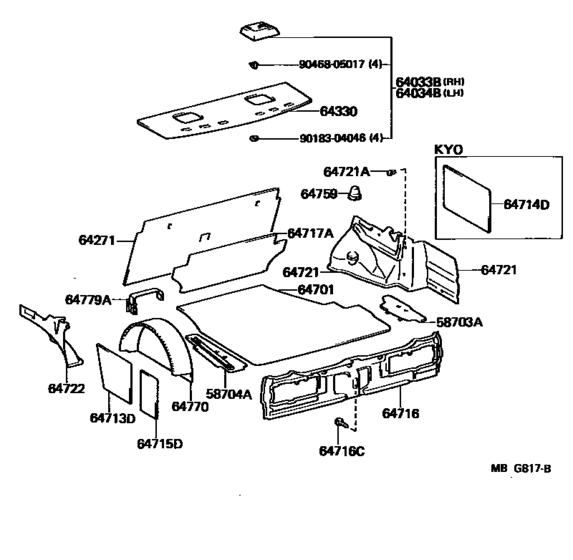

Package Tray Panel & Luggage Compartment Mat ([08.1984 - ] (8408- )) Diagram Toyota CRESTA
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- SLU
- body
- SED
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58703A
|
58703A
58703-22050
Cover Sub-Assy, Luggage Compartment Side, Rh
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
58703-22050 |
— | ||
|
58704A
|
58704A
58704-22030 Cover Sub-Assy, Luggage Compartment Side, Lh[08.1984 - 08.1988] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU |
58704-22030 |
US $20.68 |
||
|
64033B
|
64033B
64033-22020-02 Grille Sub-Assy, Rear Speaker, Rh[08.1984 - 08.1985] GX71,MX71..SLU MAROON,MAROON,TRIM3# |
64033-22020-02 |
US $110.66 |
||
|
64033B
|
64033B
64033-22020-03
Grille Sub-Assy, Rear Speaker, Rh
[08.1984 - 08.1985] GX71,MX71..SLU GRAY,COOL GRAY,TRIM1# |
64033-22020-03 |
— | ||
|
64033B
|
64033B
64033-22020-05
Grille Sub-Assy, Rear Speaker, Rh
[08.1984 - 08.1985] GX71,MX71..SLU BEIGE,BEIGE,TRIM4# |
64033-22020-05 |
— | ||
|
64033B
|
64033B
86269-22030
Grille Sub-Assy, Rear Speaker, Rh
[08.1984 - 02.1985] GX71,MX71..SLU TECHNICS |
86269-22030 |
— | ||
|
64033B
|
64033B
86269-22031
Grille Sub-Assy, Rear Speaker, Rh
[02.1985 - 08.1986] GX71,MX71..GT,SLU TECHNICS |
86269-22031 |
— | ||
|
64034B
|
64034B
64033-22020-02 Grille Sub-Assy, Rear Speaker, Rh[08.1984 - 08.1985] GX71,MX71..SLU MAROON,MAROON,TRIM3# |
64033-22020-02 |
US $110.66 |
||
|
64034B
|
64034B
64033-22020-03
Grille Sub-Assy, Rear Speaker, Rh
[08.1984 - 08.1985] GX71,MX71..SLU GRAY,COOL GRAY,TRIM1# |
64033-22020-03 |
— | ||
|
64034B
|
64034B
64033-22020-05
Grille Sub-Assy, Rear Speaker, Rh
[08.1984 - 08.1985] GX71,MX71..SLU BEIGE,BEIGE,TRIM4# |
64033-22020-05 |
— | ||
|
64034B
|
64034B
86269-22030
Grille Sub-Assy, Rear Speaker, Rh
[08.1984 - 02.1985] GX71,MX71..SLU TECHNICS |
86269-22030 |
— | ||
|
64034B
|
64034B
86269-22031
Grille Sub-Assy, Rear Speaker, Rh
[02.1985 - 08.1986] GX71,MX71..GT,SLU TECHNICS |
86269-22031 |
— | ||
|
64271
|
64271
64271-22080 Board, Room Partition, No.1[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
64271-22080 |
US $36.25 |
||
|
64330
|
64330
64330-22530-02 Panel Assy, Package Tray Trim[08.1984 - 08.1986] GX71,MX71..GT,SLU MAROON,MAROON,TRIM3# |
64330-22530-02 |
US $189.28 |
||
| replacement | |||||
|
64330
|
64330
64330-22520-B1 Panel Assy, Package Tray Trim[08.1984 - 08.1986] GX71,MX71..GT,SLU MAROON,MAROON,TRIM3# |
64330-22520-B1 |
US $189.28 |
||
|
64330
|
64330
64330-22530-03 Panel Assy, Package Tray Trim[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY,COOL GRAY,TRIM1# |
64330-22530-03 |
US $189.28 |
||
| replacement | |||||
|
64330
|
64330
64330-22520-B1 Panel Assy, Package Tray Trim[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY,COOL GRAY,TRIM1# |
64330-22520-B1 |
US $189.28 |
||
|
64330
|
64330
64330-22530-05 Panel Assy, Package Tray Trim[08.1984 - 08.1986] GX71,MX71..GT,SLU BEIGE,BEIGE,TRIM4# |
64330-22530-05 |
US $189.28 |
||
| replacement | |||||
|
64330
|
64330
64330-22520-B1 Panel Assy, Package Tray Trim[08.1984 - 08.1986] GX71,MX71..GT,SLU BEIGE,BEIGE,TRIM4# |
64330-22520-B1 |
US $189.28 |
||
|
64701
|
64701
64711-22190 Mat Sub-Assy, Luggage Compartment[08.1984 - 08.1988] GX71,MX71..GT,SLU |
64711-22190 |
US $257.71 |
||
|
64713D
|
64713D
64713-22040 Cover, Luggage Compartment Trim, Front Lh[08.1984 - 08.1988] GX71,MX71..GT,SLU |
64713-22040 |
US $23.44 |
||
|
64715D
|
64715D
64715-22140 Cover, Luggage Compartment Trim, Side, Lh[08.1984 - 08.1988] GX71,MX71..GT,SLU |
64715-22140 |
US $22.13 |
||
|
64716
|
64716
64716-22170 Cover, Luggage Compartment, Rear Center[08.1984 - 08.1986] GX71,MX71..GT,SLU |
64716-22170 |
US $199.47 |
||
| replacement | |||||
|
64716
|
64716
64716-22170-03 Cover, Luggage Compartment, Rear Center[08.1984 - 08.1986] GX71,MX71..GT,SLU |
64716-22170-03 |
US $199.47 |
||
|
64716C
|
64716C
90467-05004-33 Clip(For Luggage Compartment Trim Rear Cover)[08.1984 - 08.1988] GX71,MX71,SX70..GT,SCM,SDX,SLU GRAY,GRAY,TRIM1#,8# |
90467-05004-33 |
US $0.87 |
||
|
64717A
|
64717A
64717-22080 Cover, Luggage Compartment Trim, Front[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
64717-22080 |
US $37.27 |
||
|
64721
|
64721
64721-22160 Cover, Luggage Compartment Trim, Inner Rh[08.1984 - 08.1988] GX71,MX71..(GT,SLU)..(EFI,TBO,TWT) |
64721-22160 |
US $133.95 |
||
|
64721A
|
64721A
90467-07042-03 Clip(For Luggage Compartment Trim Inner Cover)[08.1984 - 08.1988] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU GRAY,GRAY,TRIM1#,8# |
90467-07042-03 |
US $1.60 |
||
| replacement | |||||
|
64721A
|
64721A
90467-07042-B0 Clip(For Luggage Compartment Trim Inner Cover)[08.1984 - 08.1988] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU GRAY,GRAY,TRIM1#,8# |
90467-07042-B0 |
US $1.46 |
||
|
64722
|
64722
64722-22200 Cover, Luggage Compartment Trim, Inner Lh[08.1984 - 08.1988] GX71,MX71..(GT,SLU)..(EFI,TBO,TWT) |
64722-22200 |
US $80.08 |
||
|
64759
|
64759
58731-22020-23
Cap, Rear Absorber, Rh
[08.1984 - 08.1988] GX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT GRAY,GRAY,TRIM1#,8# |
58731-22020-23 |
— | ||
|
64770
|
64770
64770-22050 Cover Assy, Spare Wheel[08.1984 - 08.1988] GX71,MX71..GT,SLU |
64770-22050 |
US $122.30 |
||
|
64779A
|
64779A
64779-22010 Stopper, Spare Wheel Cover[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
64779-22010 |
US $7.86 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.92 |
||
|
9046805017
|
9046805017
90468-05017 Clip, Roof Side Rail Garnish |
90468-05017 |
from US $0.94 |
||
