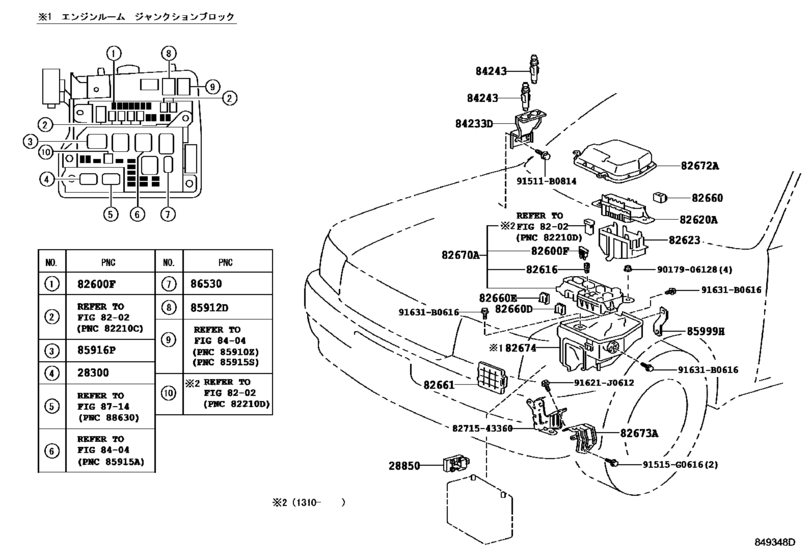

Switch & Relay & Computer ([09.2007 - ] ｴﾝｼﾞﾝ ﾙｰﾑ (0709- )TSS1#) Diagram Toyota CROWN COMFORT
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- TSS11
- grade
- SG
- ENGINE
- 1TRFPE
- TRANSMISSION
- ATM
- Model
- CROWN COMFORT
- From
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- Crown Comfort (Taxi)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[06.2013 -] 1TR#..TSS1# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[09.2007 - 05.2013] 1TR#..TSS1# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[09.2007 - 05.2013] 1TR#..TSS1# |
28300-21020 |
from US $40.58 |
||
|
28850
|
28850
28850-75010 Sensor Assy, Battery Current[08.2008 -] 1TRFPE..TSS10,11..(CRW,SED,TAX)..4FC |
28850-75010 |
US $74.26 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[09.2007 -] YXS10..4HC ５Ａ，ミニ ヒューズ; TSS1# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[09.2007 -] YXS10..4HC ７．５Ａ，ミニ ヒューズ; TSS1# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.2007 -] YXS10..4HC １０Ａ，ミニ ヒューズ; TSS1# １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.2007 -] YXS10..4HC １５Ａ，ミニ ヒューズ; TSS1# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2008 -] TSS10,11 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[09.2007 -] TSS1# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[09.2007 -] YXS10..4HC; TSS1# |
82616-20010 |
from US $2.38 |
||
|
82620A
|
82620A
82620-43020 Block Assy, Fusible Link[09.2007 -] TSS1# |
82620-43020 |
US $57.66 |
||
|
82623
|
82623
82623-43010 Cover, Fusible Link, Lower[09.2007 -] TSS1# |
82623-43010 |
US $15.58 |
||
|
82660
|
82660
82602-43040 Block Sub-Assy, Relay[09.2007 -] TSS1# |
82602-43040 |
US $16.31 |
||
|
82660D
|
82660D
82660-20340 Block Assy, Relay, Engine Room[09.2007 -] YXS10..4HC; TSS1# |
82660-20340 |
US $5.59 |
||
|
82660E
|
82660E
82660-20340 Block Assy, Relay, Engine Room[09.2007 -] TSS1# |
82660-20340 |
US $5.59 |
||
|
82661
|
82661
82661-43010 Cover, Relay Block, No.1[09.2007 -] YXS10..4HC; TSS1# |
82661-43010 |
US $9.46 |
||
|
82670A
|
82670A
82720-43090 Block Assy, Junction, No.1[09.2007 - 10.2013] TSS1# |
82720-43090 |
US $170.35 |
||
|
82670A
|
82670A
82720-43091 Block Assy, Junction, No.1[10.2013 -] TSS1# |
82720-43091 |
US $154.34 |
||
|
82672A
|
82672A
82672-43110 Cover, Junction Block[08.2008 - 10.2013] TSS10,11..CRW,SED,TAX |
82672-43110 |
US $36.11 |
||
|
82672A
|
82672A
82672-43111 Cover, Junction Block[10.2013 -] TSS10,11..CRW,SED,TAX |
82672-43111 |
US $32.76 |
||
|
82673A
|
82673A
82715-43350 Bracket, Junction Block[09.2007 -] TSS1# |
82715-43350 |
US $14.12 |
||
|
82674
|
82674
82674-43010 Cover, Junction Block Lower[09.2007 -] YXS10..4HC; TSS1# |
82674-43010 |
US $74.26 |
||
|
84233D
|
84233D
84233-43010 Bracket, Engine Hood Switch[08.2008 -] TSS10,11..(CRW,SED,TAX)..4FC |
84233-43010 |
US $21.11 |
||
|
84243
|
84243
84243-52010 Switch, Engine Hood[08.2008 -] TSS10,11..(CRW,SED,TAX)..4FC |
84243-52010 |
from US $22.43 |
||
|
85912D
|
85912D
90987-02027 Relay[08.2008 -] TSS10,11 |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02006 Relay[09.2007 -] TSS1# |
90987-02006 |
from US $27.65 |
||
|
85999H
|
85999H
85999-30290 Bracket, Relay, No.2[09.2007 -] YXS10..4HC; TSS1# |
85999-30290 |
US $5.24 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[09.2007 -] TSS1# |
86530-20070 |
from US $12.54 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
91515G0616
|
91515G0616
91515-G0616 New Genuine Part |
91515-G0616 |
US $1.16 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
8271543360
|
8271543360
82715-43360
Bracket,wiring Harness Clamp
|
82715-43360 |
— | ||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
