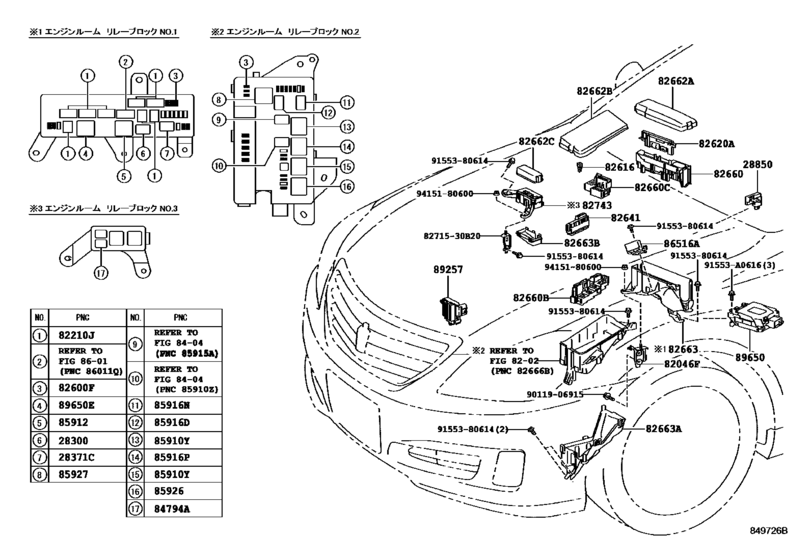

Switch & Relay & Computer ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ (0802- )GRS20#) Diagram Toyota CROWN/ MAJESTA
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- GRS202
- grade
- ROYG
- ENGINE
- 3GRFSE
- Model
- CROWN
- From
- 02.2008
- To
- 12.2012
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[02.2008 - 02.2010] 2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[02.2008 - 02.2010] 2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90987-02027 Relay[02.2008 - 02.2010] 2GRFSE,3GRFSE,4GRFSE..GRS20#,GWS204..CBU |
90987-02027 |
from US $44.54 |
||
|
28850
|
28850
28850-31020 Sensor Assy, Battery Current[02.2008 - 02.2010] 2GRFSE,3GRFSE,4GRFSE..GRS20#..CBU |
28850-31020 |
US $91.76 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[02.2008 - 02.2010] GRS20#..CBU |
82046-30100 |
US $14.41 |
||
|
82210J
|
82210J
90982-08299 Fusible Link[02.2008 - 02.2010] GRS20#,GWS204..CBU ４０Ａ−４０Ａ−４０Ａ，メス端子 |
90982-08299 |
US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[02.2008 - 02.2010] GRS20#..CBU ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[02.2008 - 02.2010] GRS20#,GWS204..CBU ５０Ａ−３０Ａ−５０Ａ，メス端子 |
90982-08302 |
US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[02.2008 - 02.2010] GRS20#,GWS204..CBU ６０Ａ，メス端子 |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[02.2008 - 02.2010] GRS20#,GWS204..CBU ８０Ａ，メス端子 |
90982-08305 |
US $6.24 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[02.2008 - 11.2009] GRS20#,GWS204..CBU ５Ａ，ミニ ヒューズ,インストルメントパネルＪ／Ｂ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[02.2008 - 02.2010] GRS20#,GWS204..CBU ５Ａ，ミニ ヒューズ,エンジンル−ム Ｒ／Ｂ |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[02.2008 - 02.2010] GRS20#,GWS204..CBU ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2008 - 02.2010] GRS20#,GWS204..CBU １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2008 - 02.2010] GRS20#,GWS204..CBU １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2008 - 02.2010] GRS20#,GWS204..CBU ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2008 - 02.2010] GRS20#,GWS204..CBU ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2008 - 02.2010] GRS20#,GWS204..CBU ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[02.2008 - 02.2010] GRS20#,GWS204..CBU |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-30210 Block Assy, Fusible Link[02.2008 - 02.2010] GRS20#..CBU |
82620-30210 |
US $29.64 |
||
|
82641
|
82641
82641-30300 Relay, Integration No.1[02.2008 - 02.2010] GRS20#,GWS204..CBU |
82641-30300 |
US $106.56 |
||
|
82660
|
82660
82660-30A70 Block Assy, Relay, Engine Room[02.2008 - 02.2010] GRS20#..CBU |
82660-30A70 |
US $65.37 |
||
|
82660B
|
82660B
82660-30B00 Block Assy, Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU |
82660-30B00 |
US $32.03 |
||
|
82660C
|
82660C
82660-30B10 Block Assy, Relay[02.2008 - 02.2010] GRS20#..CBU |
82660-30B10 |
US $18.93 |
||
|
82662A
|
82662A
82662-30820 Cover, Relay Block, Upper, No.1[02.2008 - 02.2010] GRS20#..CBU |
82662-30820 |
US $21.69 |
||
|
82662A
|
82662A
82662-30821 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [02.2010 - 12.2012] GRS20#..CBU |
82662-30821 |
US $21.69 |
||
|
82662B
|
82662B
82662-30840 Cover, Relay Block, Upper, No.2[02.2008 - 02.2010] GRS20#..CBU |
82662-30840 |
US $29.99 |
||
|
82662B
|
82662B
82662-30841 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [02.2010 - 12.2012] GRS20#..CBU |
82662-30841 |
US $29.70 |
||
|
82662C
|
82662C
82662-30850 Cover, Relay Block, Upper, No.3[02.2008 - 02.2010] GRS200..ROY..CBU;GRS201,203,204,GWS204..CBU; GRS200..ATH ナビパッケージ（２．５アスリート）＆寒冷地仕様＆ＥＭＶ＆ナビゲーションシステム−Ｈ ＤＤナビゲーション（ＢＬＵＥＴＯＯＴＨ対応）; GRS200..ATH ナビパッケージ（２．５アスリート）＆ＥＭＶ＆ナビゲーションシステム−ＨＤＤナビゲー ション（ＢＬＵＥＴＯＯＴＨ対応）; GRS200..ATH;GRS202..CBU 寒冷地仕様; GRS202..C |
82662-30850 |
US $11.21 |
||
|
82662C
|
82662C
82662-30851 Cover, Relay Block, Upper, No.3RELAY BLOCK, UPPER, NO.3 [02.2010 - 12.2012] GRS200..ROY..CBU;GRS201,203,204,GWS204..CBU; GRS200..ATH 運転席＆助手席パワーシート＆寒冷地仕様＆ＥＭＶ＆ナビゲーションシステム−ＨＤＤナビ ゲーション（ＢＬＵＥＴＯＯＴＨ対応）; GRS200..ATH 運転席＆助手席パワーシート＆ＥＭＶ＆ナビゲーションシステム−ＨＤＤナビゲーション（ ＢＬＵＥＴＯＯＴＨ対応）; GRS200..ATH;GRS202..CBU 寒冷地仕様; GRS202..CBU 寒冷地仕様 |
82662-30851 |
US $9.17 |
||
|
82663
|
82663
82663-30270 Cover, Relay Block, Lower[02.2008 - 02.2010] GRS20#..CBU |
82663-30270 |
US $39.75 |
||
|
82663A
|
82663A
82663-30290 Cover, Relay Block, Lower, No.2[02.2008 - 02.2010] GRS20#..CBU |
82663-30290 |
US $30.59 |
||
|
82663B
|
82663B
82663-30220 Cover, Relay Block, Lower, No.2[02.2008 - 02.2010] GRS200..ROY..CBU;GRS201,203,204,GWS204..CBU; GRS200..ATH ナビパッケージ（２．５アスリート）＆寒冷地仕様＆ＥＭＶ＆ナビゲーションシステム−Ｈ ＤＤナビゲーション（ＢＬＵＥＴＯＯＴＨ対応）; GRS200..ATH ナビパッケージ（２．５アスリート）＆寒冷地仕様＆ＥＭＶ＆ナビゲーションシステム−Ｈ ＤＤナビゲーション（ＢＬＵＥＴＯＯＴＨ対応）＆クリアランスソナー−有り（舵角感応式 ）; GRS200..ATH ナ |
82663-30220 |
US $6.99 |
||
|
82743
|
82743
82743-30020 Block, Engine Room Relay, No.3[02.2008 - 02.2010] GRS200..ROY..CBU;GRS201,203,204..CBU; GRS200..ATH ナビパッケージ（２．５アスリート）＆寒冷地仕様＆ＥＭＶ＆ナビゲーションシステム−Ｈ ＤＤナビゲーション（ＢＬＵＥＴＯＯＴＨ対応）; GRS200..ATH ナビパッケージ（２．５アスリート）＆寒冷地仕様＆ＥＭＶ＆ナビゲーションシステム−Ｈ ＤＤナビゲーション（ＢＬＵＥＴＯＯＴＨ対応）＆クリアランスソナー−有り（舵角感応式 ）; GRS200..ATH ナビパッケージ（ |
82743-30020 |
US $23 |
||
|
84794A
|
84794A
90987-02027 Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU 寒冷地仕様 |
90987-02027 |
from US $44.54 |
||
|
85910Y
|
85910Y
90987-02025 Relay[02.2008 - 02.2010] GRS20#..CBU |
90987-02025 |
from US $44.54 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[02.2008 - 02.2010] GRS20#,GWS204..CBU |
90987-04010 |
from US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02027 Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[01.2009 - 02.2010] GRS20#,GWS204..CBU |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[02.2008 - 12.2008] GRS20#,GWS204..CBU |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02025 Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU |
90987-02025 |
from US $44.54 |
||
|
86516A
|
86516A
82930-30010 Condenser[03.2009 - 02.2010] GRS20#..CBU |
82930-30010 |
US $67.56 |
||
|
86516A
|
86516A
86516-30480 Condenser[02.2008 - 03.2009] GRS20#..CBU |
86516-30480 |
US $99.01 |
||
|
89257
|
89257
89257-30060 Computer, Cooling Fan[02.2008 - 02.2010] GRS20#..CBU |
89257-30060 |
from US $226.08 |
||
|
89650
|
89650
89650-30690 Computer Assy, Power Steering[02.2008 - 06.2009] GRS200,201,202,203..CBU |
89650-30690 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[02.2008 - 06.2009] GRS200,201,202,203..CBU |
89650-30832 |
US $460.10 |
||
|
89650
|
89650
89650-30800 Computer Assy, Power Steering[07.2009 - 02.2010] GRS200,201,202,203..CBU |
89650-30800 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[07.2009 - 02.2010] GRS200,201,202,203..CBU |
89650-30832 |
US $460.10 |
||
|
89650
|
89650
89650-30830 Computer Assy, Power SteeringPOWER STEERING [02.2010 - 03.2010] GRS200,201,202,203..CBU |
89650-30830 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[02.2010 - 03.2010] GRS200,201,202,203..CBU |
89650-30832 |
US $460.10 |
||
|
89650
|
89650
89650-30831 Computer Assy, Power Steering[04.2010 - 12.2011] GRS200,201,202,203..CBU |
89650-30831 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[04.2010 - 12.2011] GRS200,201,202,203..CBU |
89650-30832 |
US $460.10 |
||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[12.2011 - 12.2012] GRS200,201,202,203..CBU |
89650-30832 |
US $460.10 |
||
|
89650E
|
89650E
90987-02025 Relay[02.2008 - 02.2010] GRS20#,GWS204..CBU |
90987-02025 |
from US $44.54 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
8271530B20
|
8271530B20
82715-30B20
Bracket,wiring Harness Clamp
|
82715-30B20 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
