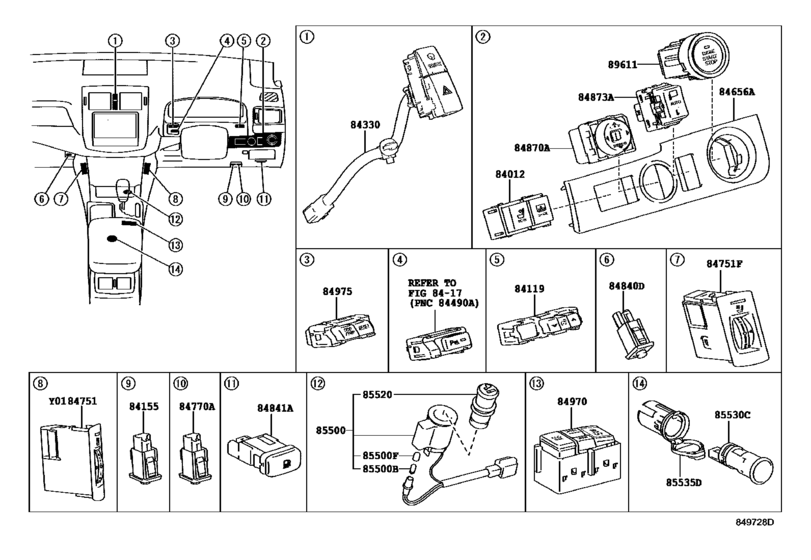

Switch & Relay & Computer ([02.2008 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ1/2 (0802- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- GRS202
- grade
- ROYG
- ENGINE
- 3GRFSE
- Model
- CROWN
- From
- 02.2008
- To
- 12.2012
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84012
|
84012
84012-30180 Control & Panel Sub-Assy, Integration[02.2008 - 02.2010] GRS202,GWS204..HBD,ROYG; GRS202..ROY..CBU イージークローザドア−有り（ドア＆ラッゲージドア）＆４０／２０／４０リヤ分割パワー シート; GRS200,203..ROY..CBU ４０／２０／４０リヤ分割パワーシート; GRS204 ４０／２０／４０リヤ分割パワーシート＆シート表皮−本革; GRS201..ROY ４０／２０／４０リヤ分割パワーシート＆バックモニタ（リヤテレビジョンカメラ）−有り; GRS201..ROY ４０ |
84012-30180 |
US $70.18 |
||
|
84119
|
84119
84119-30240 Rheostat, Light Control[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84119-30240 |
US $91.73 |
||
|
84155
|
84155
84155-48010 Switch, Headlamp Swivel Main[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84155-48010 |
US $40.19 |
||
|
84330
|
84330
84330-30070 Switch Assy, Hazard Warning Signal[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84330-30070 |
US $52.85 |
||
|
84656A
|
84656A
84656-30120-A0 Bezel, Switch[02.2008 - 02.2010] GRS202,GWS204..HBD,ROYG SHELL,TRIM0#; GRS202..ROY..CBU イージークローザドア−有り（ドア＆ラッゲージドア）＆４０／２０／４０リヤ分割パワー シート,SHELL,TRIM0#; GRS200,203..ROY..CBU ４０／２０／４０リヤ分割パワーシート,SHELL,TRIM0#; GRS201..ROY ４０／２０／４０リヤ分割パワーシート＆バックモニタ（リヤテレビジョンカメラ）−有り ,SHELL,TRIM0 |
84656-30120-A0 |
US $20.82 |
||
|
84656A
|
84656A
84656-30120-B0 Bezel, Switch[02.2008 - 02.2010] GRS202,GWS204..HBD,ROYG GRAY,TRIM1#; GRS202..ROY..CBU イージークローザドア−有り（ドア＆ラッゲージドア）＆４０／２０／４０リヤ分割パワー シート,GRAY,TRIM1#; GRS200,203..ROY..CBU ４０／２０／４０リヤ分割パワーシート,GRAY,TRIM1#; GRS201..ROY ４０／２０／４０リヤ分割パワーシート＆バックモニタ（リヤテレビジョンカメラ）−有り ,GRAY,TRIM1#; G |
84656-30120-B0 |
US $25.04 |
||
|
84751
|
84751
84751-30200 Switch, Seat Heater[02.2008 - 02.2010] GRS202,203..CBU;GRS200,201,204..ATH シート表皮−本革 |
84751-30200 |
US $120.85 |
||
|
84751F
|
84751F
84751-30210 Switch, Seat Heater[02.2008 - 02.2010] GRS202,203..CBU;GRS200,201,204..ATH シート表皮−本革 |
84751-30210 |
US $120.85 |
||
|
84770A
|
84770A
84770-50011 Switch Assy, Pre-Collision System Cancel[02.2008 - 02.2010] GRS202,203,204..CBU プリクラッシュシステム−有り; GRS202,204..ATH,ROYG プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＲＰＣＳ） |
84770-50011 |
US $34.36 |
||
|
84840D
|
84840D
84840-24020 Switch Assy, Luggage Door Opening, Cancel[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84840-24020 |
US $30.23 |
||
|
84841A
|
84841A
84841-48010 Switch, Fuel Lid Opener[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84841-48010 |
US $31.16 |
||
|
84870A
|
84870A
84872-30040 Switch Assy, Outer Mirror[02.2008 - 08.2008] GRS20#,GWS204..CBU |
84872-30040 |
US $81.54 |
||
| replacement | |||||
|
84870A
|
84870A
84872-30041 Switch Assy, Outer Mirror[02.2008 - 08.2008] GRS20#,GWS204..CBU |
84872-30041 |
US $55.76 |
||
|
84870A
|
84870A
84872-30041 Switch Assy, Outer Mirror[09.2008 - 02.2010] GRS20#,GWS204..CBU |
84872-30041 |
US $55.76 |
||
|
84873A
|
84873A
84873-30030 Switch, Retractable Outer Mirror[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84873-30030 |
US $52.71 |
||
|
84970
|
84970
84970-30060 Switch Assy, Combination[02.2008 - 12.2008] GRS20#..CBU |
84970-30060 |
US $129.58 |
||
| replacement | |||||
|
84970
|
84970
84970-30061 Switch Assy, Combination[02.2008 - 12.2008] GRS20#..CBU |
84970-30061 |
US $88.82 |
||
|
84970
|
84970
84970-30061 Switch Assy, Combination[01.2009 - 02.2010] GRS20#..CBU |
84970-30061 |
US $88.82 |
||
|
84975
|
84975
84975-30050 Switch, Trip[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84975-30050 |
US $47.61 |
||
|
85500
|
85500
85500-30520 Lighter Assy, Cigarette[02.2008 - 02.2010] GRS20#,GWS204..CBU |
85500-30520 |
from US $47.81 |
||
|
85500B
|
85500B
90010-01111 Bulb, Cigarette Lighter[02.2008 - 02.2010] GRS20#,GWS204..CBU １３．５Ｖ ２Ｗ |
90010-01111 |
US $4.37 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[02.2008 - 02.2010] GRS20#,GWS204..CBU |
84998-10510 |
US $3.68 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[02.2008 - 02.2010] GRS20#,GWS204..CBU |
85520-89101 |
from US $19.19 |
||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[02.2008 - 02.2010] GRS20#,GWS204..CBU |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-30020 Cover, Power Outlet Socket, No.1[02.2008 - 02.2010] GRS20#,GWS204..CBU |
85535-30020 |
from US $6.08 |
||
|
89611
|
89611
89611-52011 Switch, Push Start[02.2008 - 02.2010] GRS20#..CBU |
89611-52011 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[02.2008 - 02.2010] GRS20#..CBU |
89611-52015 |
from US $162.45 |
||
|
89611
|
89611
89611-52012 Switch, Push StartPUSH START [02.2010 - 06.2011] GRS20#..CBU |
89611-52012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[02.2010 - 06.2011] GRS20#..CBU |
89611-52015 |
from US $162.45 |
||
|
89611
|
89611
89611-52013 Switch, Push Start[07.2011 - 02.2012] GRS20#..CBU |
89611-52013 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[07.2011 - 02.2012] GRS20#..CBU |
89611-52015 |
from US $162.45 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[03.2012 - 12.2012] GRS20#..CBU |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[03.2012 - 12.2012] GRS20#..CBU |
89611-52015 |
from US $162.45 |
||
