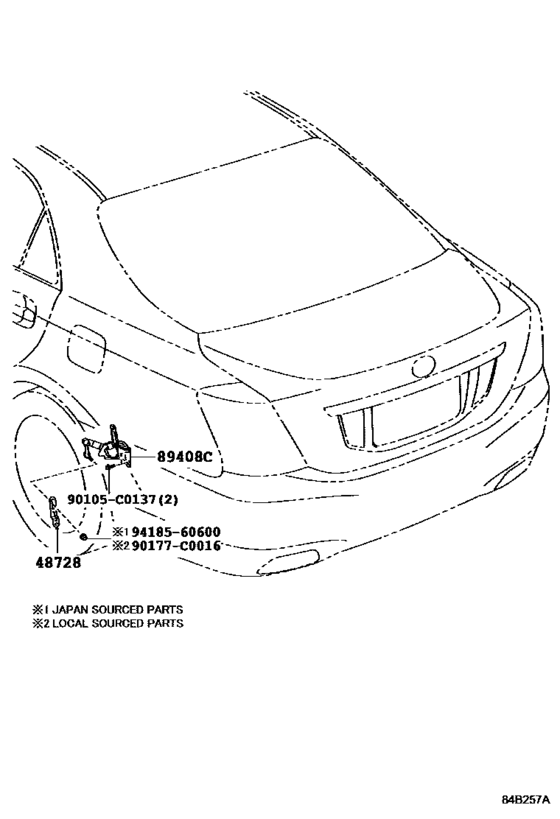

Electronic Height Control ([12.2009 - ] (0912- )GRS20#) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48728
|
48728
48728-30040 Bracket, Load Sensing Valve Sensor[12.2009 - 07.2012] GRS20# |
48728-30040 |
US $4.32 |
||
|
89408C
|
89408C
89408-0N010
Sensor Sub-Assy, Height Control, Rear Lh
[06.2012 - 07.2012] GRS20# |
89408-0N010 |
— | ||
|
89408C
|
89408C
89408-30130 Sensor Sub-Assy, Height Control, Rear Lh[12.2009 - 05.2012] GRS20# |
89408-30130 |
from US $273.57 |
||
|
90105C0137
|
90105C0137
90105-C0137
New Genuine Part
|
90105-C0137 |
— | ||
|
90177C0016
|
90177C0016
90177-C0016
New Genuine Part
|
90177-C0016 |
— | ||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.76 |
