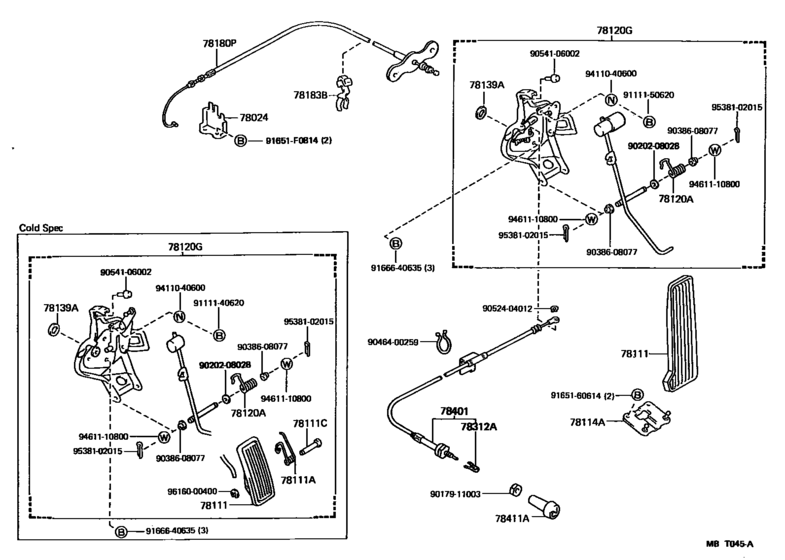

Accelerator Link ([08.1989 - ] (8908- )LPEFI,TWLPG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- GS130
- grade
- SDX
- body
- SED
- ENGINE
- 1GGP
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1989
- To
- 10.1991
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- TWLPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-22080 Bracket Sub-Assy, Accelerator Control Cable[09.1987 - 10.1991] GS130,YS130..LPEFI,LPG,TWLPG |
78024-22080 |
US $35.38 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
78111-30081 |
US $10.13 |
||
|
78111
|
78111
78111-30090 Pedal, Accelerator[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
78111-30090 |
US $16.16 |
||
|
78111A
|
78111A
90508-18071 Spring (For Accelerator Pedal)[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
90508-18071 |
US $2.62 |
||
|
78111C
|
78111C
90249-05043 Pin (For Accelerator Pedal)[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 ｶﾝﾚｲﾁ ｼﾖｳ |
90249-05043 |
US $2.33 |
||
|
78114A
|
78114A
78114-30050 Bracket, Accelerator Pedal Support[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
78114-30050 |
US $7.34 |
||
|
78120A
|
78120A
90508-18016 Spring, Torsion (For Accelerator Link)[09.1988 - 10.1991] LS13#;GS130..4H..TWLPG;GS130,131,JZS13#,MS13#,UZS131..ATM |
90508-18016 |
US $3.64 |
||
|
78120A
|
78120A
90508-23026 Spring (For Accelerator Pedal Rod)[08.1989 - 10.1991] GS130,131,MS13#,UZS131..ATM;GS130,LS13#..MTM..(DSL,TD,TWLPG) ｶﾝﾚｲﾁ ｼﾖｳ |
90508-23026 |
US $3.93 |
||
|
78120G
|
78120G
78120-30710 Rod Assy, Accelerator Pedal[08.1989 - 10.1991] GS130..TWLPG |
78120-30710 |
US $75.71 |
||
|
78120G
|
78120G
78120-30720 Rod Assy, Accelerator Pedal[08.1989 - 10.1991] GS130,YS130..LPEFI,TWLPG ｶﾝﾚｲﾁ ｼﾖｳ |
78120-30720 |
US $75.71 |
||
|
78139A
|
78139A
78139-30060 Seal, Accelerator Pedal Rod Bracket, No.2[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
78139-30060 |
US $3.35 |
||
|
78180P
|
78180P
78180-3A140 Cable Assy, Accelerator Control[08.1989 - 10.1991] GS130..TWLPG |
78180-3A140 |
US $59.40 |
||
| replacement | |||||
|
78180P
|
78180P
78180-3A400 Cable Assy, Accelerator Control[08.1989 - 10.1991] GS130..TWLPG |
78180-3A400 |
US $70.91 |
||
|
78183B
|
78183B
78183-30070 Clamp, Accelerator Control Cable[08.1989 - 10.1991] GS13#,JZS13#,LS13#,MS135,YS130 |
78183-30070 |
US $12.67 |
||
|
78312A
|
78312A
78312-12010
Clip (For Choke Cable)
[09.1987 -] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
78312-12010 |
— | ||
|
78401
|
78401
78401-30100 Cable Sub-Assy, Throttle Control[09.1987 -] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
78401-30100 |
US $30.87 |
||
| replacements | |||||
|
78401
|
78401
78311-10041
Knob, Choke Control Cable
[09.1987 -] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
78311-10041 |
— | ||
|
78401
|
78401
78401-30130 Cable Sub-Assy, Throttle Control[09.1987 -] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
78401-30130 |
US $38.15 |
||
|
78401
|
78401
90179-11004 New Genuine Part[09.1987 -] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
90179-11004 |
US $2.18 |
||
|
78411A
|
78411A
78411-30031 Knob, Throttle Control[09.1987 -] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
78411-30031 |
US $14.71 |
||
|
91651F0814
|
91651F0814
91651-F0814 New Genuine Part |
91651-F0814 |
US $1.16 |
||
|
9017911003
|
9017911003
90179-11003 New Genuine Part |
90179-11003 |
US $5.39 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9046400259
|
9046400259
90464-00259 New Genuine Part |
90464-00259 |
US $2.77 |
||
| replacement | |||||
|
9046400259
|
9046400259
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9054106002
|
9054106002
90541-06002
Cushion(For Back Door Lock Striker)
|
90541-06002 |
— | ||
| replacement | |||||
|
9054106002
|
9054106002
90541-06019 Cushion(For Back Door Lock Striker) |
90541-06019 |
US $2.88 |
||
|
9111140620
|
9111140620
91111-40620
New Genuine Part
|
91111-40620 |
— | ||
| replacement | |||||
|
9111140620
|
9111140620
91111-50620 New Genuine Part |
91111-50620 |
US $1.75 |
||
|
9111150620
|
9111150620
91111-50620 New Genuine Part |
91111-50620 |
US $1.75 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
