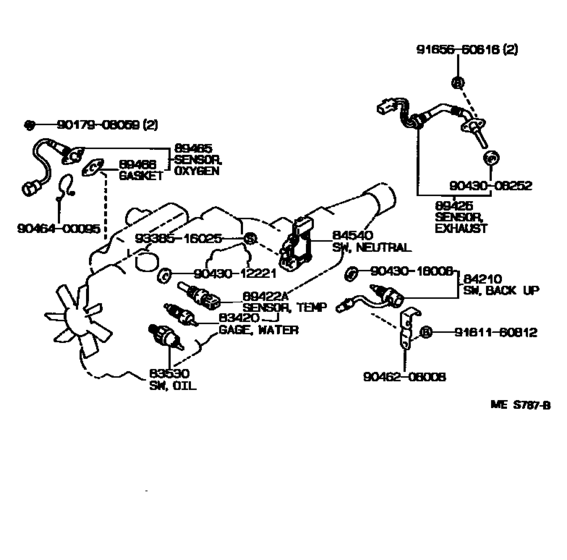

Switch & Relay & Computer ([12.1991 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9112- )TWLPG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- GS130
- grade
- SDX
- body
- SED
- ENGINE
- 1GGP
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 12.1991
- To
- 12.1995
- Gear Shift Type
- 4FC
- Fuel Induction
- TWLPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1991 - 08.1992] GS13#,JZS13#,LS13#,YS130 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30051
Switch Assy, Oil Pressure (For Engine)
[10.1991 - 11.1992] GS13# |
83530-30051 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[10.1991 - 11.1992] GS13# |
83530-60050 |
from US $30.54 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1992 - 08.1993] GS13#,JZS13# ＤＥＮＳＯ |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1992 - 08.1993] GS13#,JZS13# ＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-30290 Switch Assy, Neutral Start[12.1991 -] GS13#,LS136,YS130..ATM 東海理化 |
84540-30290 |
US $145.44 |
||
|
84540
|
84540
84540-30300 Switch Assy, Neutral Start[12.1991 -] GS13#,LS136,YS130..ATM ＭＡＴＳＵＳＨＩＴＡ |
84540-30300 |
US $143.27 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[12.1994 - 12.1995] GS130..TWLPG |
89422-20010 |
from US $36.78 |
||
|
89425
|
89425
89425-39405 Sensor, Exhaust Gas Temperature[10.1991 - 08.1993] GS13#,JZS13# |
89425-39405 |
US $298.48 |
||
|
89425
|
89425
89425-39445 Sensor, Exhaust Gas Temperature[08.1993 - 09.1997] GS13#,JZS13# |
89425-39445 |
US $298.48 |
||
|
89465
|
89465
89465-39585 Sensor, Oxygen[12.1991 - 08.1993] GS130..TWLPG |
89465-39585 |
US $136.86 |
||
|
89465
|
89465
89465-39725 Sensor, Oxygen[08.1993 - 03.1995] GS130..TWLPG |
89465-39725 |
US $142.69 |
||
|
89465
|
89465
89465-80003 Sensor, Oxygen[03.1995 - 12.1995] GS130..TWLPG |
89465-80003 |
US $144.14 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[12.1991 - 12.1995] GS130,JZS130,131,YS130..LPEFI,TWC,TWLPG |
89466-20020 |
from US $13.42 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9046400095
|
9046400095
90464-00095 New Genuine Part |
90464-00095 |
US $1.31 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165660616
|
9165660616
91656-60616
BOLT
|
91656-60616 |
— | ||
| replacement | |||||
|
9165660616
|
9165660616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
