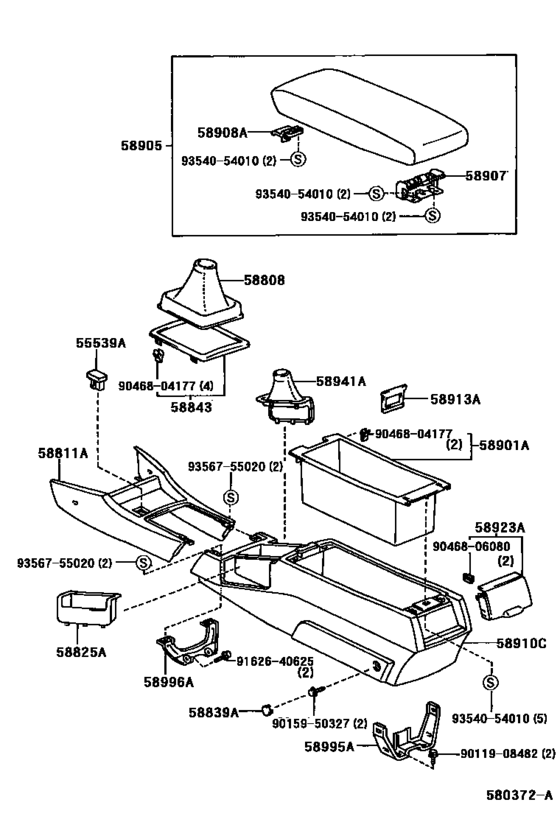

Console Box & Bracket ([12.1995 - ] (9512- )5F) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- GS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 5F
- Body Shape
- NOB
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-30080-C0
Cover, Spare Switch Hole
[08.1995 - 08.2001] GS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,R OY,ROYEX,ROYT) BLACK,TRIM1#,4# |
55539-30080-C0 |
— | ||
|
58808
|
58808
58808-30080-B1
Cover Sub-Assy, Shifting Hole
[12.1995 -] GS151..5F DK.BLUE GRAY,TRIM1# |
58808-30080-B1 |
— | ||
|
58808
|
58808
58808-30080-E1
Cover Sub-Assy, Shifting Hole
[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58808-30080-E1 |
— | ||
|
58811A
|
58811A
58811-30250-B0 Box, Console, Front[12.1995 -] GS151..5F DK.BLUE GRAY,TRIM1# |
58811-30250-B0 |
US $109.20 |
||
|
58811A
|
58811A
58811-30250-E0
Box, Console, Front
[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58811-30250-E0 |
— | ||
| replacement | |||||
|
58811A
|
58811A
58811-30250-B0 Box, Console, Front[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58811-30250-B0 |
US $109.20 |
||
|
58825A
|
58825A
58825-30100-B0 Pocket, Console Box[12.1995 -] GS151..5F DK.BLUE GRAY,TRIM1# |
58825-30100-B0 |
US $23.88 |
||
|
58825A
|
58825A
58825-30100-E0 Pocket, Console Box[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58825-30100-E0 |
US $23.88 |
||
| replacement | |||||
|
58825A
|
58825A
58825-30100-B0 Pocket, Console Box[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58825-30100-B0 |
US $23.88 |
||
|
58839A
|
58839A
58917-30100-B0
Cover, Console Box Hole
[08.1995 - 08.2001] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX DARK BLUE GRAY,TRIM1# |
58917-30100-B0 |
— | ||
|
58839A
|
58839A
58917-30100-E1
Cover, Console Box Hole
[08.1995 - 08.2001] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
58917-30100-E1 |
— | ||
| replacement | |||||
|
58839A
|
58839A
58917-30100-B0
Cover, Console Box Hole
[08.1995 - 08.2001] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ANTELOPE,TRIM4# |
58917-30100-B0 |
— | ||
|
58843
|
58843
58843-30050
Bezel, Shifting Hole
[12.1995 -] GS151..5F |
58843-30050 |
— | ||
|
58901A
|
58901A
58912-30150
Box Sub-Assy, Console, Rear
[12.1995 - 09.1999] GS151..5F |
58912-30150 |
— | ||
|
58905
|
58905
58905-30390-B0 Door Sub-Assy, Console Compartment[12.1995 - 09.1999] GS151..5F DK.BLUE GRAY,TRIM1# |
58905-30390-B0 |
US $182 |
||
|
58905
|
58905
58905-30390-E0 Door Sub-Assy, Console Compartment[12.1995 - 09.1999] GS151..5F ANTELOPE,TRIM4# |
58905-30390-E0 |
US $182 |
||
|
58907
|
58907
58907-30110 Hinge Sub-Assy, Console Compartment Door[12.1995 - 09.1999] GS151..5F |
58907-30110 |
US $30.87 |
||
|
58908A
|
58908A
58908-32020
Lock Sub-Assy, Console Compartment Door
[12.1995 -] GS151..5F |
58908-32020 |
— | ||
| replacement | |||||
|
58908A
|
58908A
58908-12080 Lock Sub-Assy, Console Compartment Door[12.1995 -] GS151..5F |
58908-12080 |
from US $13.38 |
||
|
58910C
|
58910C
58911-30120-B0 Box Assy, Console, Rear[12.1995 -] GS151..5F DK.BLUE GRAY,TRIM1# |
58911-30120-B0 |
US $215.49 |
||
|
58910C
|
58910C
58911-30120-E0
Box Assy, Console, Rear
[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58911-30120-E0 |
— | ||
| replacement | |||||
|
58910C
|
58910C
58911-30120-B0 Box Assy, Console, Rear[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58911-30120-B0 |
US $215.49 |
||
|
58913A
|
58913A
58913-30020-B0 Panel, Box, No.3[12.1995 -] GS151..5F DK.BLUE GRAY,TRIM1# |
58913-30020-B0 |
US $8.30 |
||
|
58913A
|
58913A
58913-30020-E0
Panel, Box, No.3
[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58913-30020-E0 |
— | ||
| replacement | |||||
|
58913A
|
58913A
58913-30020-B0 Panel, Box, No.3[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58913-30020-B0 |
US $8.30 |
||
|
58923A
|
58923A
58903-30120-B0
Panel, Console Rear End
[08.1995 - 08.2001] JZS153..SALEX;GS151,JZS151,LS151..ROYEX,SALEX,SPDLX ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.BLUE GRAY,TRIM1# |
58903-30120-B0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30170 Panel, Console Rear End[08.1995 - 08.2001] JZS153..SALEX;GS151,JZS151,LS151..ROYEX,SALEX,SPDLX ｱﾘ(ﾘﾔ ｴｱｺﾝ),DK.BLUE GRAY,TRIM1# |
58903-30170 |
US $58.39 |
||
|
58923A
|
58923A
58903-30120-E0
Panel, Console Rear End
[08.1995 - 08.2001] JZS153..SALEX;GS151,JZS151,LS151..ROYEX,SALEX,SPDLX ｱﾘ(ｺﾝﾄﾛ-ﾙ ﾉﾌﾞ),ANTELOPE,TRIM4# |
58903-30120-E0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30170 Panel, Console Rear End[08.1995 - 08.2001] JZS153..SALEX;GS151,JZS151,LS151..ROYEX,SALEX,SPDLX ｱﾘ(ｺﾝﾄﾛ-ﾙ ﾉﾌﾞ),ANTELOPE,TRIM4# |
58903-30170 |
US $58.39 |
||
|
58923A
|
58923A
58903-30140-B0
Panel, Console Rear End
[12.1995 - 09.1999] GS151..SPDLX..HTWC ｱﾘ(ﾎﾞﾂｸｽ),DK.BLUE GRAY,TRIM1# |
58903-30140-B0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30180 Panel, Console Rear End[12.1995 - 09.1999] GS151..SPDLX..HTWC ｱﾘ(ﾎﾞﾂｸｽ),DK.BLUE GRAY,TRIM1# |
58903-30180 |
US $80.08 |
||
|
58923A
|
58923A
58903-30140-E0
Panel, Console Rear End
[12.1995 - 09.1999] GS151..SPDLX..HTWC ｱﾘ(ﾎﾞﾂｸｽ),ANTELOPE,TRIM4# |
58903-30140-E0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30180 Panel, Console Rear End[12.1995 - 09.1999] GS151..SPDLX..HTWC ｱﾘ(ﾎﾞﾂｸｽ),ANTELOPE,TRIM4# |
58903-30180 |
US $80.08 |
||
|
58941A
|
58941A
58904-30120-B0
Cover, Parking Brake Hole
[12.1995 -] GS151..5F DK.BLUE GRAY,TRIM1# |
58904-30120-B0 |
— | ||
|
58941A
|
58941A
58904-30120-E0
Cover, Parking Brake Hole
[12.1995 -] GS151..5F ANTELOPE,TRIM4# |
58904-30120-E0 |
— | ||
|
58995A
|
58995A
58995-30130
Bracket, Console Box Mounting, No.1
[08.1995 -] GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
58995-30130 |
— | ||
|
58996A
|
58996A
58996-30050 Bracket, Console Box Mounting, No.2[12.1995 -] GS151..5F |
58996-30050 |
US $19.80 |
||
|
9011908482
|
9011908482
90119-08482 New Genuine Part |
90119-08482 |
US $2.33 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9046806080
|
9046806080
90468-06080 CLIP |
90468-06080 |
US $2.77 |
||
|
9162640625
|
9162640625
91626-40625
New Genuine Part
|
91626-40625 |
— | ||
| replacement | |||||
|
9162640625
|
9162640625
91621-40620 Bolt |
91621-40620 |
from US $1.92 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
