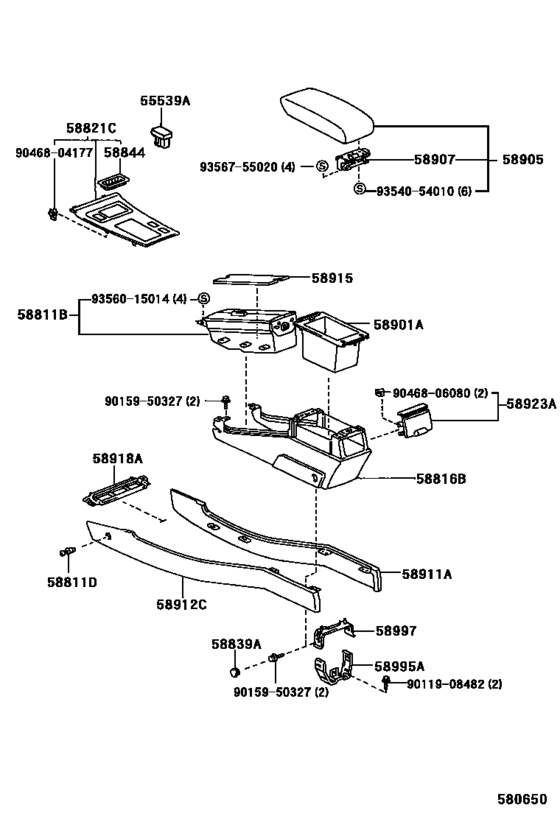

Console Box & Bracket ([12.1995 - ] (9512- )RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1997 - 1998
- Sales region
- General
- Frame
- GS151
- grade
- ROYEX
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 07.1997
- To
- 08.1998
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-30080-C0
Cover, Spare Switch Hole
[12.1995 - 09.1999] JZS155..LHD;GS151,JZS155..HT BLACK,TRIM1#,4# |
55539-30080-C0 |
— | ||
|
58811B
|
58811B
58801-30220-B0 Box, Console[07.1997 - 08.1998] GS151 DK.BLUE GRAY,TRIM1# |
58801-30220-B0 |
US $238.78 |
||
|
58811B
|
58811B
58801-30220-E1 Box, Console[07.1997 - 08.1998] GS151 ANTELOPE,TRIM4# |
58801-30220-E1 |
US $238.78 |
||
|
58811B
|
58811B
58801-30230 Box, Console[07.1997 - 09.1999] GS151,JZS155..RHD WOOD GRAIN |
58801-30230 |
US $356.72 |
||
|
58811D
|
58811D
90467-08182-B2 Clip(For Console Box)[12.1995 - 09.1999] GS151,JZS155..RHD DK.BLUE GRAY,TRIM1# |
90467-08182-B2 |
US $2.24 |
||
|
58811D
|
58811D
90467-08182-E1 Clip(For Console Box)[12.1995 - 09.1999] GS151,JZS155..RHD ANTELOPE,TRIM4# |
90467-08182-E1 |
US $2.24 |
||
|
58816B
|
58816B
58816-30060-B0 Insert, Console Box[12.1995 - 09.1999] GS151,JZS155..RHD DK.BLUE GRAY,TRIM1# |
58816-30060-B0 |
US $171.81 |
||
|
58816B
|
58816B
58816-30060-E1 Insert, Console Box[12.1995 - 09.1999] GS151,JZS155..RHD ANTELOPE,TRIM4# |
58816-30060-E1 |
US $171.81 |
||
| replacement | |||||
|
58816B
|
58816B
58816-30060-B0 Insert, Console Box[12.1995 - 09.1999] GS151,JZS155..RHD ANTELOPE,TRIM4# |
58816-30060-B0 |
US $171.81 |
||
|
58821C
|
58821C
58804-30240 Panel, Console, Upper[07.1997 - 08.1998] GS151 |
58804-30240 |
US $80.08 |
||
|
58821C
|
58821C
58804-30370 Panel, Console, Upper[07.1997 -] GS151,JZS155..RHD WOOD GRAIN |
58804-30370 |
US $164.53 |
||
|
58839A
|
58839A
58917-30100-B0
Cover, Console Box Hole
[12.1995 - 08.2001] GS151,JZS155 DARK BLUE GRAY,TRIM1# |
58917-30100-B0 |
— | ||
|
58839A
|
58839A
58917-30100-E1
Cover, Console Box Hole
[12.1995 - 08.2001] GS151,JZS155 ANTELOPE,TRIM4# |
58917-30100-E1 |
— | ||
| replacement | |||||
|
58839A
|
58839A
58917-30100-B0
Cover, Console Box Hole
[12.1995 - 08.2001] GS151,JZS155 ANTELOPE,TRIM4# |
58917-30100-B0 |
— | ||
|
58844
|
58844
58844-30080 Bezel, Console Box[12.1995 -] GS151,JZS155..RHD |
58844-30080 |
US $15 |
||
|
58901A
|
58901A
58811-30310 Box Sub-Assy, Console, Rear[12.1995 -] GS151,JZS155..RHD |
58811-30310 |
US $123.76 |
||
|
58905
|
58905
58905-30440-B0 Door Sub-Assy, Console Compartment[07.1997 - 08.1998] GS151 DK.BLUE GRAY,TRIM1# |
58905-30440-B0 |
US $206.75 |
||
|
58905
|
58905
58905-30440-E0 Door Sub-Assy, Console Compartment[07.1997 - 08.1998] GS151 ANTELOPE,TRIM4# |
58905-30440-E0 |
US $206.75 |
||
|
58905
|
58905
58905-30480-B0 Door Sub-Assy, Console Compartment[07.1997 - 08.1998] GS151 W(CONSOLE BOX = FABRIC),BLUE GRAY,TRIM1# |
58905-30480-B0 |
US $362.54 |
||
|
58905
|
58905
58905-30480-E0 Door Sub-Assy, Console Compartment[07.1997 - 08.1998] GS151 W(CONSOLE BOX = FABRIC),QUARTZ,TRIM4# |
58905-30480-E0 |
US $362.54 |
||
| replacement | |||||
|
58905
|
58905
58905-30480-B0 Door Sub-Assy, Console Compartment[07.1997 - 08.1998] GS151 W(CONSOLE BOX = FABRIC),QUARTZ,TRIM4# |
58905-30480-B0 |
US $362.54 |
||
|
58907
|
58907
58907-30100 Hinge Sub-Assy, Console Compartment Door[12.1995 -] GS151,JZS155..RHD |
58907-30100 |
US $30.87 |
||
|
58911A
|
58911A
58911-30130-B0 Panel, Box Side, No.1[12.1995 - 09.1999] GS151,JZS155..RHD DK.BLUE GRAY,TRIM1# |
58911-30130-B0 |
US $106.29 |
||
|
58911A
|
58911A
58911-30130-E1 Panel, Box Side, No.1[12.1995 - 09.1999] GS151,JZS155..RHD ANTELOPE,TRIM4# |
58911-30130-E1 |
US $106.29 |
||
| replacement | |||||
|
58911A
|
58911A
58911-30130-B0 Panel, Box Side, No.1[12.1995 - 09.1999] GS151,JZS155..RHD ANTELOPE,TRIM4# |
58911-30130-B0 |
US $106.29 |
||
|
58912C
|
58912C
58912-30170-B0 Panel, Box Side, No.2[12.1995 - 09.1999] GS151,JZS155..RHD DK.BLUE GRAY,TRIM1# |
58912-30170-B0 |
US $106.29 |
||
|
58912C
|
58912C
58912-30170-E1 Panel, Box Side, No.2[12.1995 - 09.1999] GS151,JZS155..RHD ANTELOPE,TRIM4# |
58912-30170-E1 |
US $106.29 |
||
|
58915
|
58915
58915-30050 Panel, Box Bottom[12.1995 -] GS151,JZS155..RHD |
58915-30050 |
US $35.82 |
||
|
58918A
|
58918A
58918-30040 Bracket, Box Support[12.1995 -] GS151,JZS155..RHD |
58918-30040 |
US $23.88 |
||
|
58923A
|
58923A
58903-30120-B0
Panel, Console Rear End
[12.1995 - 08.2001] GS151;JZS155..LHD W(REAR AIR CONDITIONER),DK.BLUE GRAY,TRIM1# |
58903-30120-B0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30170 Panel, Console Rear End[12.1995 - 08.2001] GS151;JZS155..LHD W(REAR AIR CONDITIONER),DK.BLUE GRAY,TRIM1# |
58903-30170 |
US $58.39 |
||
|
58923A
|
58923A
58903-30120-E0
Panel, Console Rear End
[12.1995 - 08.2001] GS151;JZS155..LHD W(REAR AIR CONDITIONER),ANTELOPE,TRIM4# |
58903-30120-E0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30170 Panel, Console Rear End[12.1995 - 08.2001] GS151;JZS155..LHD W(REAR AIR CONDITIONER),ANTELOPE,TRIM4# |
58903-30170 |
US $58.39 |
||
|
58923A
|
58923A
58903-30140-B0
Panel, Console Rear End
[12.1995 - 08.2001] GS151,JZS155..ROYEX,SPSAL DK.BLUE GRAY,TRIM1# |
58903-30140-B0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30180 Panel, Console Rear End[12.1995 - 08.2001] GS151,JZS155..ROYEX,SPSAL DK.BLUE GRAY,TRIM1# |
58903-30180 |
US $80.08 |
||
|
58923A
|
58923A
58903-30140-E0
Panel, Console Rear End
[12.1995 - 08.2001] GS151,JZS155..ROYEX,SPSAL ANTELOPE,TRIM4# |
58903-30140-E0 |
— | ||
| replacement | |||||
|
58923A
|
58923A
58903-30180 Panel, Console Rear End[12.1995 - 08.2001] GS151,JZS155..ROYEX,SPSAL ANTELOPE,TRIM4# |
58903-30180 |
US $80.08 |
||
|
58923A
|
58923A
58903-30170 Panel, Console Rear End[07.1997 - 09.1999] GS151,JZS155..RHD W(REAR AIR CONDITIONER) |
58903-30170 |
US $58.39 |
||
|
58923A
|
58923A
58903-30180 Panel, Console Rear End[07.1997 - 08.1998] GS151 |
58903-30180 |
US $80.08 |
||
|
58995A
|
58995A
58995-30130
Bracket, Console Box Mounting, No.1
[12.1995 -] GS151,JZS155 |
58995-30130 |
— | ||
|
58997
|
58997
58997-30070 Bracket, Console Box Mounting, No.3[12.1995 -] GS151,JZS155..RHD |
58997-30070 |
US $12.67 |
||
|
9011908482
|
9011908482
90119-08482 New Genuine Part |
90119-08482 |
US $2.33 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9046806080
|
9046806080
90468-06080 CLIP |
90468-06080 |
US $2.77 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
