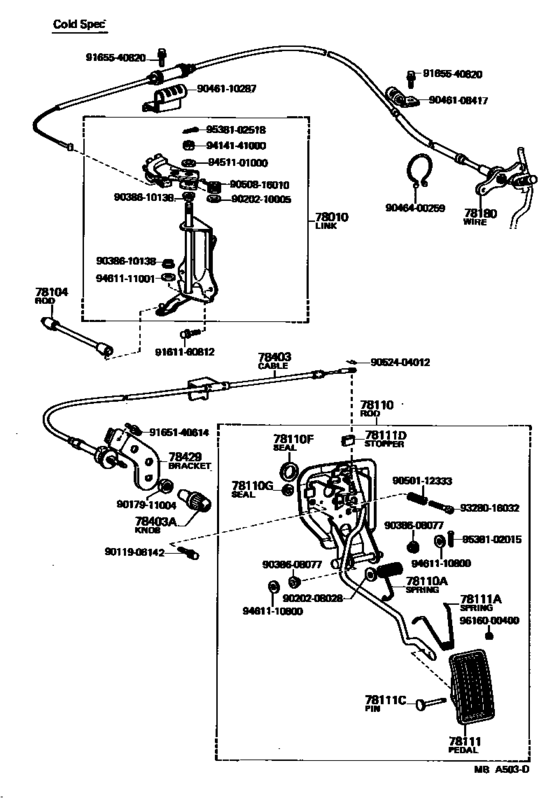

Accelerator Link ([09.1979 - ] (7909- )LS110,117) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78100-30410
Link, Accelerator
[09.1979 - 10.1980] LS11#..MTM |
78100-30410 |
— | ||
|
78010
|
78010
78100-30450
Link, Accelerator
[10.1980 - 07.1983] LS110,117..MTM |
78100-30450 |
— | ||
|
78104
|
78104
78104-30100
Rod Sub-Assy, Accelerator Connecting, No.2
[09.1979 - 10.1980] LS11# |
78104-30100 |
— | ||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[10.1980 - 07.1983] LS110,117 |
78104-30120 |
— | ||
|
78110
|
78110
78120-30230
Rod Assy, Accelerator Pedal
[09.1979 - 07.1983] LS110,117..MTM; MS110,RS110..MTM..LPG |
78120-30230 |
— | ||
|
78110
|
78110
78120-30280
Rod Assy, Accelerator Pedal
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM COLD SPEC |
78120-30280 |
— | ||
|
78110A
|
78110A
90508-23026 Spring (For Accelerator Pedal Rod)[09.1979 - 07.1983] LS110,117..MTM; MS110,RS110..MTM..LPG; GS110,LS11#,MS110,112..ATM COLD SPEC |
90508-23026 |
US $3.93 |
||
|
78110A
|
78110A
90508-29011 Spring (For Accelerator Pedal Rod)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM COLD SPEC |
90508-29011 |
US $4.95 |
||
|
78110F
|
78110F
78129-30050
Seal, No.1 (For Accelerator Pedal Rod)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78129-30050 |
— | ||
|
78110G
|
78110G
78139-30050
Seal, No.2 (For Accelerator Pedal Rod)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78139-30050 |
— | ||
|
78111
|
78111
78111-12100 Pedal, Accelerator[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 COLD SPEC |
78111-12100 |
from US $18.54 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78111-30081 |
US $10.13 |
||
|
78111A
|
78111A
90508-16002 Spring (For Accelerator Pedal)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 COLD SPEC |
90508-16002 |
US $1.89 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 COLD SPEC |
90249-05001 |
US $3.32 |
||
|
78111D
|
78111D
78119-30050 Stopper (For Accelerator Pedal)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78119-30050 |
US $2.77 |
||
|
78180
|
78180
78180-30130
Wire Assy, Accelerator
[09.1979 - 10.1980] LS11# |
78180-30130 |
— | ||
|
78180
|
78180
78180-30131 Wire Assy, AcceleratorACCELERATOR [10.1980 - 07.1983] LS110,117 |
78180-30131 |
US $54.02 |
||
|
78403
|
78403
78401-30020
Cable Sub-Assy, Throttle Control
[09.1979 - 07.1983] LS110,117 |
78401-30020 |
— | ||
|
78403A
|
78403A
78411-30040 Knob, Throttle ControlTHROTTLE CONTROL [09.1979 - 07.1983] LS110,117 |
78411-30040 |
US $9.46 |
||
|
78429
|
78429
78371-30030
Bracket, Throttle Rod
[09.1979 - 07.1983] LS110,117,MS110,RS110..(BTP,DLX,SDX,STD)..(DSL,LPG) |
78371-30030 |
— | ||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $1.92 |
||
|
9017911004
|
9017911004
90179-11004 New Genuine Part |
90179-11004 |
US $2.18 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046108417
|
9046108417
90461-08417 New Genuine Part |
90461-08417 |
US $8.15 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9046400259
|
9046400259
90464-00259 New Genuine Part |
90464-00259 |
US $2.77 |
||
| replacement | |||||
|
9046400259
|
9046400259
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9050112333
|
9050112333
90501-12333 Spring, Compression (For Throttle Valve) |
90501-12333 |
US $2.18 |
||
|
9050816010
|
9050816010
90508-16010 Spring, Torsion (For Accelerator Link) |
90508-16010 |
US $5.39 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9328016032
|
9328016032
93280-16032 New Genuine Part |
93280-16032 |
US $2.33 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.88 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
