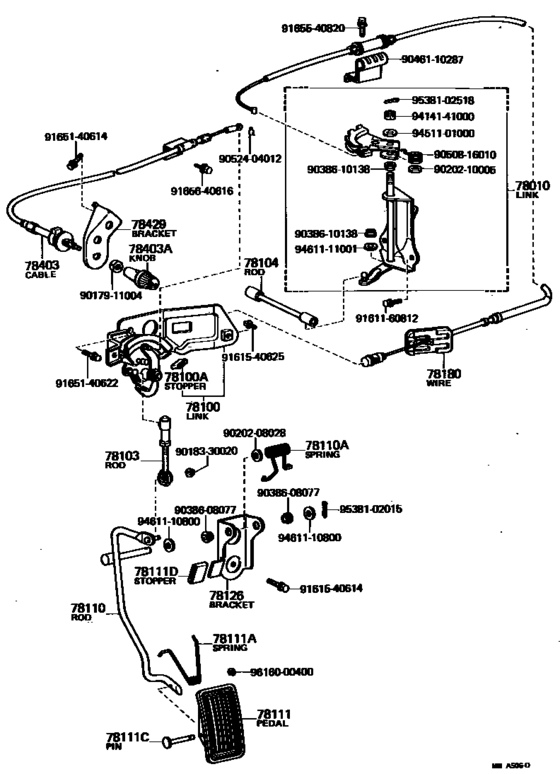

Accelerator Link ([09.1979 - ] (7909- )LS110..LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- General
- Frame
- LS110
- grade
- BTP
- body
- SED
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78100-30410
Link, Accelerator
[09.1979 - 10.1980] LS110..MTM |
78100-30410 |
— | ||
|
78010
|
78010
78100-30450
Link, Accelerator
[10.1980 - 07.1983] LS110..MTM |
78100-30450 |
— | ||
|
78100
|
78100
78100-30440
Link Assy, Accelerator
[09.1979 - 07.1983] LS110..LHD |
78100-30440 |
— | ||
|
78100A
|
78100A
78118-12010 Stopper, Accelerator Link[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
78118-12010 |
US $3.20 |
||
|
78103
|
78103
78103-30220
Rod Sub-Assy, Accelerator Connecting, No.1
[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
78103-30220 |
— | ||
|
78104
|
78104
78104-30100
Rod Sub-Assy, Accelerator Connecting, No.2
[09.1979 - 10.1980] LS110 |
78104-30100 |
— | ||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[10.1980 - 07.1983] LS110 |
78104-30120 |
— | ||
|
78110
|
78110
78102-30130
Rod Assy, Accelerator Pedal
[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
78102-30130 |
— | ||
|
78110A
|
78110A
90508-35008 Spring (For Accelerator Pedal Rod)[09.1979 - 07.1983] MS112..5F..EFI; LS110..LHD..MTM |
90508-35008 |
US $4.08 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
78111-12100 |
from US $18.54 |
||
|
78111A
|
78111A
90508-16002 Spring (For Accelerator Pedal)[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
90508-16002 |
US $1.89 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
90249-05001 |
US $3.32 |
||
|
78111D
|
78111D
78119-30040 Stopper (For Accelerator Pedal)[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
78119-30040 |
US $3.49 |
||
|
78126
|
78126
78124-30050
Bracket, Accelerator Pedal Rod
[09.1979 - 07.1983] LS110,MS11#,RS110..LHD |
78124-30050 |
— | ||
|
78180
|
78180
78180-30120
Wire Assy, Accelerator
[09.1979 - 10.1980] LS110..LHD |
78180-30120 |
— | ||
|
78180
|
78180
78180-30121 Wire Assy, AcceleratorACCELERATOR [10.1980 - 07.1983] LS110..LHD |
78180-30121 |
US $50.81 |
||
|
78403
|
78403
78401-30030
Cable Sub-Assy, Throttle Control
[09.1979 - 07.1983] LS110..LHD |
78401-30030 |
— | ||
|
78403A
|
78403A
78411-30040 Knob, Throttle ControlTHROTTLE CONTROL [09.1979 - 07.1983] LS110 |
78411-30040 |
US $9.46 |
||
|
78429
|
78429
78371-30040
Bracket, Throttle Rod
[09.1979 - 07.1983] LS110..LHD |
78371-30040 |
— | ||
|
9017911004
|
9017911004
90179-11004 New Genuine Part |
90179-11004 |
US $2.18 |
||
|
9018330020
|
9018330020
90183-30020
New Genuine Part
|
90183-30020 |
— | ||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9050816010
|
9050816010
90508-16010 Spring, Torsion (For Accelerator Link) |
90508-16010 |
US $5.39 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161540625
|
9161540625
91615-40625 Bolt, W/washer (for Parking Cove & Case) |
91615-40625 |
US $1.89 |
||
| replacement | |||||
|
9161540625
|
9161540625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.88 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
