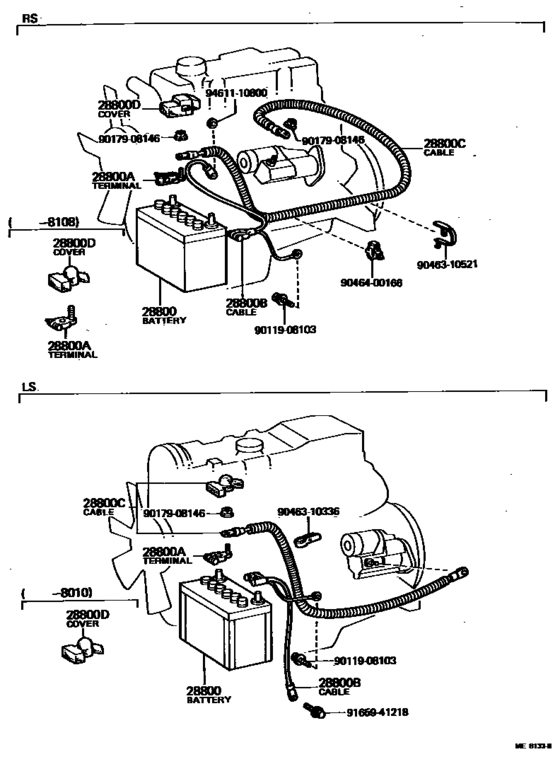

Battery & Battery Cable ([09.1979 - ] (7909- )LS11#,RS110) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-54050
Battery
[09.1979 - 07.1983] L,2LT#..LS11# １３０Ｅ４１Ｌ,NX200-10L |
28800-54050 |
— | ||
|
28800
|
28800
28800-54200
Battery
[08.1981 - 07.1983] MTEU..MS110;L,2LT..LS11#..MTM ８０Ｄ２６Ｌ,NX110-5L-MF |
28800-54200 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-67102
Battery
[08.1981 - 07.1983] MTEU..MS110;L,2LT..LS11#..MTM ８０Ｄ２６Ｌ,NX110-5L-MF |
28800-67102 |
— | ||
|
28800A
|
28800A
90982-05005
Terminal, Battery Positive
[08.1981 - 07.1983] L,2LT#..LS11# ID=17.5 |
90982-05005 |
— | ||
| replacement | |||||
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[08.1981 - 07.1983] L,2LT#..LS11# ID=17.5 |
90982-05030 |
from US $13.38 |
||
|
28800B
|
28800B
90982-02151 Cable, Battery To GroundBATTERY TO GROUND [09.1979 - 07.1983] L,2LT#..LS11# |
90982-02151 |
US $53 |
||
|
9011908103
|
9011908103
90119-08103 New Genuine Part |
90119-08103 |
US $1.44 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046310336
|
9046310336
90463-10336 CLAMP |
90463-10336 |
from US $1.29 |
||
|
9046310521
|
9046310521
90463-10521 CLAMP |
90463-10521 |
from US $1.07 |
||
|
9046400166
|
9046400166
90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7 |
90464-00166 |
US $2.56 |
||
|
9165941218
|
9165941218
91659-41218 New Genuine Part |
91659-41218 |
US $3.20 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
