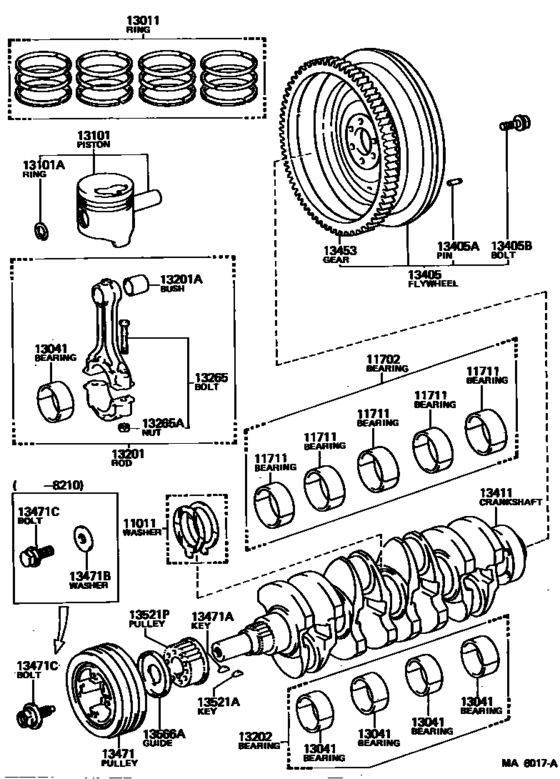

Crankshaft & Piston ([08.1982 - ] (8208- )2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-54010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] L,2LT#..LS11# ＳＴＤ,STD |
11011-54010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-54020 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] L,2LT#..LS11# ＳＴＤ,STD |
11011-54020 |
from US $17.02 |
||
|
11011
|
11011
11012-54010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-54010 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-54020 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-54020 |
US $17.30 |
||
|
11011
|
11011
11013-54010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-54010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-54020 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] L,2LT#..LS11# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-54020 |
US $17.30 |
||
|
11702
|
11702
11704-54040
Bearing Set, Crankshaft
[08.1982 - 04.1983] 2LT#..LS111 U/S 0.25 |
11704-54040 |
— | ||
|
11702
|
11702
11704-54060
Bearing Set, Crankshaft
[04.1983 - 07.1983] L,2LT#..LS11# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-54060 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-54081 Bearing Set, Crankshaft (0.25)[04.1983 - 07.1983] L,2LT#..LS11# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-54081 |
from US $112.24 |
||
|
11702
|
11702
11705-54040
Bearing Set, Crankshaft
[08.1982 - 04.1983] 2LT#..LS111 U/S 0.50 |
11705-54040 |
— | ||
|
11702
|
11702
11705-54060
Bearing Set, Crankshaft (0.50)
[04.1983 - 07.1983] L,2LT#..LS11# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-54060 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-54081 Bearing Set, Crankshaft (0.50)[04.1983 - 07.1983] L,2LT#..LS11# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-54081 |
from US $119.40 |
||
|
11711
|
11711
11701-54040-01
Bearing, Crankshaft
[08.1982 - 04.1983] 2LT#..LS111 MARK"1",MARK 1 |
11701-54040-01 |
— | ||
|
11711
|
11711
11701-54040-02 Bearing, CrankshaftCRANKSHAFT [08.1982 - 04.1983] 2LT#..LS111 MARK"2",MARK 2 |
11701-54040-02 |
US $58.09 |
||
|
11711
|
11711
11701-54040-03
Bearing, Crankshaft
[08.1982 - 04.1983] 2LT#..LS111 MARK"3",MARK 3 |
11701-54040-03 |
— | ||
|
11711
|
11711
11701-54060-01 Bearing, Crankshaft[04.1983 - 07.1983] L,2LT#..LS11# MARK"1",MARK 1 |
11701-54060-01 |
US $58.24 |
||
| replacement | |||||
|
11711
|
11711
11701-54081-01 Bearing, CrankshaftCRANKSHAFT [04.1983 - 07.1983] L,2LT#..LS11# MARK"1",MARK 1 |
11701-54081-01 |
from US $18.62 |
||
|
11711
|
11711
11701-54060-02 Bearing, Crankshaft[04.1983 - 07.1983] L,2LT#..LS11# MARK"2",MARK 2 |
11701-54060-02 |
US $58.24 |
||
| replacement | |||||
|
11711
|
11711
11701-54081-02 Bearing, CrankshaftCRANKSHAFT [04.1983 - 07.1983] L,2LT#..LS11# MARK"2",MARK 2 |
11701-54081-02 |
from US $18.84 |
||
|
11711
|
11711
11701-54060-03 Bearing, Crankshaft[04.1983 - 07.1983] L,2LT#..LS11# MARK"3",MARK 3 |
11701-54060-03 |
US $58.24 |
||
| replacement | |||||
|
11711
|
11711
11701-54081-03 Bearing, CrankshaftCRANKSHAFT [04.1983 - 07.1983] L,2LT#..LS11# MARK"3",MARK 3 |
11701-54081-03 |
from US $21.14 |
||
|
13011
|
13011
13011-54060
Ring Set, Piston
[08.1982 - 07.1983] 2LT#..LS111 ＳＴＤ,STD |
13011-54060 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-54062 Ring Set, Piston[08.1982 - 07.1983] 2LT#..LS111 ＳＴＤ,STD |
13011-54062 |
from US $219.69 |
||
|
13011
|
13011
13013-54060 Ring Set, Piston[08.1982 - 07.1983] 2LT#..LS111 O/S 0.50 |
13013-54060 |
US $256.26 |
||
| replacement | |||||
|
13011
|
13011
13013-54062 Ring Set, Piston[08.1982 - 07.1983] 2LT#..LS111 O/S 0.50 |
13013-54062 |
US $254.16 |
||
|
13041
|
13041
13041-54040-01 Bearing, Connecting Rod[08.1982 - 07.1983] 2LT#..LS111 STD,MARK"1",MARK 1 |
13041-54040-01 |
US $35.53 |
||
| replacement | |||||
|
13041
|
13041
13041-54042-01 Bearing, Connecting RodCONNECTING ROD [08.1982 - 07.1983] 2LT#..LS111 STD,MARK"1",MARK 1 |
13041-54042-01 |
from US $13.53 |
||
|
13041
|
13041
13041-54040-02 Bearing, Connecting Rod[08.1982 - 07.1983] 2LT#..LS111 STD,MARK"2",MARK 2 |
13041-54040-02 |
US $35.53 |
||
| replacement | |||||
|
13041
|
13041
13041-54042-02 Bearing, Connecting RodCONNECTING ROD [08.1982 - 07.1983] 2LT#..LS111 STD,MARK"2",MARK 2 |
13041-54042-02 |
from US $13.75 |
||
|
13041
|
13041
13041-54040-03 Bearing, Connecting Rod[08.1982 - 07.1983] 2LT#..LS111 STD,MARK"3",MARK 3 |
13041-54040-03 |
US $35.53 |
||
| replacement | |||||
|
13041
|
13041
13041-54042-03 Bearing, Connecting RodCONNECTING ROD [08.1982 - 07.1983] 2LT#..LS111 STD,MARK"3",MARK 3 |
13041-54042-03 |
from US $14.78 |
||
|
13101
|
13101
13101-54030 Piston Sub-Assy, W/pin[08.1982 - 07.1983] 2LT#..LS111 ＳＴＤ,STD |
13101-54030 |
US $347.98 |
||
| replacement | |||||
|
13101
|
13101
13101-54030-02 Piston Sub-Assy, W/pin[08.1982 - 07.1983] 2LT#..LS111 ＳＴＤ,STD |
13101-54030-02 |
US $347.98 |
||
|
13101
|
13101
13103-54030
Piston Sub-Assy, W/pin
[08.1982 - 07.1983] 2LT#..LS111 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-54030 |
— | ||
|
13101A
|
13101A
90521-31001 Ring, Hole Snap(For Piston Pin)[08.1982 - 07.1983] 2LT#..LS111 |
90521-31001 |
US $1.31 |
||
|
13201
|
13201
13201-59025 Rod Sub-Assy, Connecting[08.1982 - 07.1983] 2LT#..LS111 |
13201-59025 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-59027 Rod Sub-Assy, Connecting[08.1982 - 07.1983] 2LT#..LS111 |
13201-59027 |
US $218.40 |
||
|
13201A
|
13201A
90999-73094
Bush(For Connecting Rod Small End)
[08.1982 - 07.1983] 2LT#..LS111 |
90999-73094 |
— | ||
| replacement | |||||
|
13201A
|
13201A
90999-73118
Bush(For Connecting Rod Small End)
[08.1982 - 07.1983] 2LT#..LS111 |
90999-73118 |
— | ||
|
13202
|
13202
13204-54040 Bearing Set, Connecting Rod[08.1982 - 07.1983] 2LT#..LS111 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-54040 |
US $183.46 |
||
| replacement | |||||
|
13202
|
13202
13204-54042 Bearing Set, Connecting Rod (0.25)[08.1982 - 07.1983] 2LT#..LS111 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-54042 |
from US $63.36 |
||
|
13202
|
13202
13205-54040 Bearing Set, Connecting Rod[08.1982 - 07.1983] 2LT#..LS111 Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-54040 |
US $183.46 |
||
| replacement | |||||
|
13202
|
13202
13205-54042 Bearing Set, Connecting Rod (0.50)[08.1982 - 07.1983] 2LT#..LS111 Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-54042 |
from US $66.09 |
||
|
13265
|
13265
13265-59025
Bolt, Connecting Rod
[09.1979 - 07.1983] L,2LT#..LS11# |
13265-59025 |
— | ||
| replacements | |||||
|
13265
|
13265
13265-54020
Bolt, Connecting Rod
[09.1979 - 07.1983] L,2LT#..LS11# |
13265-54020 |
— | ||
|
13265
|
13265
90179-10123 Nut, Hexagon(For Connecting Rod Bolt)[09.1979 - 07.1983] L,2LT#..LS11# |
90179-10123 |
from US $0.99 |
||
|
13265A
|
13265A
90170-10005
Nut, Hexagon(For Connecting Rod Bolt)
[09.1979 - 07.1983] L,2LT#..LS11# |
90170-10005 |
— | ||
| replacement | |||||
|
13265A
|
13265A
90179-10123 Nut, Hexagon(For Connecting Rod Bolt)[09.1979 - 07.1983] L,2LT#..LS11# |
90179-10123 |
from US $0.99 |
||
|
13405
|
13405
13405-59065
Flywheel Sub-Assy
[08.1982 - 07.1983] 2LT..LS111 |
13405-59065 |
— | ||
| replacement | |||||
|
13405
|
13405
13405-59066 Flywheel Sub-Assy[08.1982 - 07.1983] 2LT..LS111 |
13405-59066 |
US $269.07 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[09.1979 - 07.1983] 5RU..RS110 長さ＝２３，外径＝８,L=23,OD=8; MEU,MJ,5MEU,MU..MS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8; L,2LT..LS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8; 1GE#..GS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-12011 Bolt, Flywheel Setting[09.1979 - 07.1983] L,2LT..LS11#..MTM *12-1.25PX29-19 |
90105-12011 |
US $3.93 |
||
|
13411
|
13411
13401-54020 Crankshaft[08.1982 - 07.1983] 2LT#..LS111 |
13401-54020 |
US $1,820 |
||
| replacement | |||||
|
13411
|
13411
13401-54021 Crankshaft[08.1982 - 07.1983] 2LT#..LS111 |
13401-54021 |
US $1,820 |
||
|
13453
|
13453
13453-54010 Gear, Flywheel Ring[09.1979 - 07.1983] L,2LT..LS11#..MTM N=101 |
13453-54010 |
US $129.29 |
||
|
13471
|
13471
13408-54020 Pulley, Crankshaft[08.1982 - 07.1983] 2LT#..LS111 |
13408-54020 |
US $235.87 |
||
|
13471A
|
13471A
95161-20622
Key, Crankshaft(For Crankshaft Pulley Set)
[09.1979 - 07.1983] L,2LT#..LS11# |
95161-20622 |
— | ||
| replacement | |||||
|
13471A
|
13471A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[09.1979 - 07.1983] L,2LT#..LS11# |
95161-30622 |
from US $1.56 |
||
|
13471B
|
13471B
90201-14007
Washer, Plate(For Crankshaft Pulley Set)
[09.1979 - 10.1982] L,2LT#..LS11# |
90201-14007 |
— | ||
| replacement | |||||
|
13471B
|
13471B
90201-14030 Washer, Plate(For Crankshaft Pulley Set)[09.1979 - 10.1982] L,2LT#..LS11# |
90201-14030 |
US $9.76 |
||
|
13471C
|
13471C
90119-14005 Washer, Plate(For Crankshaft Pulley Set)[10.1982 - 07.1983] L,2LT#..LS11# *14-1.5PX40-31 |
90119-14005 |
US $5.60 |
||
|
13471C
|
13471C
91511-61435 Bolt(For Crankshaft Pulley Set)[09.1979 - 10.1982] L,2LT#..LS11# *14-1.5PX35-35 |
91511-61435 |
US $4.51 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14089 Bolt(For Crankshaft Pulley Set)[09.1979 - 10.1982] L,2LT#..LS11# *14-1.5PX35-35 |
90105-14089 |
from US $3.26 |
||
|
13521A
|
13521A
95161-20622
Key, Crankshaft(For Crankshaft Pulley Set)
[09.1979 - 07.1983] L,2LT#..LS11# |
95161-20622 |
— | ||
| replacement | |||||
|
13521A
|
13521A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[09.1979 - 07.1983] L,2LT#..LS11# |
95161-30622 |
from US $1.56 |
||
|
13521P
|
13521P
13521-54020 Pulley, Crankshaft Timing[05.1982 - 07.1983] L,2LT#..LS11# |
13521-54020 |
US $37.39 |
||
|
13566A
|
13566A
13566-54010 Guide, Timing Belt[09.1979 - 07.1983] L,2LT#..LS11# |
13566-54010 |
US $12.52 |
||
| replacement | |||||
|
13566A
|
13566A
13566-54040 Guide, Timing Belt[09.1979 - 07.1983] L,2LT#..LS11# |
13566-54040 |
from US $3.90 |
||
