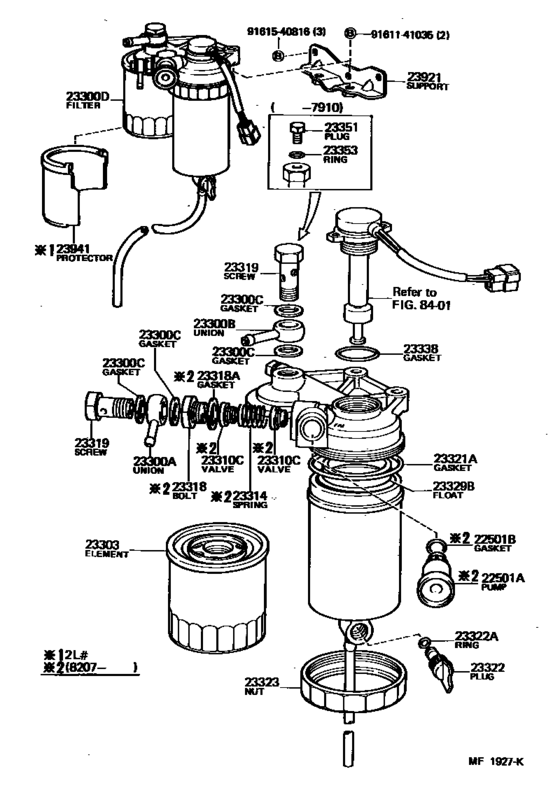

Fuel Filter ([09.1979 - ] (7909- )L,2LT#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22501A
|
22501A
22501-54010 Pump Sub-Assy, Priming[07.1982 - 07.1983] L,2LT#..LS11# |
22501-54010 |
US $38.44 |
||
|
22501B
|
22501B
23344-54020 Gasket(For Priming Pump)[07.1982 - 07.1983] L,2LT#..LS11# |
23344-54020 |
US $0.98 |
||
|
23300A
|
23300A
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[07.1982 - 07.1983] L,2LT#..LS11# |
90405-08016 |
— | ||
|
23300B
|
23300B
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[07.1982 - 07.1983] L,2LT#..LS11# |
90405-08016 |
— | ||
|
23300C
|
23300C
22447-47030 Gasket, Nipple Union(For Fuel)[09.1979 - 07.1983] L,2LT#..LS11# |
22447-47030 |
US $0.84 |
||
|
23300D
|
23300D
23300-54013 Filter Assy, Fuel(For Diesel)FUEL(FOR DIESEL) [08.1981 - 07.1983] L,2LT#..LS11# |
23300-54013 |
US $410.59 |
||
|
23303
|
23303
23303-54071
Element Sub-Assy, Fuel Filter
[08.1981 - 07.1983] L,2LT#..LS11# |
23303-54071 |
— | ||
| replacement | |||||
|
23303
|
23303
23303-54072 Element Sub-Assy, Fuel Filter[08.1981 - 07.1983] L,2LT#..LS11# |
23303-54072 |
from US $55.40 |
||
|
23310C
|
23310C
23316-54010 Valve Sub-Assy, Fuel Filter[07.1982 - 07.1983] L,2LT#..LS11# |
23316-54010 |
from US $3.35 |
||
|
23314
|
23314
23314-54010
Spring, Fuel Filter
[07.1982 - 07.1983] L,2LT#..LS11# |
23314-54010 |
— | ||
|
23318
|
23318
23323-54020
Bolt, Union
[07.1982 - 07.1983] L,2LT#..LS11# |
23323-54020 |
— | ||
|
23318A
|
23318A
15318-44010 Gasket, Oil Pressure Valve[07.1982 - 07.1983] L,2LT#..LS11# |
15318-44010 |
US $5.59 |
||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[10.1979 - 07.1983] L,2LT#..LS11# |
90099-18011 |
— | ||
|
23321A
|
23321A
23312-54010 Gasket, Filter Bowl[09.1979 - 07.1983] L,2LT#..LS11# |
23312-54010 |
US $9.43 |
||
|
23322
|
23322
23322-54010 Plug,air(For Oil Cooler Drain Cock)[09.1979 - 07.1983] L,2LT#..LS11# |
23322-54010 |
from US $6.08 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[09.1979 - 07.1983] L,2LT#..LS11# |
23344-54010 |
from US $1.60 |
||
|
23323
|
23323
23323-54010
Nut(For Fuel Filter Case Support)
[09.1979 - 07.1983] L,2LT#..LS11# |
23323-54010 |
— | ||
|
23329B
|
23329B
23329-54010
Float, Level Warning
[09.1979 - 07.1983] L,2LT#..LS11# |
23329-54010 |
— | ||
|
23338
|
23338
23338-54010 Gasket(For Warning Switch)[09.1979 - 07.1983] L,2LT#..LS11# |
23338-54010 |
US $3.32 |
||
|
23921
|
23921
23921-54010
Support, Fuel Filter
[09.1979 - 07.1983] L,2LT#..LS11# |
23921-54010 |
— | ||
|
23941
|
23941
23941-54010
Protector, Fuel Filter, No.1
[08.1982 - 07.1983] 2LT#..LS111 |
23941-54010 |
— | ||
|
9161141035
|
9161141035
91611-41035
New Genuine Part
|
91611-41035 |
— | ||
| replacement | |||||
|
9161141035
|
9161141035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9161540816
|
9161540816
91615-40816
Bolt (for Transmission Control Cable Bracket)
|
91615-40816 |
— | ||
| replacement | |||||
|
9161540816
|
9161540816
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
