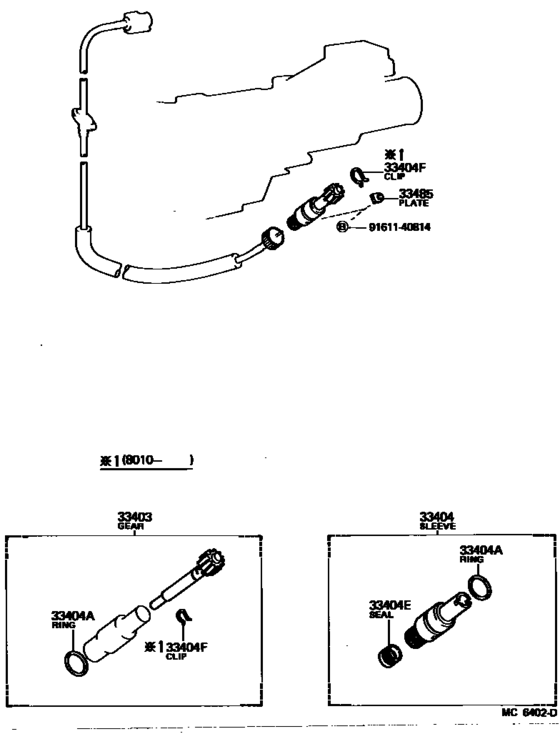

Speedometer Driven Gear (Mtm) ([09.1979 - ] (7909- )MTM) Diagram Toyota CROWN/ MAJESTA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- LS111
- grade
- SDX
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-29145 Gear Sub-Assy, Speedometer Driven (Mtm)[08.1982 - 07.1983] LS111..TD 歯数＝３１，マーク ３１：１０,N=31 |
33403-29145 |
from US $22.01 |
||
|
33404
|
33404
33404-22010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[08.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110..4F,5F |
33404-22010 |
from US $18.06 |
||
|
33404A
|
33404A
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[11.1981 - 07.1983] GS11#,LS11#,MS110,117,RS110..4F,5F |
96711-24030 |
from US $2.22 |
||
|
33404E
|
33404E
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM W/O ESC |
90310-09001 |
from US $2.56 |
||
|
33404F
|
33404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[10.1980 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM |
90468-12005 |
US $1.44 |
||
|
33485
|
33485
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..MTM |
33485-30020 |
from US $1.68 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
