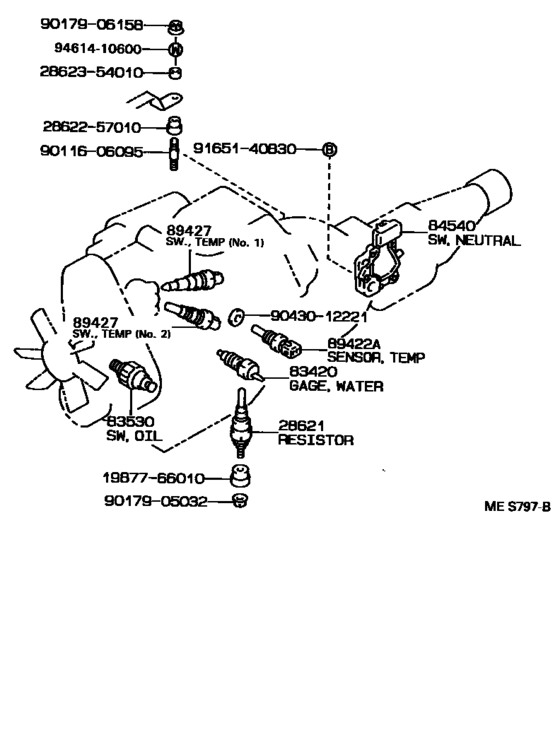

Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9110- )LS130,131) Diagram Toyota CROWN/ MAJESTA
- Year
- 1993 - 1995
- Sales region
- Japan
- Frame
- LS130
- grade
- SDX
- body
- SED
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1993
- To
- 09.1995
- Gear Shift Type
- 4FC
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1993 -] GS13#,JZS13#,LS13#,YS130..DSL,HTWC,LPEFI,TDE,TWC ＤＥＮＳＯ |
83420-16040 |
from US $30.58 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[10.1991 - 03.1998] LS13# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[10.1991 - 03.1998] LS13# |
83530-60030 |
from US $25.74 |
||
|
84540
|
84540
84540-30270 Switch Assy, Neutral Start[08.1993 -] JZS13#,LS130,131 |
84540-30270 |
US $145.44 |
||
|
89422A
|
89422A
89422-35010 Sensor, Water Temperature (For E.f.i.)[10.1991 -] LS130,131 |
89422-35010 |
from US $40.58 |
||
|
89427
|
89427
89428-30110
Switch, Temperature Detect
[10.1991 -] LS130,131 ＮＯ．１ |
89428-30110 |
— | ||
|
89427
|
89427
89428-30130
Switch, Temperature Detect
[10.1991 -] LS130,131 ＮＯ．２ |
89428-30130 |
— | ||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
