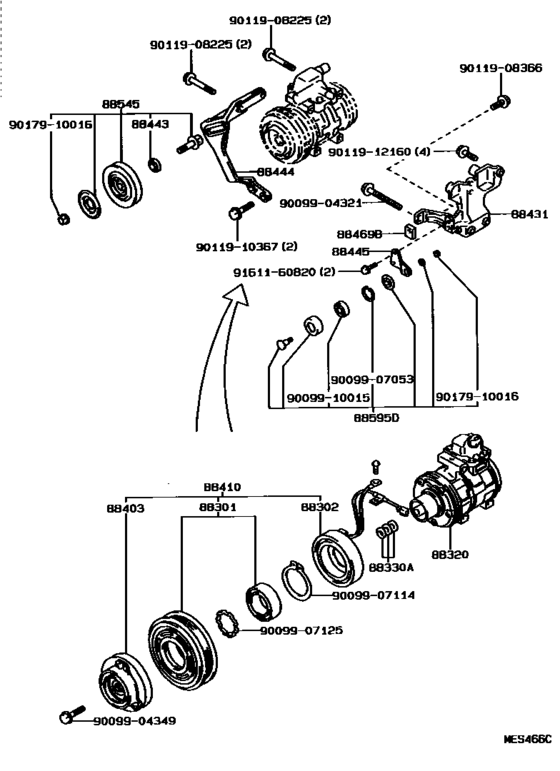

Heating & Air Conditioning - Compressor ([10.1991 - 08.1993] (9110-9308)LS130..LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1993
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 08.1993
- Gear Shift Type
- 4F
- Driver's Position
- LHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-30430
Rotor Sub-Assy, Magnet Clutch
[10.1991 - 08.1993] LS130..LHD |
88412-30430 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-2A060
Rotor Sub-Assy, Magnet Clutch
[10.1991 - 08.1993] LS130..LHD |
88412-2A060 |
— | ||
|
88302
|
88302
88411-30560
Stator Sub-Assy, Magnet Clutch
[10.1991 - 08.1993] LS130..LHD |
88411-30560 |
— | ||
|
88320
|
88320
88320-30550
Compressor Assy, Cooler
[10.1991 - 08.1993] LS130..LHD |
88320-30550 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H91 Compressor Assy, Cooler[10.1991 - 08.1993] LS130..LHD |
88320-35H91 |
US $1,579.47 |
||
|
88330A
|
88330A
88335-14020 Washer[10.1991 - 08.1993] LS130..LHD;GS131,JZS133 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[10.1991 - 02.1992] GS131;LS130..LHD |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-30740 Clutch Assy, Magnet[10.1991 - 08.1993] LS130..LHD |
88410-30740 |
US $499.41 |
||
| replacement | |||||
|
88410
|
88410
88410-3A020 Clutch Assy, Magnet[10.1991 - 08.1993] LS130..LHD |
88410-3A020 |
US $495.04 |
||
|
88431
|
88431
88431-22330
Bracket, Compressor Mounting, No.1
[10.1991 - 01.1992] LS130 |
88431-22330 |
— | ||
|
88431
|
88431
88431-22331
Bracket, Compressor Mounting, No.1
[01.1992 - 12.1995] LS130 |
88431-22331 |
— | ||
|
88443
|
88443
88443-36010 Collar, Idle Pulley[10.1991 - 08.1993] LS130 |
88443-36010 |
US $1.67 |
||
|
88444
|
88444
88444-30280
Bracket, Idle Pulley
[10.1991 - 01.1992] LS130..4F; LS130..4H FRONT SEMI *AIC |
88444-30280 |
— | ||
|
88445
|
88445
88444-22100
Bracket, Idle Pulley
[10.1991 - 12.1995] LS130 |
88444-22100 |
— | ||
|
88469B
|
88469B
88469-30280 Collar, Adjusting[10.1991 - 12.1995] LS130 |
88469-30280 |
US $1.54 |
||
|
88545
|
88545
88440-35010 Pulley Assy, Idle[10.1991 - 12.1995] LS130 |
88440-35010 |
from US $54.26 |
||
|
88595D
|
88595D
88440-26070 Pulley Assy, Idle[10.1991 - 12.1995] LS130 |
88440-26070 |
from US $58.06 |
||
|
9009904321
|
9009904321
90099-04321 Bolt, Idle Pulley |
90099-04321 |
US $2.62 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907053
|
9009907053
90099-07053
Ring, Snap (For Cooler Idle Pulley)
|
90099-07053 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
US $4 |
||
|
9009910015
|
9009910015
90099-10015 Bearing(For Alternator Rotor) |
90099-10015 |
US $13.40 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011908366
|
9011908366
90119-08366 New Genuine Part |
90119-08366 |
US $3.06 |
||
| replacement | |||||
|
9011908366
|
9011908366
90119-08326 New Genuine Part |
90119-08326 |
US $3.06 |
||
|
9011910367
|
9011910367
90119-10367 BOLT |
90119-10367 |
US $1.76 |
||
|
9011912160
|
9011912160
90119-12160 BOLT WWASHER |
90119-12160 |
US $2.40 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
