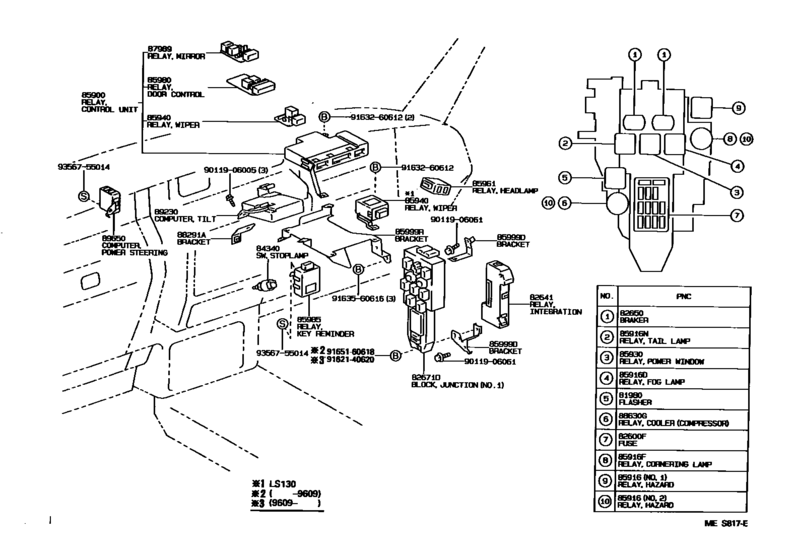

Switch & Relay & Computer ([10.1991 - ] COWL RH (9110- )RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1993 - 12.1995] LS130 W/O TAXI PACKAGE |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1993 - 12.1995] LS130 W/O TAXI PACKAGE |
81980-32010 |
from US $54.54 |
||
|
81980
|
81980
81980-22110
Flasher Assy, Turn Signal
[10.1991 - 08.1993] LS130..LHD;GS131,JZS133,YS132; LS130..RHD W/O TAXI PACKAGE |
81980-22110 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[10.1991 - 08.1993] LS130..LHD;GS131,JZS133,YS132; LS130..RHD W/O TAXI PACKAGE |
81980-32010 |
from US $54.54 |
||
|
81980
|
81980
81980-30110 Flasher Assy, Turn Signal[10.1991 - 12.1995] LS130..RHD; JZS133..D TAXI PACKAGE(SAUDI ARABIA); YS132 TAXI PACKAGE(IRAQ) OR (GENERAL) |
81980-30110 |
US $104.83 |
||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[10.1991 - 12.1995] LS130..RHD; JZS133..D TAXI PACKAGE(SAUDI ARABIA); YS132 TAXI PACKAGE(IRAQ) OR (GENERAL) |
81980-32010 |
from US $54.54 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 7.5A |
90982-09005 |
from US $1.03 |
||
|
82641
|
82641
82641-30160 Relay, Integration No.1[10.1991 - 08.1993] LS130..RHD |
82641-30160 |
US $297.02 |
||
|
82641
|
82641
82641-30210 Relay, Integration No.1[08.1993 - 12.1995] LS130 |
82641-30210 |
US $297.02 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[10.1991 - 04.2001] LS130,YS132;GS131,JZS133..RHD 30A |
82650-20011 |
US $14.08 |
||
|
82671D
|
82671D
82671-30090 Block, Junction[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
82671-30090 |
US $410.59 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[10.1991 - 04.2001] GS131,JZS133,LS130,YS132..GCC,GEN |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[10.1991 - 04.2001] GS131,JZS133,LS130,YS132..GCC,GEN |
84340-42010 |
from US $21.26 |
||
|
85900
|
85900
85900-30230 Relay Assy, Control Unit[10.1991 - 12.1995] LS130..4H |
85900-30230 |
US $560.56 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[10.1991 - 12.1995] LS130..RHD NO.2,DENSO |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85916
|
85916
909870200483 [10.1991 - 12.1995] LS130..RHD NO.2,DENSO |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02008 Relay, Defogger[10.1991 - 12.1995] LS130..RHD NO.2,MARUKO |
90987-02008 |
US $57.08 |
||
|
85916
|
85916
90987-04002 Relay, Ignition, No.1[10.1991 - 12.1995] LS130..RHD NO.1 |
90987-04002 |
from US $24.67 |
||
|
85916D
|
85916D
90987-02008 Relay, Defogger[08.1993 - 04.2001] GS131,JZS133,LS130..(4FC,4H,5F)..(B,G,Q) |
90987-02008 |
US $57.08 |
||
|
85916N
|
85916N
90987-02008 Relay, Defogger[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
90987-02008 |
US $57.08 |
||
|
85940
|
85940
85940-30170
Relay Assy, Windshield Wiper
[10.1991 - 04.2001] GS131,JZS133,LS130..RHD..(4FC,4H,5F)..GEN |
85940-30170 |
— | ||
|
85940
|
85940
85940-30180 Relay Assy, Windshield Wiper[10.1991 - 12.1995] LS130..RHD..4F; LS130..4H W(*EL) |
85940-30180 |
US $205.30 |
||
|
85980
|
85980
85980-30360 Relay Assy, Door Control[10.1991 - 12.1995] LS130..4H |
85980-30360 |
US $279.55 |
||
|
85999D
|
85999D
85999-30250 Bracket, Relay, No.2[10.1991 - 04.2001] GS131,JZS133,LS130..RHD NO.1 J/B UPPER |
85999-30250 |
US $12.38 |
||
|
85999D
|
85999D
85999-30261 Bracket, Relay, No.2[10.1991 - 04.2001] GS131,JZS133,LS130..RHD NO.1 J/B LOWER |
85999-30261 |
US $6.99 |
||
|
85999R
|
85999R
85999-30281 Bracket, Relay, No.2[10.1991 - 04.2001] GS131,JZS133,LS130..RHD |
85999-30281 |
US $68.43 |
||
|
88630G
|
88630G
90987-02009 Relay Assy[10.1991 - 12.1995] LS130..RHD |
90987-02009 |
from US $32.51 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906061
|
9011906061
90119-06061 New Genuine Part |
90119-06061 |
US $0.87 |
||
|
9162140620
|
9162140620
91621-40620 Bolt |
91621-40620 |
from US $1.92 |
||
|
9163260612
|
9163260612
91632-60612 BOLT WWASHER |
91632-60612 |
US $1.46 |
||
| replacement | |||||
|
9163260612
|
9163260612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
