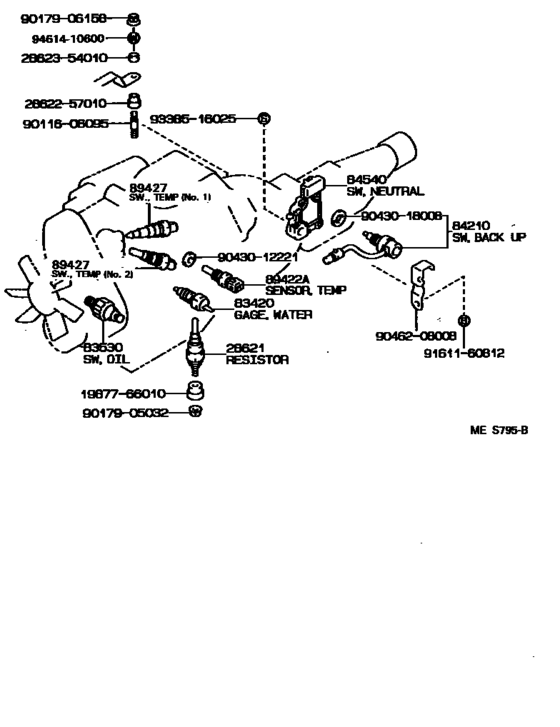

Switch & Relay & Computer ([10.1991 - 09.1994] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9110-9409)LS136) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1994
- Sales region
- Japan
- Frame
- LS136
- grade
- DLX
- body
- V
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 10.1991
- To
- 09.1994
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-54080
Resistor, Glow Plug
[10.1991 - 09.1994] 2LTHE,2L..LS13# |
28621-54080 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 11.1992] LS130,136;GS130,LS131..SALEX ＤＥＮＳＯ |
83420-16040 |
from US $30.71 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1991 - 12.1991] GS13#,JZS13#,LS13# |
83420-20020 |
from US $30.62 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[08.1992 - 11.1992] LS130,136;GS130,LS131..SALEX ＹＡＺＡＫＩ |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 11.1992] LS130,136;GS130,LS131..SALEX ＹＡＺＡＫＩ |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[10.1991 - 03.1998] LS13# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[10.1991 - 03.1998] LS13# |
83530-60030 |
from US $26.54 |
||
|
84210
|
84210
84210-30060 Switch Assy, Back-Up Lamp[10.1991 -] GS130,136,LS136,YS130..MTM |
84210-30060 |
from US $38.08 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[10.1991 - 09.1994] LS136 |
89422-20010 |
from US $36.78 |
||
|
89427
|
89427
89428-30110
Switch, Temperature Detect
[10.1991 - 09.1994] LS136 ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．１ |
89428-30110 |
— | ||
|
89427
|
89427
89428-30130
Switch, Temperature Detect
[10.1991 - 09.1994] LS136 ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．２ |
89428-30130 |
— | ||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
