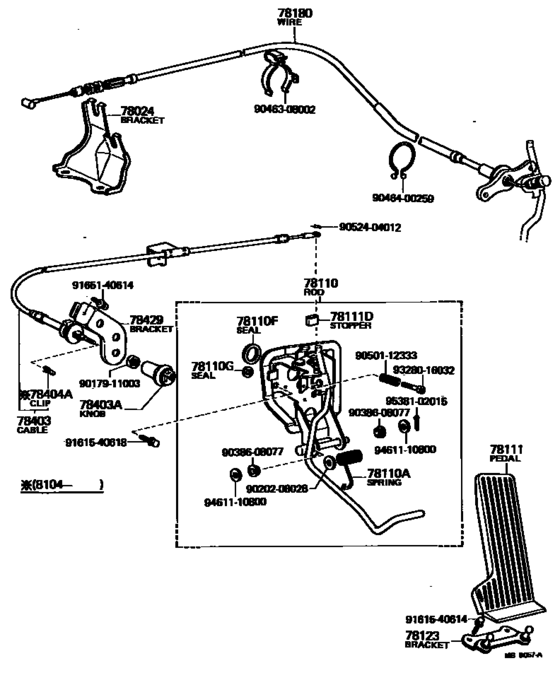

Accelerator Link ([12.1979 - ] (7912- )MS110..LPG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS110
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-30010 Bracket Sub-Assy, Accelerator Control Cable[09.1979 - 07.1983] MS110,117..CBR,LPG |
78024-30010 |
US $35.53 |
||
|
78110
|
78110
78120-30260
Rod Assy, Accelerator Pedal
[09.1979 - 07.1983] GS110,LS11#,MS110,112..ATM COLD SPEC |
78120-30260 |
— | ||
|
78110
|
78110
78120-30320
Rod Assy, Accelerator Pedal
[02.1980 - 07.1983] MS110..ATM..LPG |
78120-30320 |
— | ||
|
78110A
|
78110A
90508-18016 Spring, Torsion (For Accelerator Link)[09.1979 - 07.1983] GS110,LS110,117,MS110,112..ATM |
90508-18016 |
US $3.64 |
||
|
78110A
|
78110A
90508-23026 Spring (For Accelerator Pedal Rod)[09.1979 - 07.1983] LS110,117..MTM; MS110,RS110..MTM..LPG; GS110,LS11#,MS110,112..ATM COLD SPEC |
90508-23026 |
US $3.93 |
||
|
78110F
|
78110F
78129-30050
Seal, No.1 (For Accelerator Pedal Rod)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78129-30050 |
— | ||
|
78110G
|
78110G
78139-30050
Seal, No.2 (For Accelerator Pedal Rod)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78139-30050 |
— | ||
|
78111
|
78111
78111-12100 Pedal, Accelerator[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 COLD SPEC |
78111-12100 |
from US $18.54 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78111-30081 |
US $10.13 |
||
|
78111D
|
78111D
78119-30050 Stopper (For Accelerator Pedal)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78119-30050 |
US $2.77 |
||
|
78123
|
78123
78114-30040 Bracket, Accelerator Pedal SupportACCELERATOR PEDAL SUPPORT [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
78114-30040 |
US $11.36 |
||
|
78180
|
78180
78180-30180 Wire Assy, Accelerator[09.1979 - 07.1983] MS110..LPG |
78180-30180 |
US $52.42 |
||
|
78403
|
78403
78401-30051 Cable Sub-Assy, Throttle Control[04.1981 - 07.1983] MS110,RS110..LPG |
78401-30051 |
US $30.87 |
||
|
78403A
|
78403A
78411-30031 Knob, Throttle Control[04.1981 - 07.1983] MS110,RS110..LPG |
78411-30031 |
US $14.71 |
||
|
78404A
|
78404A
78312-12010
Clip (For Choke Cable)
[04.1981 - 07.1983] MS110,RS110..LPG |
78312-12010 |
— | ||
|
78429
|
78429
78371-30030
Bracket, Throttle Rod
[09.1979 - 07.1983] LS110,117,MS110,RS110..(BTP,DLX,SDX,STD)..(DSL,LPG) |
78371-30030 |
— | ||
|
9017911003
|
9017911003
90179-11003 New Genuine Part |
90179-11003 |
US $5.39 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9046308002
|
9046308002
90463-08002 New Genuine Part |
90463-08002 |
US $6.99 |
||
|
9046400259
|
9046400259
90464-00259 New Genuine Part |
90464-00259 |
US $2.77 |
||
| replacement | |||||
|
9046400259
|
9046400259
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9050112333
|
9050112333
90501-12333 Spring, Compression (For Throttle Valve) |
90501-12333 |
US $2.18 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161540618
|
9161540618
91615-40618
New Genuine Part
|
91615-40618 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9328016032
|
9328016032
93280-16032 New Genuine Part |
93280-16032 |
US $2.33 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
