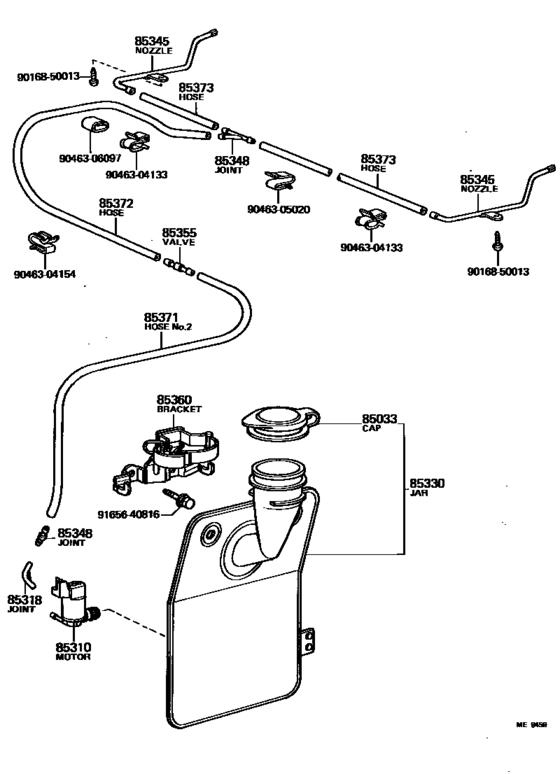

Windshield Washer ([10.1980 - 08.1981] (8010-8108)TBO) Diagram Toyota CROWN/ MAJESTA
- Year
- 1980 - 1983
- Sales region
- Japan
- Frame
- MS110
- grade
- SAL
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 10.1980
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-16010
Cap Assy, Windshield Washer
[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 |
85332-16010 |
— | ||
|
85033
|
85033
85332-30070
Cap Assy, Windshield Washer
[10.1980 - 08.1981] MS110..TBO |
85332-30070 |
— | ||
|
85310
|
85310
85310-20100
Motor And Pump Assy, Windshield Washer
[09.1979 - 08.1981] LS11#,MS11#,RS110 |
85310-20100 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[09.1979 - 08.1981] LS11#,MS11#,RS110 |
85310-22080 |
from US $49.97 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1981 - 08.1982] GS110,LS11#,MS11#,RS110 |
85310-22080 |
from US $49.97 |
||
|
85318
|
85318
85355-20070
Joint, Windshield Washer Motor
[10.1980 - 08.1981] MS110..TBO |
85355-20070 |
— | ||
| replacement | |||||
|
85318
|
85318
85355-14481 Joint, Windshield Washer Elbow, No.1[10.1980 - 08.1981] MS110..TBO |
85355-14481 |
US $0.98 |
||
|
85330
|
85330
85330-30140
Jar Assy, Windshield Washer
[10.1980 - 08.1981] MS110..TBO |
85330-30140 |
— | ||
|
85330
|
85330
85330-30150
Jar Assy, Windshield Washer
[08.1981 - 07.1983] GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
85330-30150 |
— | ||
|
85345
|
85345
85345-30060
Nozzle, Windshield Washer
[09.1979 - 08.1981] LS11#,MS11#,RS110 RH |
85345-30060 |
— | ||
|
85345
|
85345
85345-30070
Nozzle, Windshield Washer
[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 RH |
85345-30070 |
— | ||
|
85345
|
85345
85346-30060
Nozzle, Windshield Washer
[09.1979 - 08.1981] LS11#,MS11#,RS110 LH |
85346-30060 |
— | ||
|
85345
|
85345
85346-30070
Nozzle, Windshield Washer
[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 LH |
85346-30070 |
— | ||
|
85348
|
85348
85355-14010
Joint, Windshield Washer Hose, No.1
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 3 WAY |
85355-14010 |
— | ||
| replacement | |||||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 3 WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[08.1981 - 07.1983] GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC 2 WAY |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1981 - 07.1983] GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC 2 WAY |
85349-89122 |
from US $1.25 |
||
|
85355
|
85355
85031-30010 Valve Sub-Assy, Washer[09.1979 - 08.1981] LS11#,MS11#,RS110 |
85031-30010 |
from US $1.54 |
||
|
85360
|
85360
85036-30040
Bracket Assy, Windshield Washer
[10.1980 - 08.1981] MS110..TBO |
85036-30040 |
— | ||
|
85360
|
85360
85036-30050
Bracket Assy, Windshield Washer
[08.1981 - 07.1983] GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
85036-30050 |
— | ||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[09.1979 - 08.1981] LS11#,MS11#,RS110 ＊Ｈ，Ｌ＝４００,ＮＯ．２; LS11#,MS11#,RS110..CBR,DSL,EFI,LPG ＊Ｈ，Ｌ＝４００,ＮＯ．１ |
90099-33299 |
US $4.37 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1981 - 07.1983] GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC ＊Ｈ，Ｌ＝２２０ |
90446-06013 |
US $0.70 |
||
|
85372
|
85372
90099-33368
Hose, Windshield Washer (From Motor To Joint)
[08.1981 - 07.1983] GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC ＊Ｈ，Ｌ＝９５０ |
90099-33368 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1981 - 07.1983] GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC ＊Ｈ，Ｌ＝９５０ |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
90446-07005
Hose, Windshield Washer (From Joint To Joint), No.1
[09.1979 - 08.1981] LS11#,MS11#,RS110 ＊Ｈ，L＝１２００ |
90446-07005 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1979 - 08.1981] LS11#,MS11#,RS110 ＊Ｈ，L＝１２００ |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[09.1979 - 08.1981] LS11#,MS11#,RS110 ＊Ｈ，Ｌ＝８０ |
90446-06013 |
US $0.70 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9046304133
|
9046304133
90463-04133 New Genuine Part |
90463-04133 |
US $2.77 |
||
|
9046304154
|
9046304154
90463-04154 New Genuine Part |
90463-04154 |
US $2.77 |
||
|
9046305020
|
9046305020
90463-05020 New Genuine Part |
90463-05020 |
US $1.89 |
||
|
9046306097
|
9046306097
90463-06097
New Genuine Part
|
90463-06097 |
— | ||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
