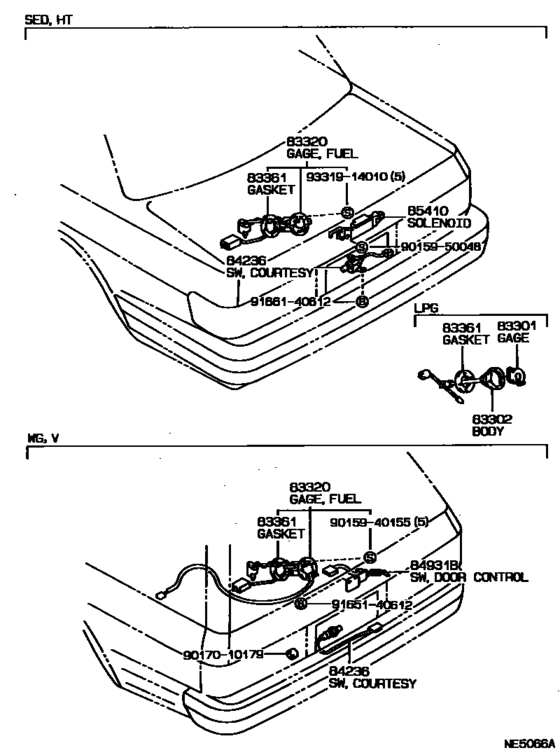

Switch & Relay & Computer ([09.1987 - ] (8709- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- MS130
- grade
- DLX
- body
- SED
- ENGINE
- MP
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Body Shape
- NOB
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83301
|
83301
83301-20016 Gage Sub-Assy, Fuel Sender (For Lpg Tank)[09.1987 - 10.1991] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
83301-20016 |
from US $68.87 |
||
|
83302
|
83302
83302-20020 Body Sub-Assy, Fuel Sender Gage[09.1987 - 08.1989] MS130,YS130 |
83302-20020 |
US $241.70 |
||
|
83361
|
83361
90430-42255 Gasket(For Fuel Tank)[09.1987 - 10.1991] GS130,MS130,YS130..LPEFI,LPG,TWLPG |
90430-42255 |
US $3.20 |
||
|
84236
|
84236
84231-30070 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[09.1987 - 08.1989] LS130..4H..STD; GS131,MS13#,YS130;GS130,LS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE,SSL) |
84231-30070 |
US $14.56 |
||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $1.92 |
||
|
9015950048
|
9015950048
90159-50048 New Genuine Part |
90159-50048 |
US $1.16 |
||
|
9017010179
|
9017010179
90170-10179 New Genuine Part |
90170-10179 |
US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.08 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
