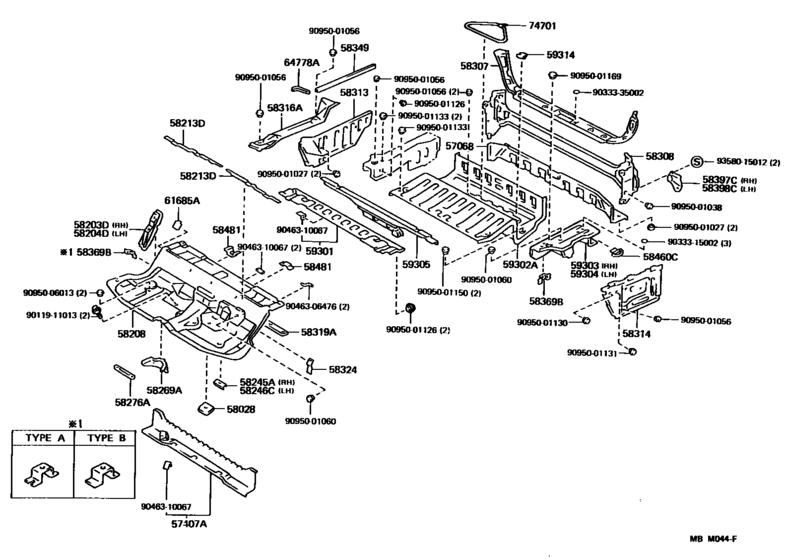

Floor Pan & Lower Back Panel ([09.1987 - 08.1989] (8709-8908)WG) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- MS132
- grade
- SAL
- body
- WG
- ENGINE
- 5M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 09.1988
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57068
|
57068
57068-91714 Member Sub-Assy, Rear Floor Rear Cross, Inner[09.1987 - 10.1991] MS132..WG |
57068-91714 |
US $151.42 |
||
|
57407A
|
57407A
57407-91704 Member Sub-Assy, Center Floor Cross[09.1987 - 10.1991] MS132..WG |
57407-91704 |
US $151.42 |
||
|
58028
|
58028
58028-30090 Reinforcement Sub-Assy, Seat Belt Anchor, No.2[09.1987 - 10.1991] LS130,MS132,YS132 |
58028-30090 |
US $18.93 |
||
|
58203D
|
58203D
58203-91702 Bracket Sub-Assy, Rear Seat Hinge, Outer Rh[09.1987 - 10.1991] MS132..WG |
58203-91702 |
US $29.12 |
||
|
58204D
|
58204D
58204-91704 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[09.1987 - 10.1991] MS132..WG |
58204-91704 |
US $29.12 |
||
|
58208
|
58208
58211-30160 Pan, Center Floor[09.1987 - 10.1991] LS130,MS132,YS132 |
58211-30160 |
US $384.38 |
||
|
58213D
|
58213D
58213-30040 Reinforcement, Center Floor Panel[09.1987 - 10.1991] LS130,MS132,YS132 RH |
58213-30040 |
US $15.14 |
||
|
58213D
|
58213D
58214-30020 Reinforcement, Center Floor Panel[09.1987 - 10.1991] LS130,MS132,YS132 LH |
58214-30020 |
US $13.83 |
||
|
58245A
|
58245A
58245-91701 Bracket, Rear Seat Hinge, Center No.1[09.1987 - 10.1991] MS132..WG |
58245-91701 |
US $8.30 |
||
|
58246C
|
58246C
58246-91701 Bracket, Rear Seat Hinge, Center No.2[09.1987 - 05.1991] MS132..WG |
58246-91701 |
US $8.30 |
||
| replacement | |||||
|
58246C
|
58246C
58246-31010 Bracket, Rear Seat Hinge, Center No.2[09.1987 - 05.1991] MS132..WG |
58246-31010 |
US $8.30 |
||
|
58269A
|
58269A
58269-30100 Bracket, Parking Brake Cable Guide, No.3[09.1987 - 10.1991] MS132..LHD;MS132..RHD..5F;LS130,YS132..4F |
58269-30100 |
US $18.78 |
||
|
58276A
|
58276A
58276-30010 Bracket, Parking Brake Cable Guide, No.2 Lh[09.1987 - 10.1991] LS130,MS132,YS132 |
58276-30010 |
US $8.59 |
||
|
58307
|
58307
58307-91708 Panel Sub-Assy, Body Lower Back[09.1987 - 10.1991] MS132..WG |
58307-91708 |
US $183.46 |
||
|
58308
|
58308
58308-91706 Panel Sub-Assy, Body Lower Back, Inner[09.1987 - 05.1991] MS132..WG |
58308-91706 |
US $256.26 |
||
| replacement | |||||
|
58308
|
58308
58308-31020 Panel Sub-Assy, Body Lower Back, Inner[09.1987 - 05.1991] MS132..WG |
58308-31020 |
US $254.80 |
||
|
58313
|
58313
58313-91704 Panel, Rear Floor Side, Rh[09.1987 - 05.1991] MS132..WG |
58313-91704 |
US $192.19 |
||
| replacement | |||||
|
58313
|
58313
58313-31010 Panel, Rear Floor Side, Rh[09.1987 - 05.1991] MS132..WG |
58313-31010 |
US $190.74 |
||
|
58314
|
58314
58314-91706 Panel, Rear Floor Side, Lh[09.1987 - 10.1991] MS132..WG |
58314-91706 |
US $70.47 |
||
|
58316A
|
58316A
58316-91702 Extension, Rear Floor Side Panel, Rear Rh[09.1987 - 10.1991] MS132..WG |
58316-91702 |
US $327.60 |
||
|
58319A
|
58319A
58319-91603 Plate, Rear Floor Panel, Front[09.1987 - 10.1991] MS132..WG |
58319-91603 |
US $8.88 |
||
|
58324
|
58324
47351-30230 Bracket, Flexible Hose[09.1987 - 10.1991] LS130,MS132,YS132 |
47351-30230 |
US $9.03 |
||
|
58349
|
58349
58349-91703 Cushion, Rear Floor Side[09.1987 - 10.1991] MS132..WG |
58349-91703 |
US $11.07 |
||
|
58369B
|
58369B
58369-30040 Bracket, Fuel Tube, No.3[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 TYPE A |
58369-30040 |
US $3.93 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 TYPE B |
58369-32010 |
US $3.32 |
||
|
58397C
|
58397C
58397-91704 Cover, Body Lower Back, Rh[09.1987 - 05.1991] MS132..WG |
58397-91704 |
US $10.92 |
||
| replacement | |||||
|
58397C
|
58397C
58397-31010 Cover, Body Lower Back, Rh[09.1987 - 05.1991] MS132..WG |
58397-31010 |
US $10.92 |
||
|
58398C
|
58398C
58398-91704 Cover, Body Lower Back, Lh[09.1987 - 05.1991] MS132..WG |
58398-91704 |
US $10.92 |
||
| replacement | |||||
|
58398C
|
58398C
58398-31010 Cover, Body Lower Back, Lh[09.1987 - 05.1991] MS132..WG |
58398-31010 |
US $10.92 |
||
|
58460C
|
58460C
58460-91255 Striker, Luggage Hold Belt[09.1987 - 10.1991] MS132..WG |
58460-91255 |
US $8.88 |
||
|
58481
|
58481
58481-91701
Plate, Bleether Tube Catch
[09.1987 - 08.1990] MS132..WG |
58481-91701 |
— | ||
| replacement | |||||
|
58481
|
58481
58369-31010 Bracket, Fuel Tube, No.3[09.1987 - 08.1990] MS132..WG |
58369-31010 |
US $10.63 |
||
|
59301
|
59301
59301-91790 Panel Sub-Assy, 3Rd Seat Floor, Front[09.1987 - 08.1989] MS132..WG |
59301-91790 |
US $251.89 |
||
| replacement | |||||
|
59301
|
59301
59301-31902 Panel Sub-Assy, 3Rd Seat Floor[09.1987 - 08.1989] MS132..WG |
59301-31902 |
US $251.89 |
||
|
59302A
|
59302A
59302-91707 Panel Sub-Assy, 3Rd Seat Floor, Rr[09.1987 - 05.1991] MS132..WG W(THIRD SEAT) |
59302-91707 |
US $502.32 |
||
| replacement | |||||
|
59302A
|
59302A
59302-31010 Panel Sub-Assy, 3Rd Seat Floor, Rr[09.1987 - 05.1991] MS132..WG W(THIRD SEAT) |
59302-31010 |
US $499.41 |
||
|
59302A
|
59302A
59302-91708 Panel Sub-Assy, 3Rd Seat Floor, Rr[09.1987 - 08.1989] MS132..WG W(REAR AIR CONDITIONER) |
59302-91708 |
US $502.32 |
||
| replacement | |||||
|
59302A
|
59302A
59302-31020 Panel Sub-Assy, 3Rd Seat Floor, Rr[09.1987 - 08.1989] MS132..WG W(REAR AIR CONDITIONER) |
59302-31020 |
US $500.86 |
||
|
59303
|
59303
59303-91790 Panel Sub-Assy, Rear Floor Side, Rh[09.1987 - 05.1991] MS132..WG W(THIRD SEAT) |
59303-91790 |
US $463.01 |
||
| replacement | |||||
|
59303
|
59303
59303-31900 Panel Sub-Assy, 3Rd Seat Floor Side, Rh[09.1987 - 05.1991] MS132..WG W(THIRD SEAT) |
59303-31900 |
US $457.18 |
||
|
59303
|
59303
59303-91791 Panel Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [09.1987 - 08.1989] MS132..WG W(REAR AIR CONDITIONER) |
59303-91791 |
US $410.59 |
||
| replacement | |||||
|
59303
|
59303
59303-31901 Panel Sub-Assy, Rear Floor Side, Rh[09.1987 - 08.1989] MS132..WG W(REAR AIR CONDITIONER) |
59303-31901 |
US $407.68 |
||
|
59304
|
59304
59304-91795 Panel Sub-Assy, 3Rd Seat Floor Side, Lh[09.1987 - 05.1991] MS132..WG W(REAR AIR CONDITIONER) & W(THIRD SEAT) |
59304-91795 |
US $463.01 |
||
| replacement | |||||
|
59304
|
59304
59304-31900 Panel Sub-Assy, 3Rd Seat Floor Side, Lh[09.1987 - 05.1991] MS132..WG W(REAR AIR CONDITIONER) & W(THIRD SEAT) |
59304-31900 |
US $460.10 |
||
|
59304
|
59304
59304-91796 Panel Sub-Assy, 3Rd Seat Floor Side, Lh[09.1987 - 05.1991] MS132..WG W(THIRD SEAT) |
59304-91796 |
US $463.01 |
||
| replacement | |||||
|
59304
|
59304
59304-31901 Panel Sub-Assy, 3Rd Seat Floor Side, Lh[09.1987 - 05.1991] MS132..WG W(THIRD SEAT) |
59304-31901 |
US $460.10 |
||
|
59304
|
59304
59304-91797
Panel Sub-Assy, 3Rd Seat Floor Side, Lh
[12.1987 - 05.1991] MS132..WG |
59304-91797 |
— | ||
| replacement | |||||
|
59304
|
59304
59304-31902
Panel Sub-Assy, 3Rd Seat Floor Side, Lh
[12.1987 - 05.1991] MS132..WG |
59304-31902 |
— | ||
|
59304
|
59304
59304-91798
Panel Sub-Assy, 3Rd Seat Floor Side, Lh
[12.1987 - 08.1989] MS132..WG W(REAR AIR CONDITIONER) & W/O(THIRD SEAT) |
59304-91798 |
— | ||
| replacement | |||||
|
59304
|
59304
59304-31903
Panel Sub-Assy, 3Rd Seat Floor Side, Lh
[12.1987 - 08.1989] MS132..WG W(REAR AIR CONDITIONER) & W/O(THIRD SEAT) |
59304-31903 |
— | ||
|
59305
|
59305
59305-91702 Member Sub-Assy, 3Rd Seat Floor[09.1987 - 05.1991] MS132..WG |
59305-91702 |
US $135.41 |
||
| replacement | |||||
|
59305
|
59305
59305-31010 Member Sub-Assy, 3Rd Seat Floor Cross[09.1987 - 05.1991] MS132..WG |
59305-31010 |
US $133.95 |
||
|
59314
|
59314
59314-91701 Cover, 3Rd Seat Floor Hole[09.1987 - 10.1991] MS132..WG |
59314-91701 |
US $6.84 |
||
|
61685A
|
61685A
61685-91602 Bracket, Rear Seat Back Mounting[09.1987 - 10.1991] MS132..WG |
61685-91602 |
US $2.77 |
||
|
64778A
|
64778A
64778-91702 Protector, Spare WheelSPARE WHEEL [09.1987 - 10.1991] MS132..WG |
64778-91702 |
US $4.37 |
||
|
74701
|
74701
74701-95601 Clamp Sub-Assy, Tool Bag[09.1987 - 10.1991] MS132..WG |
74701-95601 |
US $19.66 |
||
| replacement | |||||
|
74701
|
74701
58705-27010 Band Sub-Assy, Tool Bag[09.1987 - 10.1991] MS132..WG |
58705-27010 |
US $19.39 |
||
|
9011911013
|
9011911013
90119-11013 New Genuine Part |
90119-11013 |
US $2.04 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9046306476
|
9046306476
90463-06476
Clamp, No.2(For Rear Floor)
|
90463-06476 |
— | ||
|
9046310067
|
9046310067
90463-10067 Clamp, No.1(For Rear Floor) |
90463-10067 |
US $2.62 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001130
|
9095001130
90950-01130 Plug, Hole(For Rear Door Panel) |
90950-01130 |
US $5.24 |
||
| replacement | |||||
|
9095001130
|
9095001130
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001131
|
9095001131
90950-01131
PLUG HOLE
|
90950-01131 |
— | ||
| replacement | |||||
|
9095001131
|
9095001131
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.31 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.63 |
||
|
9095001150
|
9095001150
90950-01150
Cover, Front Floor Hole
|
90950-01150 |
— | ||
| replacement | |||||
|
9095001150
|
9095001150
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001169
|
9095001169
90950-01169 Plug, Hole, No.4(For Dash Panel) |
90950-01169 |
US $7.72 |
||
|
9095006013
|
9095006013
90950-06013 New Genuine Part |
90950-06013 |
US $1.92 |
||
|
9358015012
|
9358015012
93580-15012 New Genuine Part |
93580-15012 |
US $1.31 |
||
| replacement | |||||
|
9358015012
|
9358015012
90099-00324 New Genuine Part |
90099-00324 |
US $1.46 |
||
